QGL32200 - Square D 200 Amp 240V 3 Pole Thermal Magnetic Molded Case Circuit Breaker

QGL32200

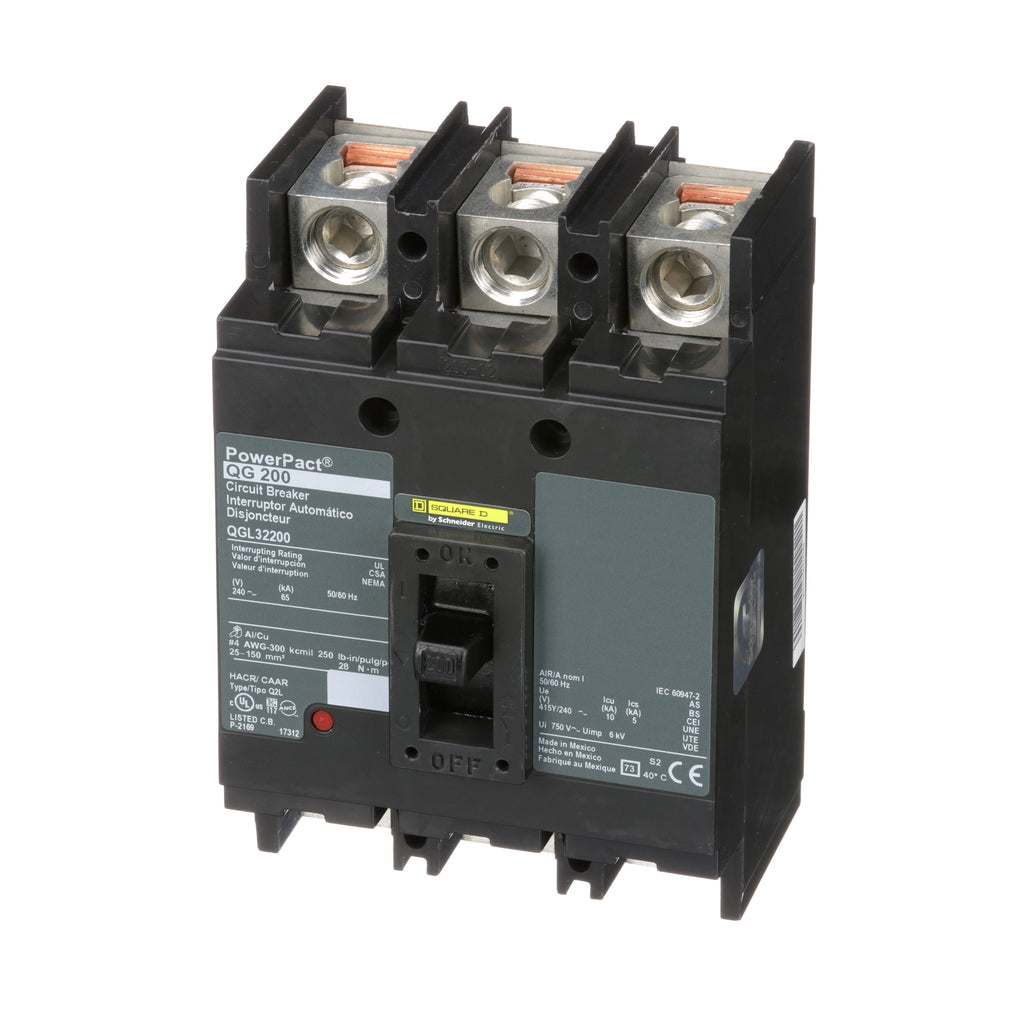

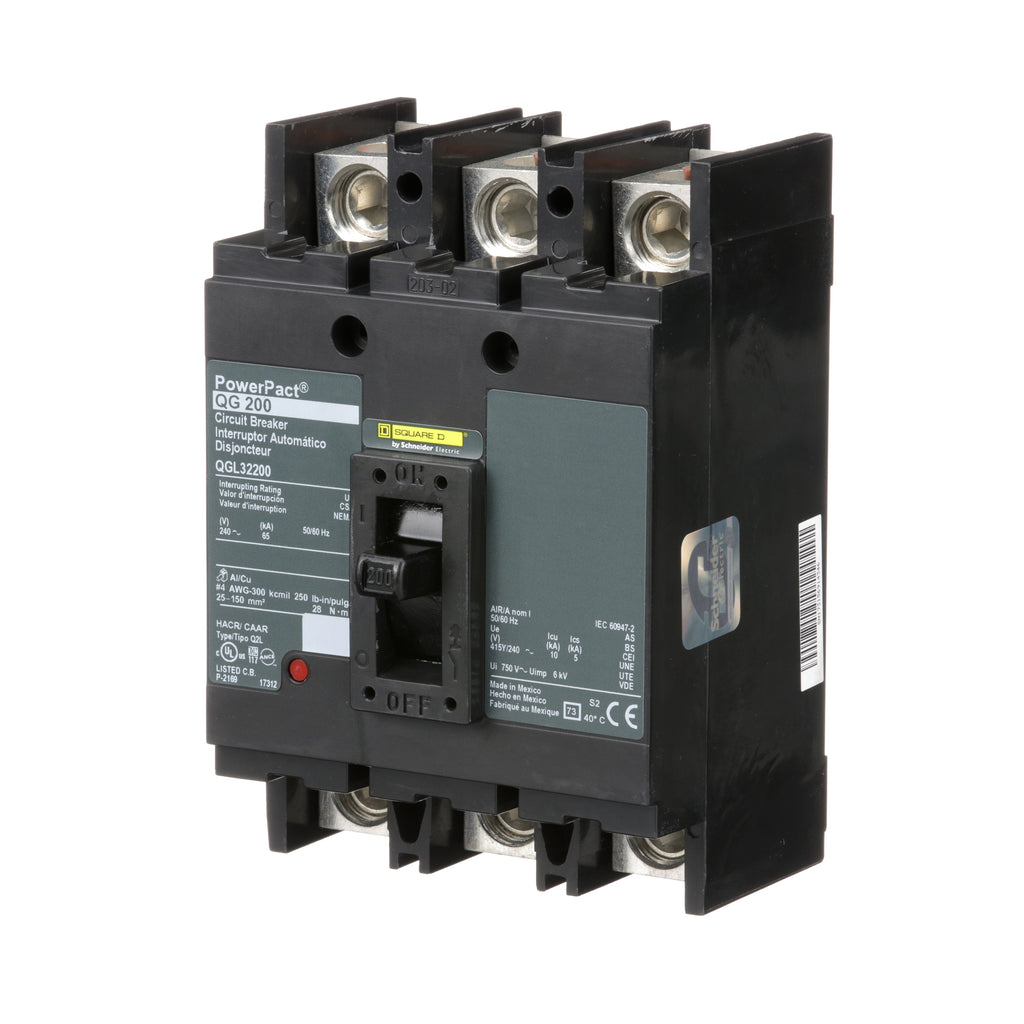

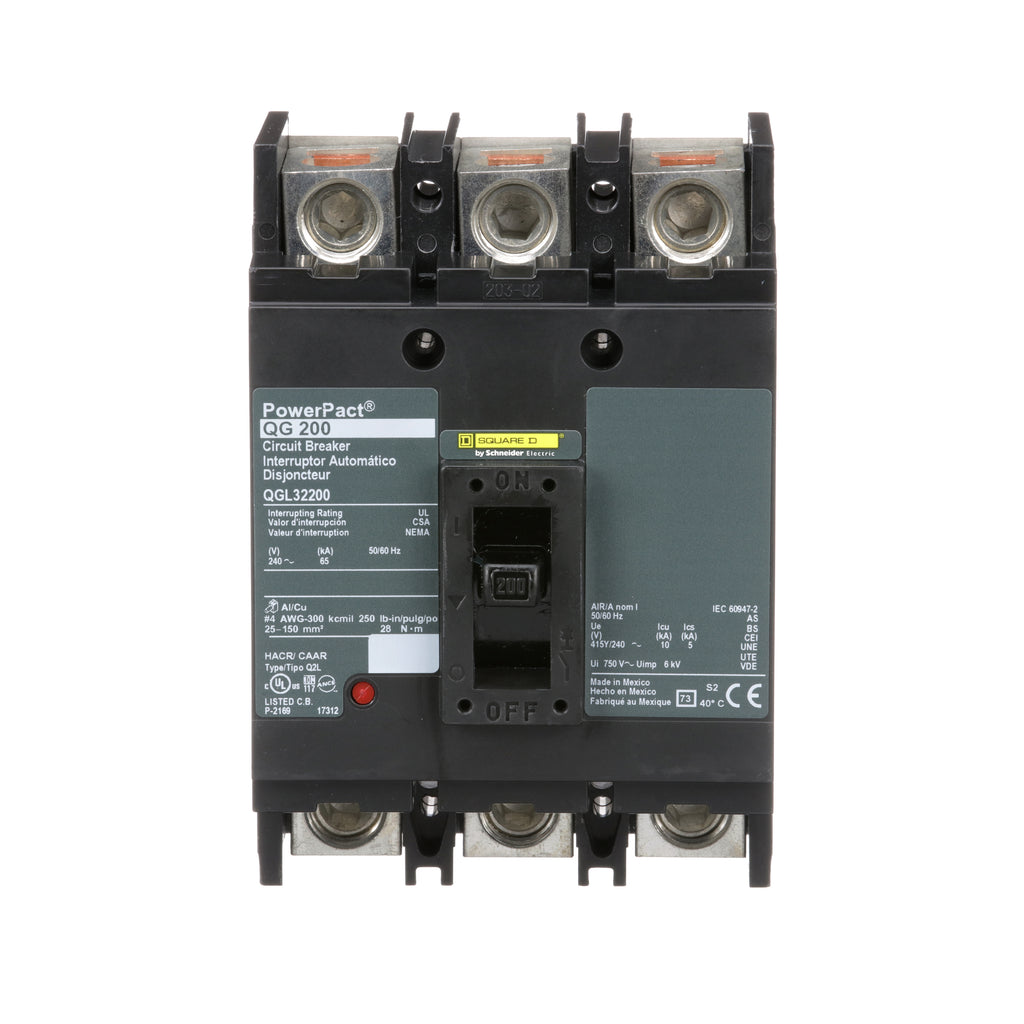

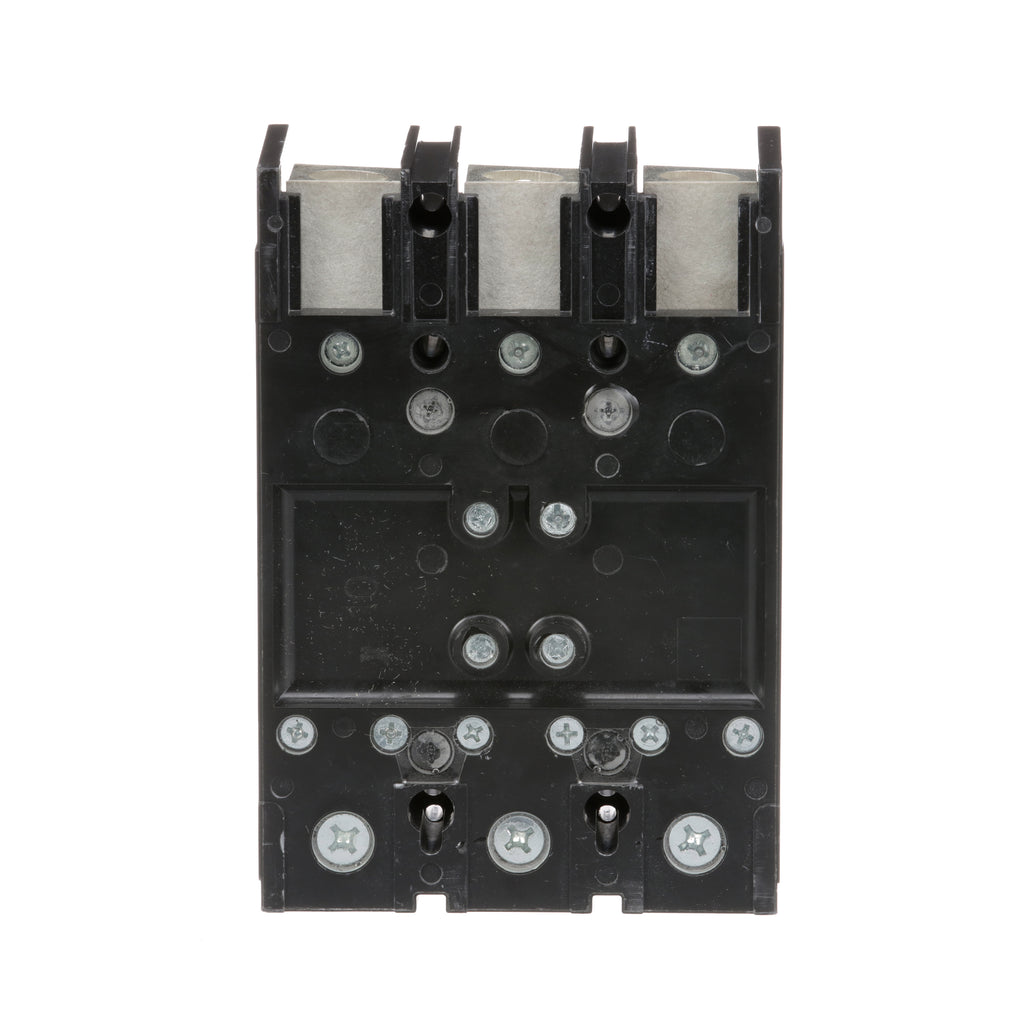

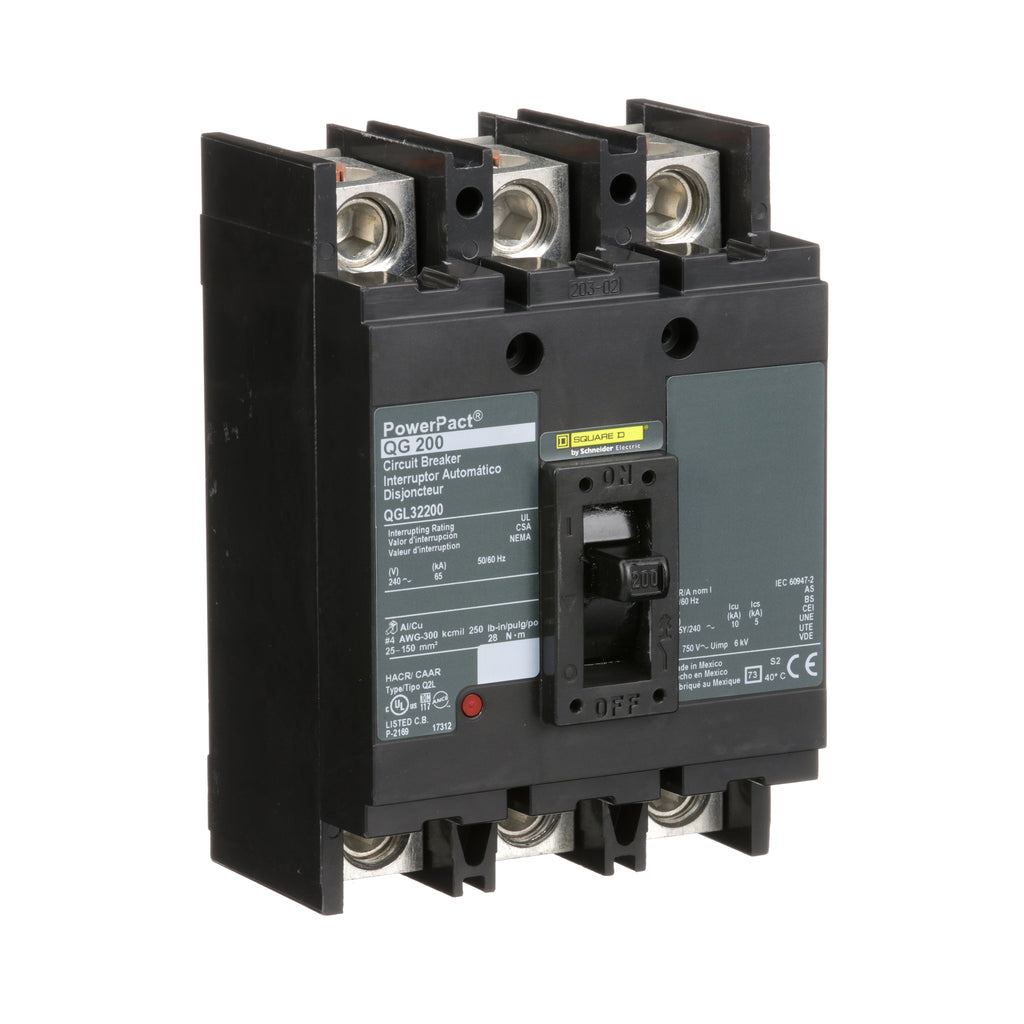

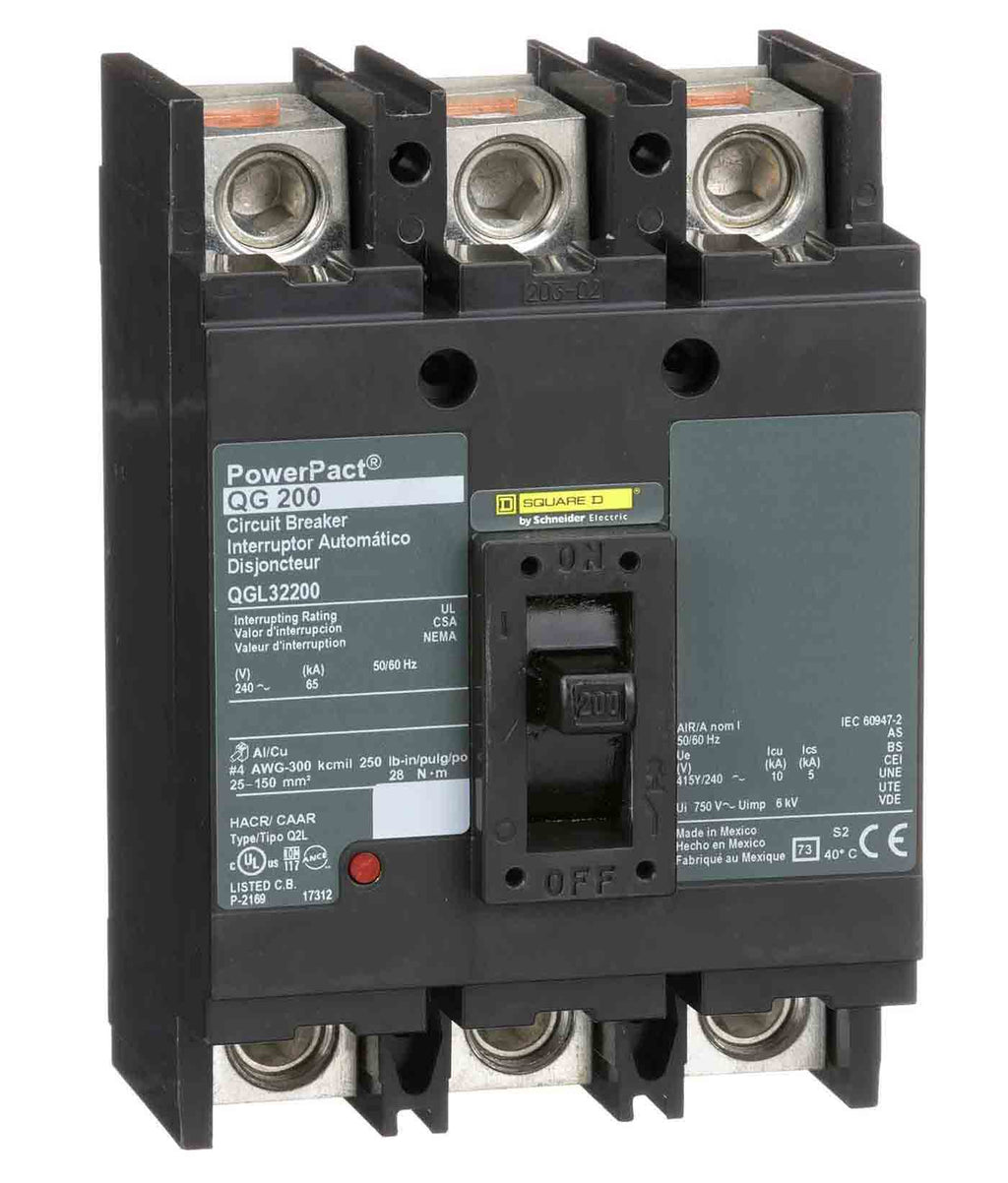

QGL32200 is a Square D 3 Pole thermal magnetic molded case circuit breaker rated for 200 Amps and 240VAC voltage. It features a unit mounting type and is designed for power distribution applications.This circuit breaker offers a 65kA interrupting rating with long time and instantaneous trip functions for reliable protection. It supports line and load side lug connections and accommodates wire gauges from AWG 4 to 300KCmil aluminum or copper. The breaker complies with UL, CSA, IEC, NOM certifications and RoHS standards, ensuring safety and environmental compliance.

• Series: QGL
• Amperage: 200 A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Unit
• Interrupting Rating: 65 kA
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Side Lug
• Wire Gauge: AWG 4 to 300KCmil Aluminum/Copper
• Certifications: UL, CSA, IEC, NOM
• Standards: RoHS
• Temperature Rating: -13 to 158°F (-25 to 70°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGL32200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QGL
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901705642
• GTIN : 00785901705642
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.7
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4 to 300KCmil Aluminum/Copper
