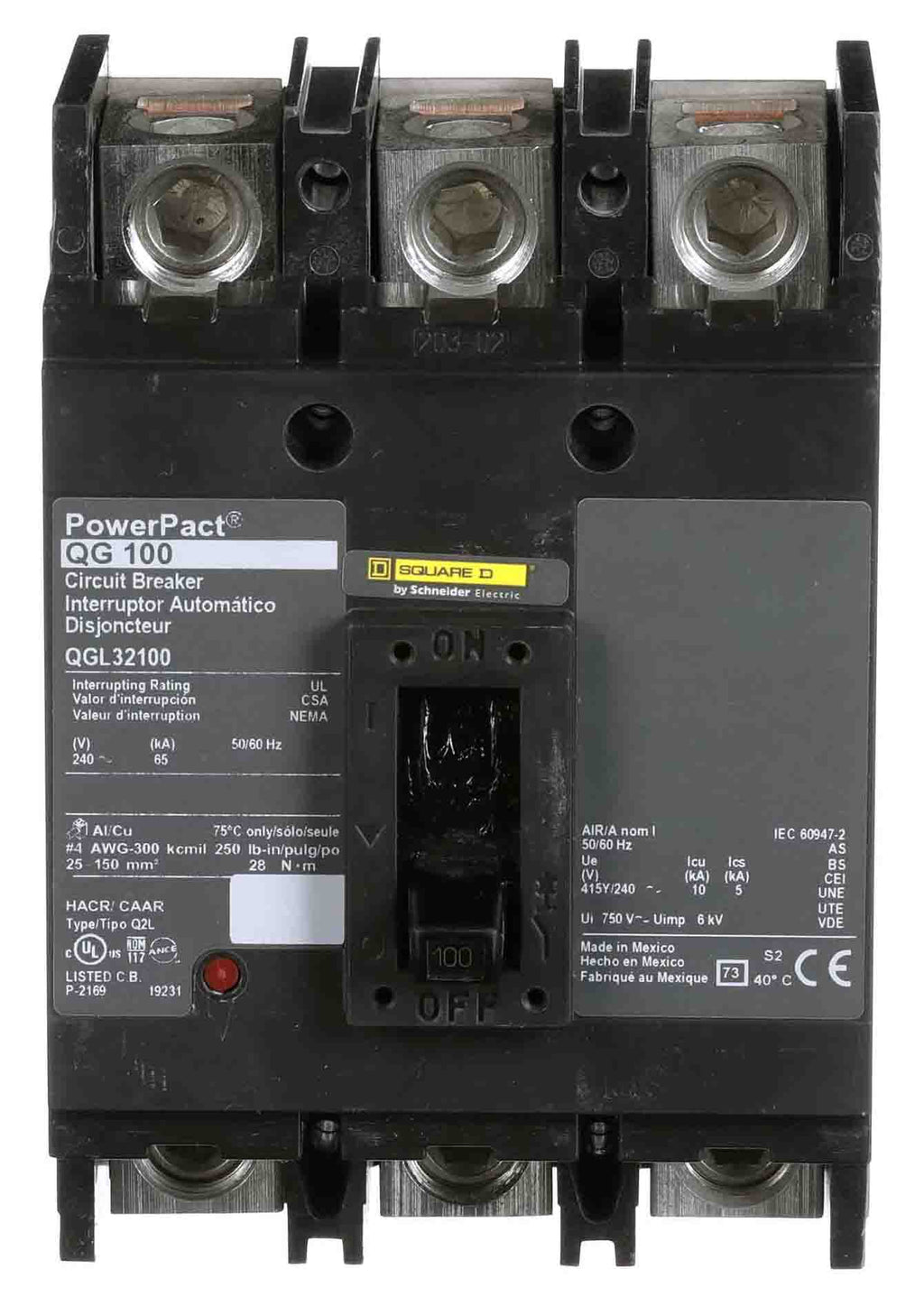

QGL32100 - Square D 100 Amp 240V 3 Pole Molded Case Circuit Breaker Q Frame Thermal Magnetic

QGL32100

QGL32100 is a Square D 3 pole molded case circuit breaker rated for 100 amps and 240 volts AC, featuring thermal magnetic trip technology.This circuit breaker is designed with a Q frame type and unit mount lug mounting. It provides reliable protection with a thermal magnetic trip unit and an interrupt rating of 65 kA at 240 VAC (UL/CSA). It is UL, CSA, and CE certified, suitable for industrial and commercial applications requiring robust circuit protection.

• Amperage: 100 Amps
• Voltage: 240 VAC
• Poles: 3
• Frame Type: Q Frame
• Mounting Type: Unit Mount Lug
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 65 kA at 240 VAC (UL/CSA)
• Certifications: UL, CSA, CE
• Type: Molded Case Circuit Breaker
• Dimensions: Approx. 4.5" W x 3.93" D x 6.47" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGL32100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QGL
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901603504
• GTIN : 00785901603504
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.74
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4 to 300KCmil
