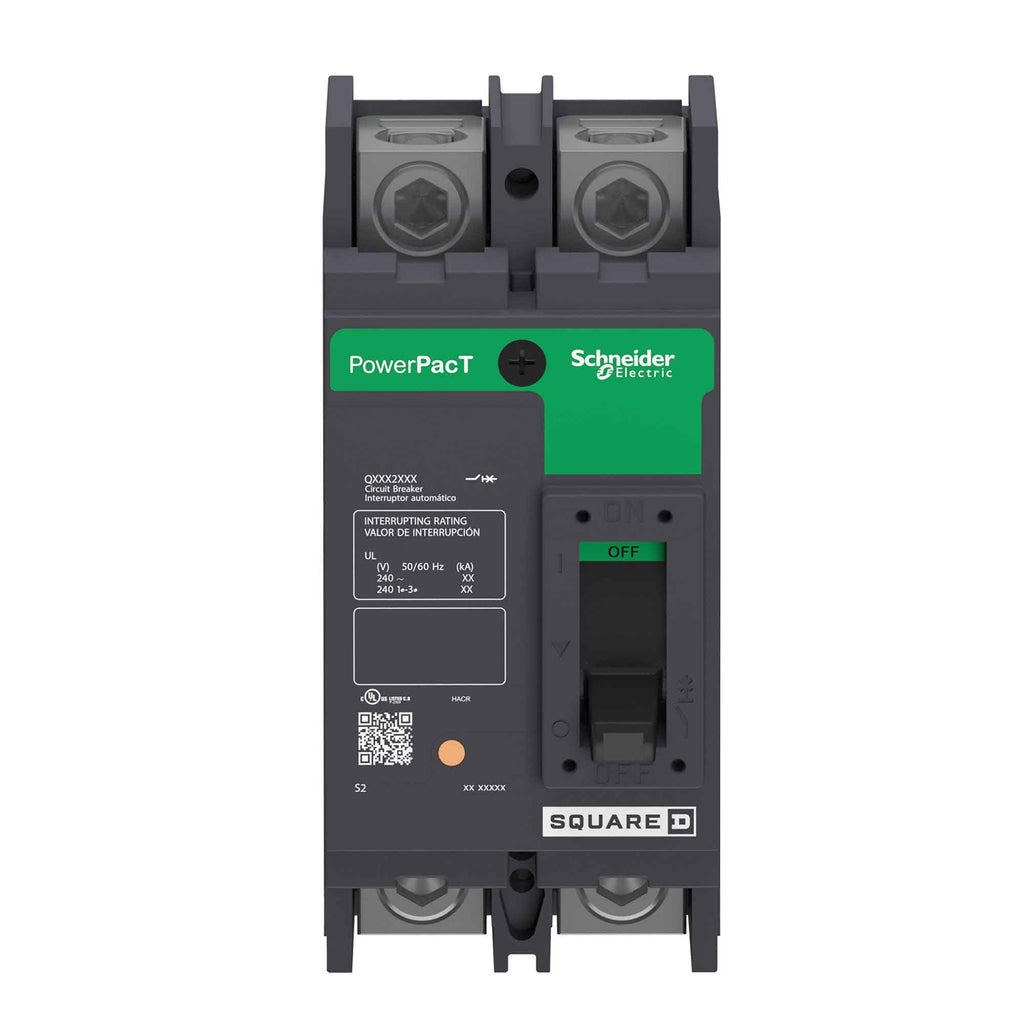

QGL22175 - Square D PowerPact Q 175A 240V 2-Pole Molded Case Circuit Breaker 65kA Interrupt Thermal Magnetic Trip

QGL22175

QGL22175 is a Square D PowerPact Q series molded case circuit breaker designed for 240 VAC systems with a 175 amp rating and 2 poles.This circuit breaker features a 65 kA interrupt rating at 240V, thermal magnetic trip protection, and feed-thru lugs on both line and load sides for reliable overcurrent protection and switching.

• Amperage: 175 A
• Voltage: 240 VAC
• Number of Poles: 2
• Interrupt Rating: 65 kA at 240V
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Series/Frame: PowerPact Q
• Connection: Feed-Thru Lugs
• Standards: UL, CSA, NOM, IEC Certified
• Continuous Current Rating: 80%
• Integral Push-to-Trip Button
• Phase: Single Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGL22175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QGL
• Voltage : 240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901603450
• GTIN : 00785901603450
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.384
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
