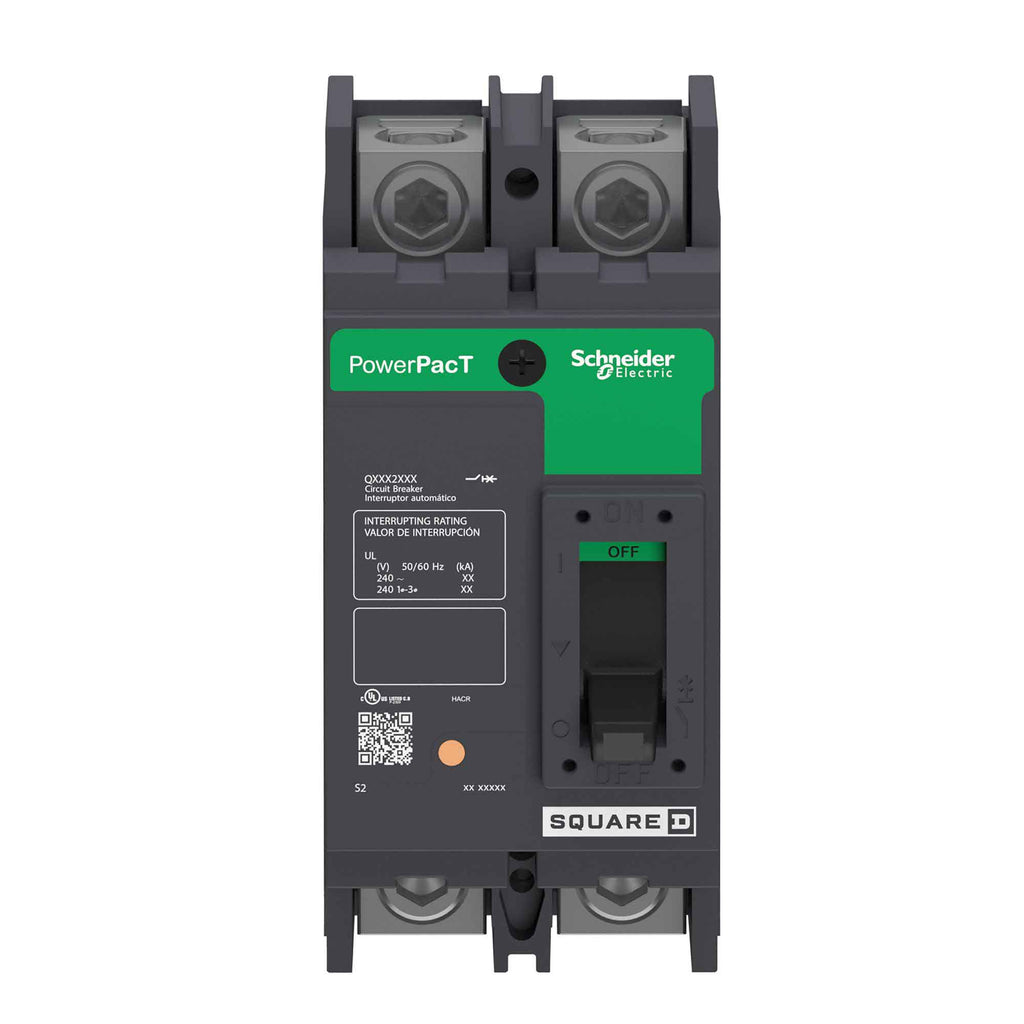

QGL22125 - Square D 125A 240V 2-Pole PowerPact Q Molded Case Circuit Breaker Thermal Magnetic Trip

QGL22125

QGL22125 is a Square D PowerPact Q molded case circuit breaker designed for 125 amp, 240 volt applications with 2 poles and thermal magnetic trip protection.This circuit breaker features a Q frame with a 65 kA interrupt rating at 240 V AC, suitable for single-phase systems. It includes line and load side lug terminals, unit mounting type, and supports wire sizes from 4 AWG to 300 kcmil aluminum or copper. The breaker has a toggle actuator and complies with UL 489 standards.

• Amperage Rating: 125 A
• Voltage Rating: 240 V AC
• Number of Poles: 2
• Frame Type: Q
• Interrupt Rating: 65 kA at 240 V AC
• Trip Type: Thermal Magnetic
• Mounting Type: Unit Mount
• Connection Type: Line/Load Lug
• Wire Size Range: 4 AWG to 300 kcmil Al/Cu
• Phase: 1
• Actuator Type: Toggle
• UL Listed (UL 489)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGL22125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QGL
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901524021
• GTIN : 00785901524021
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.34
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : 4 AWG to 300 kcmil Al/Cu
