Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
QGA322256

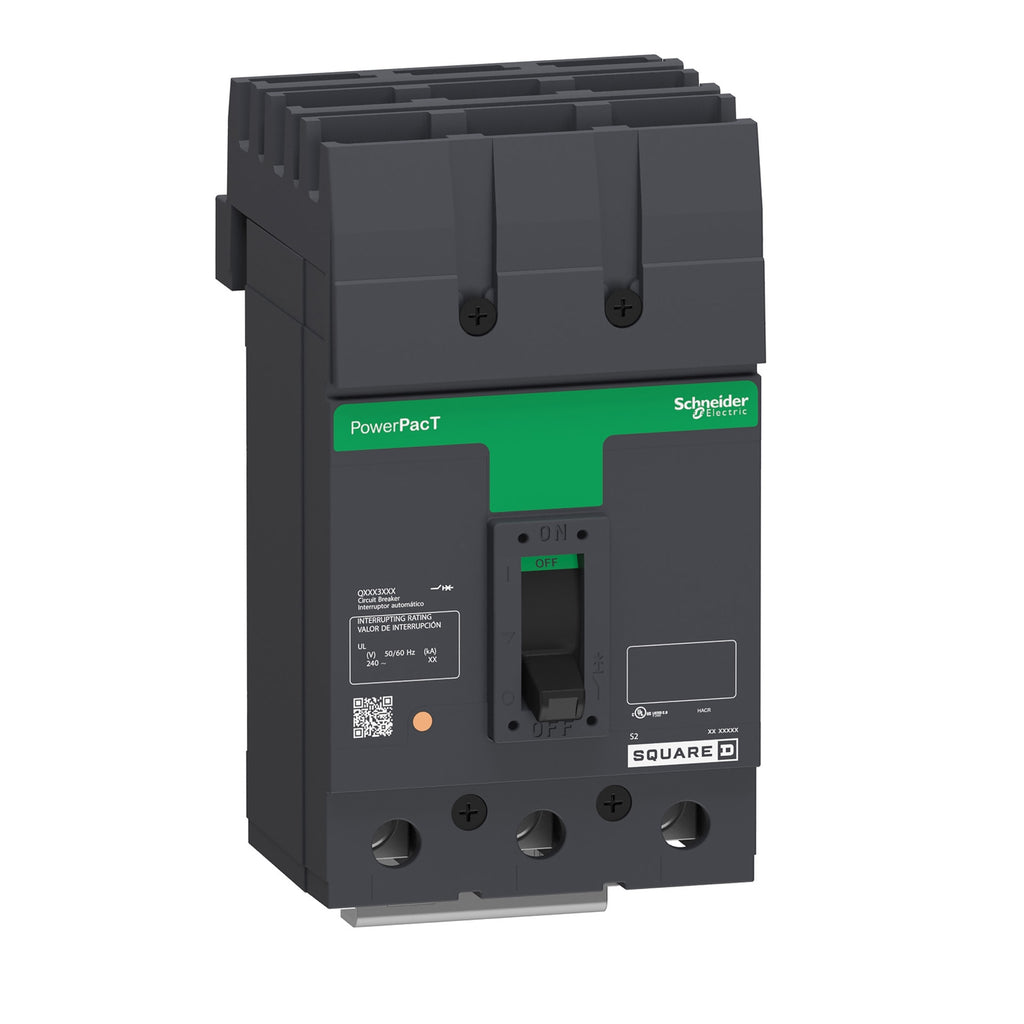

QGA322256 is a Square D PowerPacT Q series molded case circuit breaker designed for overcurrent protection and switching on AC systems. This 3-pole, 225-ampere breaker operates at 240VAC with a 65kA interrupting rating and features I-Line style plug-in mounting for easy installation in compatible panelboards. The thermal-magnetic trip unit provides reliable long-time and instantaneous protection with an 80% continuous current rating. Key Specifications
- Part Number: QGA322256
- Manufacturer: Square D
- Amperage: 225A
- Voltage: 240VAC
- Poles: 3
- Interrupting Rating: 65kA at 240VAC
- Mounting: I-Line Style Plug-In
- Trip Unit: Thermal-Magnetic
- Trip Functions: Long-Time and Instantaneous
- Frame Type: Q-Frame
- Continuous Current Rating: 80%
- Certifications: UL 489 Listed, CSA, ANCE, IEC
Specifications
- Part Number: QGA322256
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : QGA
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
