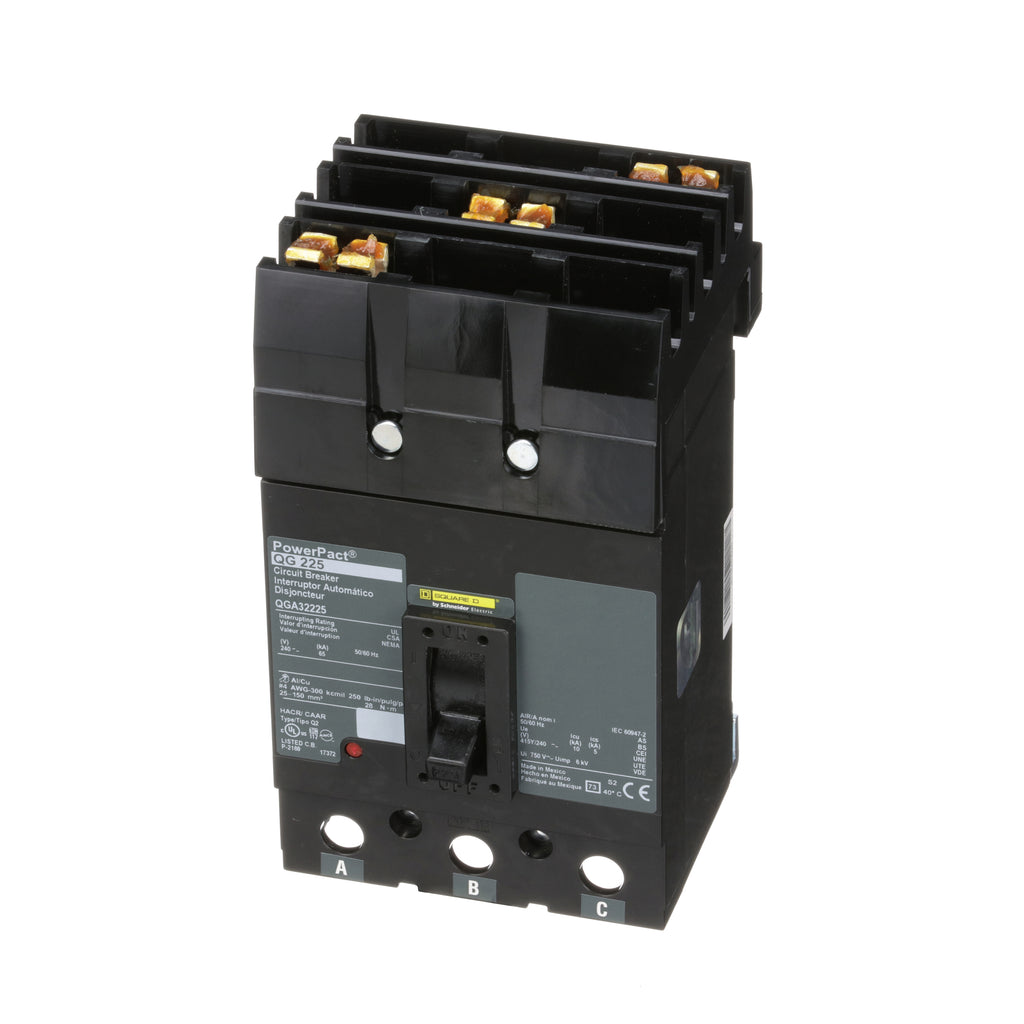

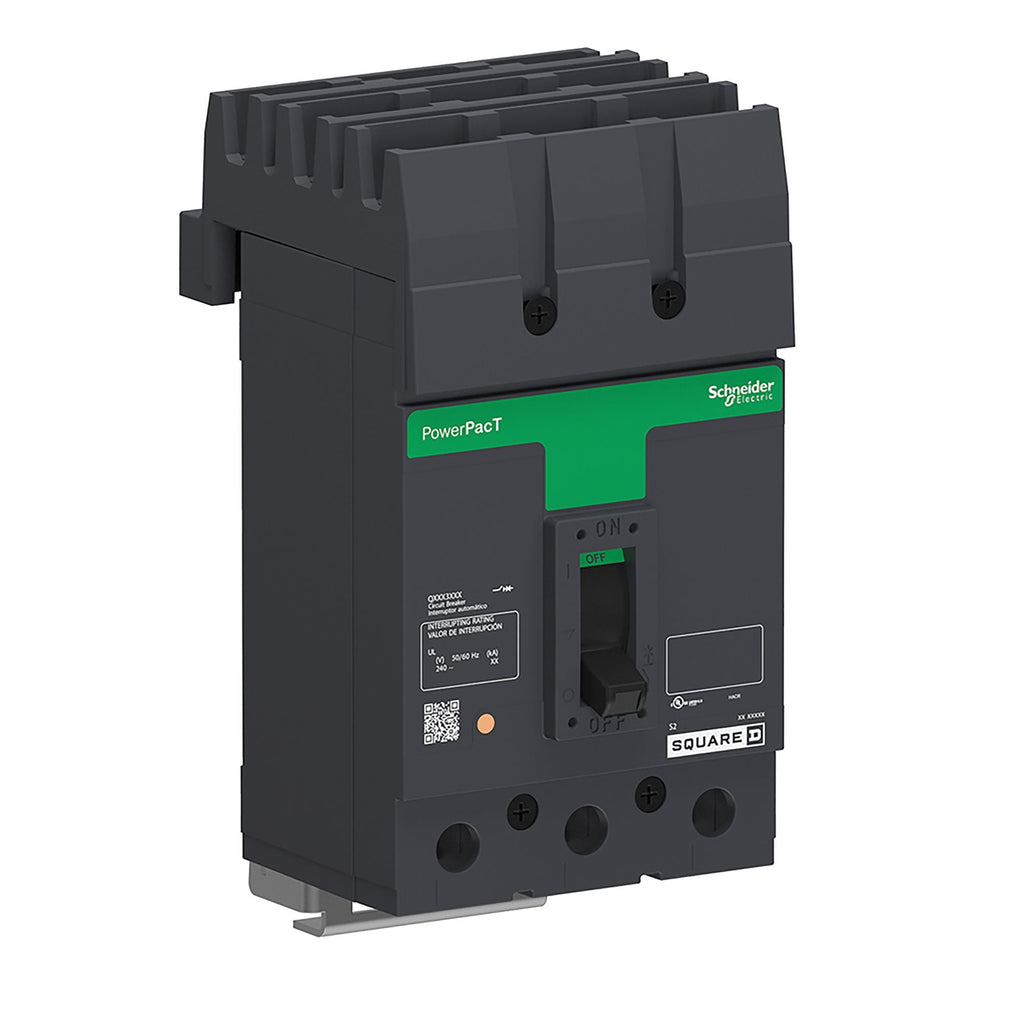

QGA32225 - Square D 225A 240VAC 3 Pole I-Line PowerPact Q Circuit Breaker 65kA Interrupt Rating

QGA32225

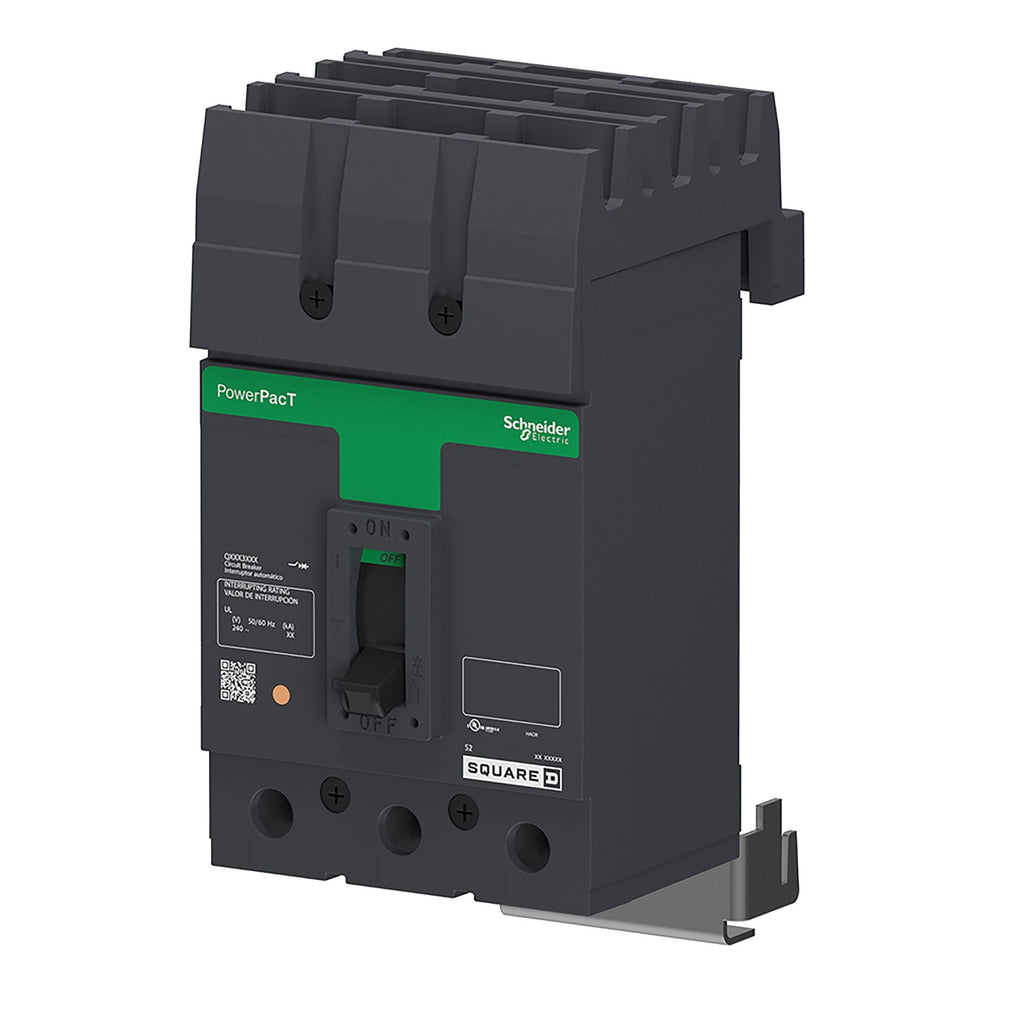

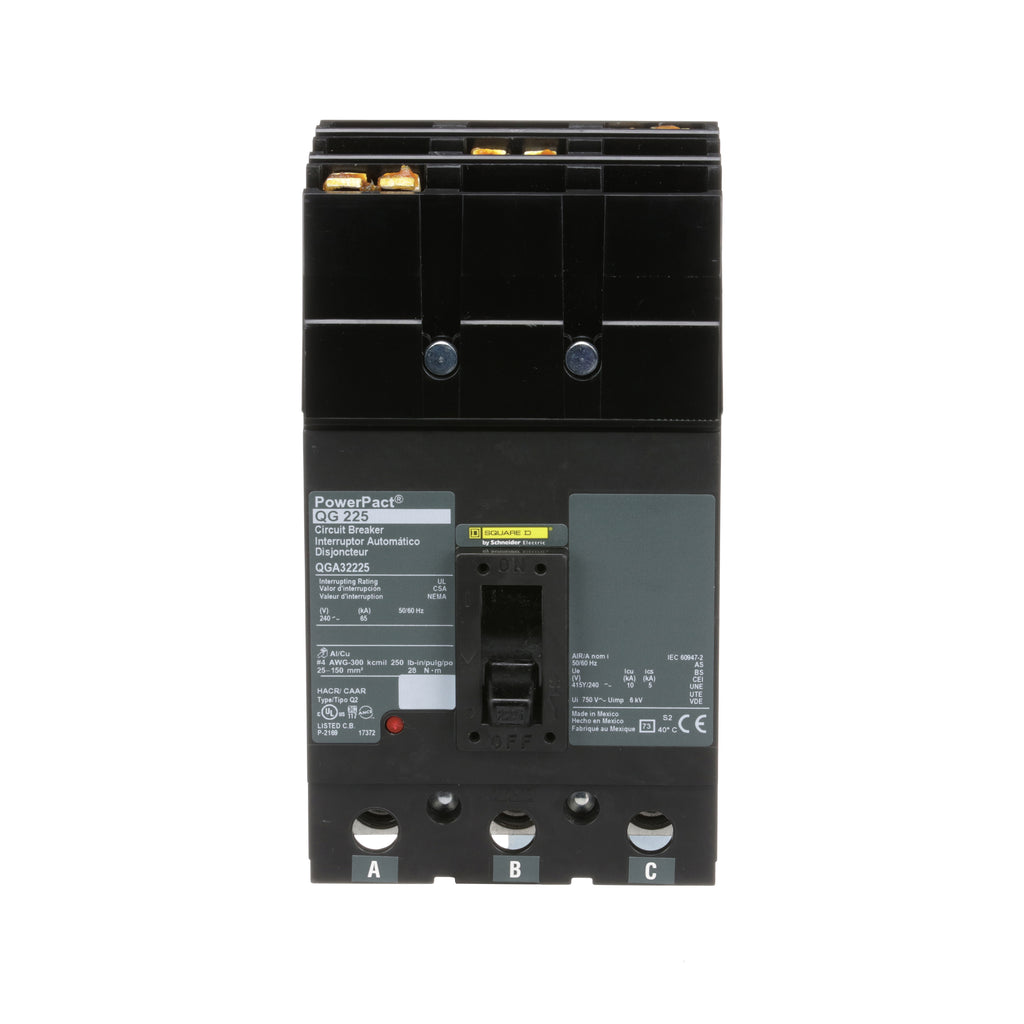

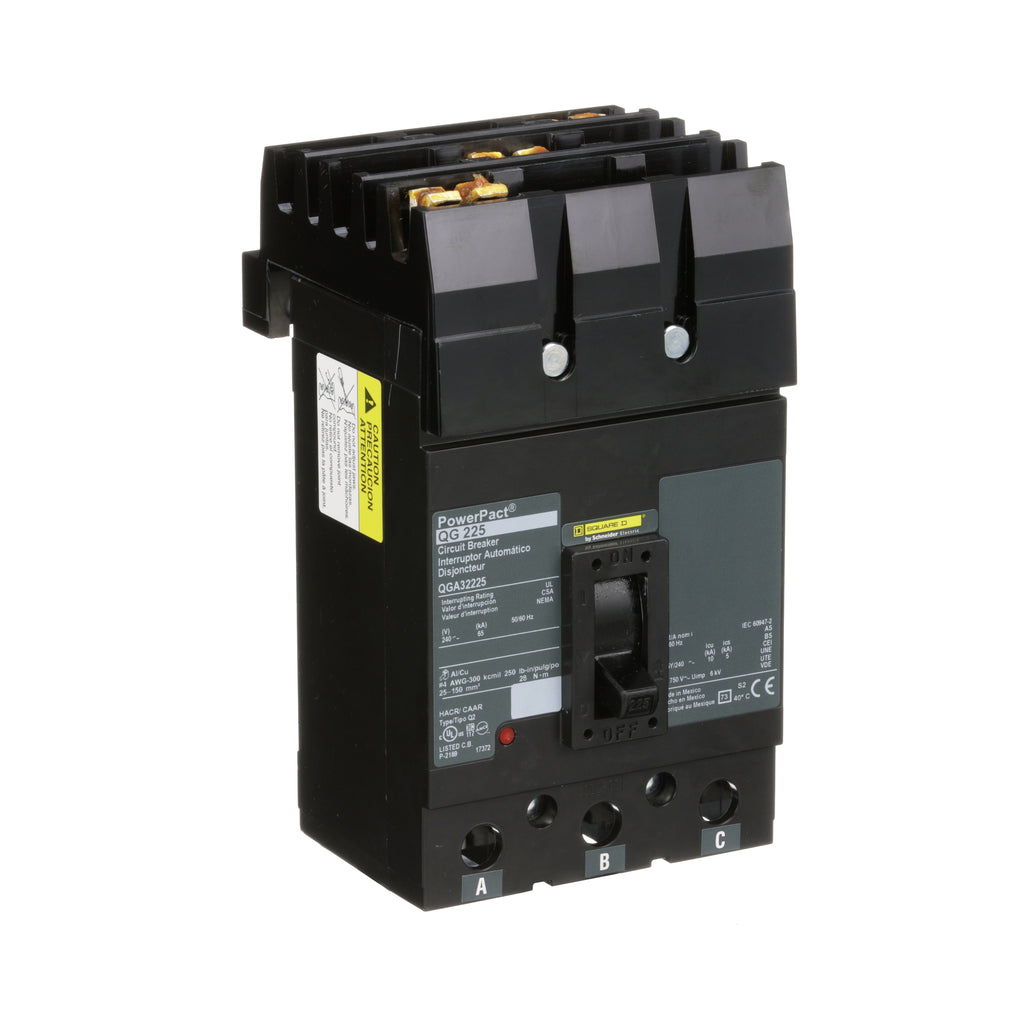

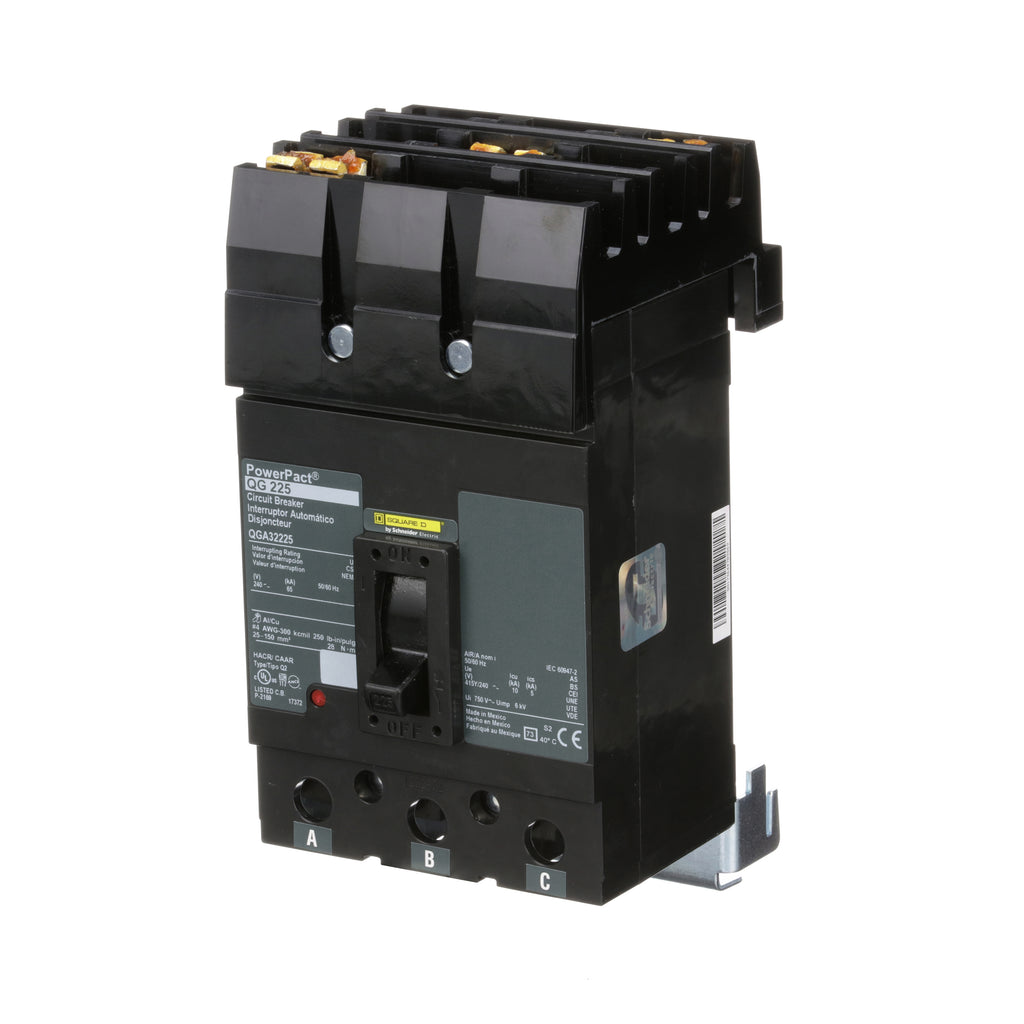

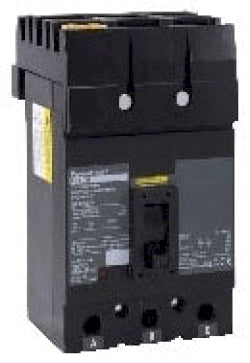

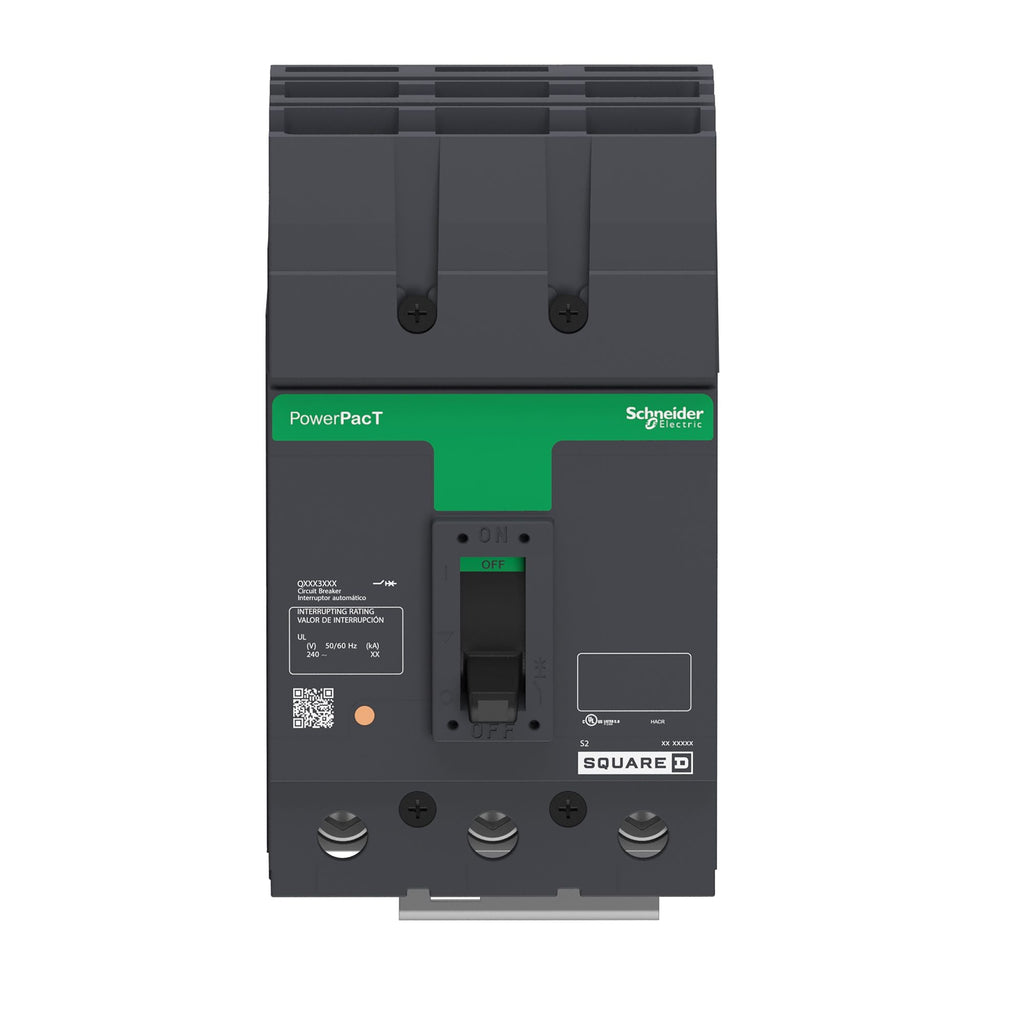

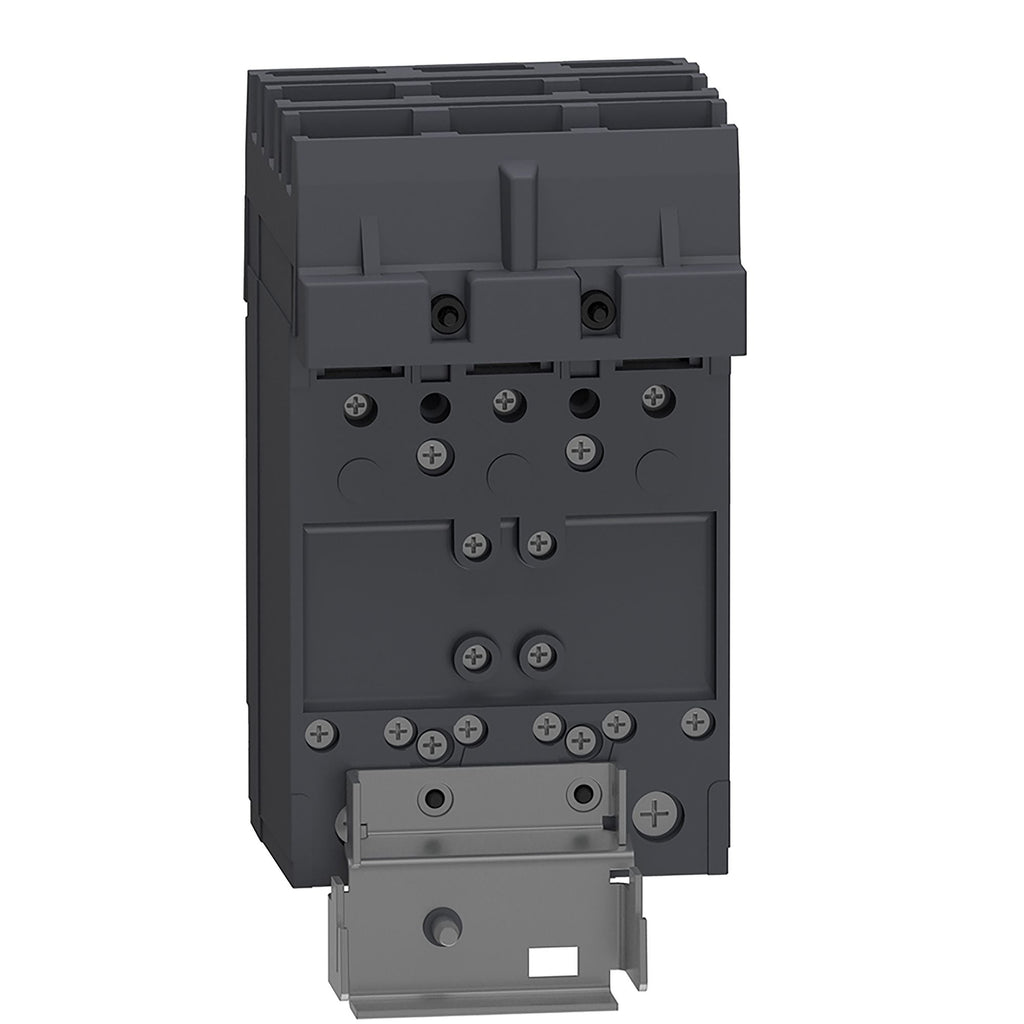

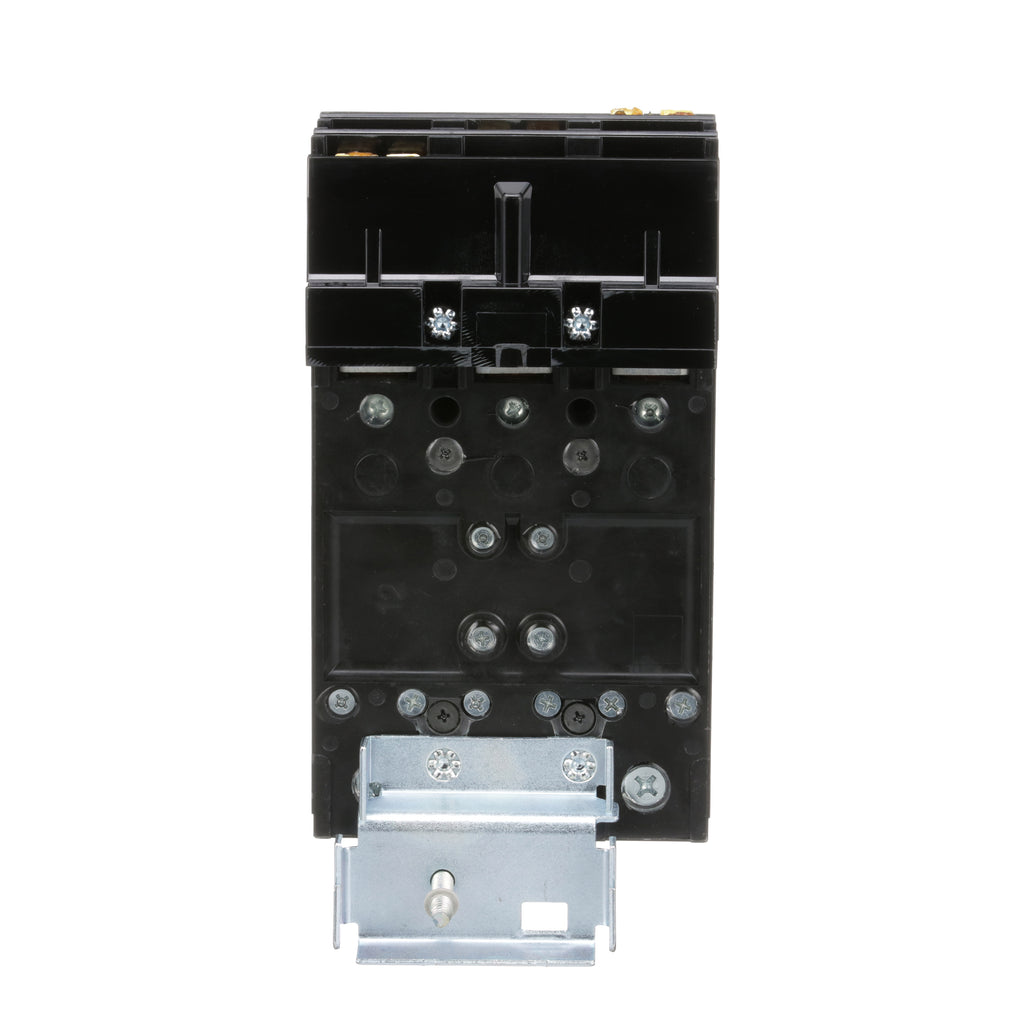

QGA32225 is a Square D 3 Pole 225 Amp thermal magnetic molded case circuit breaker designed for 240VAC applications with I-Line plug-in mounting.This PowerPact Q frame breaker features a 65kA interrupting rating at 120/208/240VAC, long time and instantaneous trip functions, and load side lug terminal connections. It is UL, CSA, NEMA, and NOM approved, mercury and PVC free, and suitable for use in 3-phase systems with a temperature rating from 40 to 70 °C.

• Manufacturer: Square D
• Part Number: QGA32225
• Amperage: 225A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupting Rating: 65kA at 120/208/240VAC
• Series/Frame: PowerPact QGA
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Load Side Lug
• Certifications: UL, CSA, NEMA, NOM
• Environmental: Mercury Free, PVC Free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGA32225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QGA
• Voltage : 240
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901789796
• GTIN : 00785901789796
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.601
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : 300 kcmil (Copper) 4 AWG (Aluminium)
