Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
QGA321506

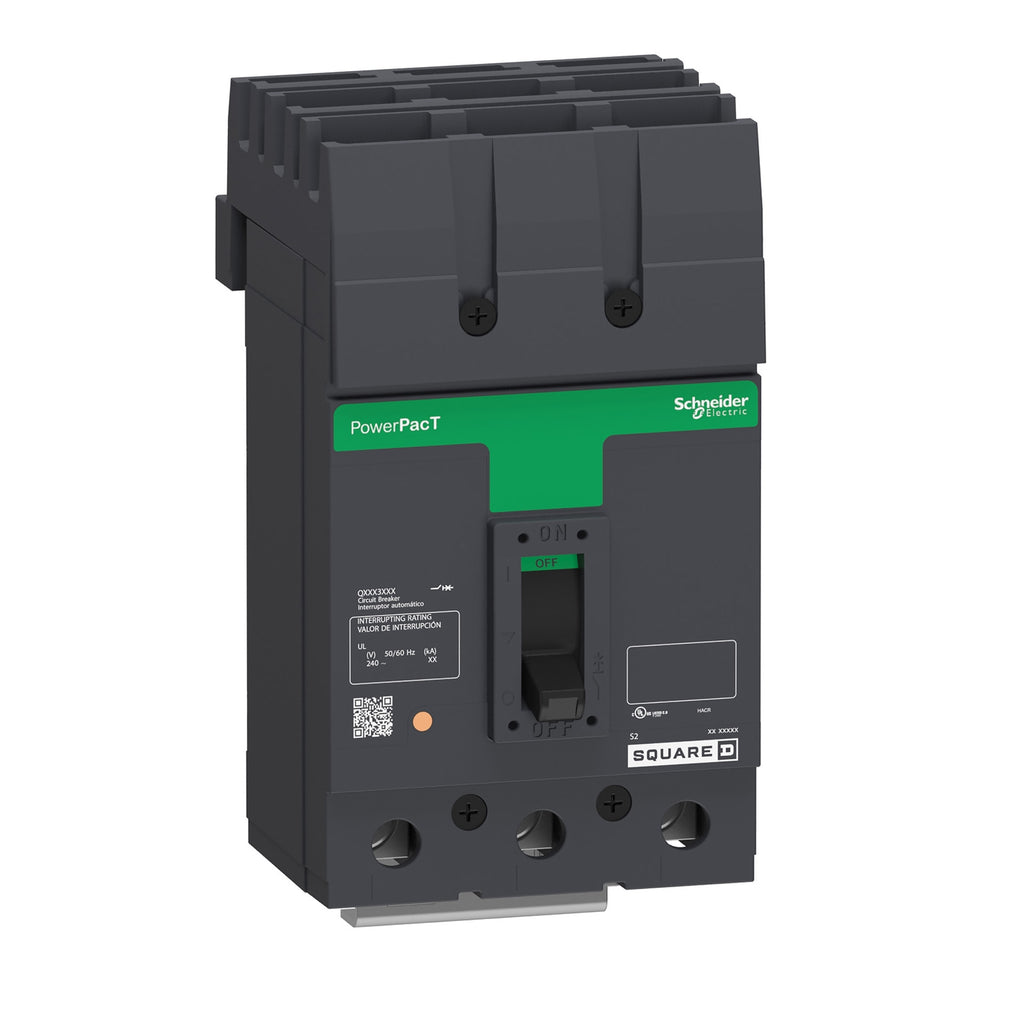

QGA321506 is a 3-pole, 240 volt, 150 ampere molded case circuit breaker manufactured by Square D for overcurrent protection and switching on AC systems. This I-Line style plug-in breaker features thermal-magnetic trip technology with long-time and instantaneous protection functions, delivering reliable performance in industrial and commercial applications. The breaker is equipped with load side lug terminals and operates with an 80% continuous current rating and 1200 ampere magnetic hold current.
- Amperage Rating: 150A
- Voltage Rating: 240V AC
- Poles: 3
- Phase: 3-Phase
- Interrupt Rating: 65kA at 240V
- Frame Type: Q-Frame
- Mounting: I-Line Style Plug-In
- Trip Unit: Thermal-Magnetic
- Trip Functions: Long-Time and Instantaneous (LI)
- Certifications: UL Listed, CSA, IEC
- Dimensions: 6.47" H x 4.5" W x 3.93" D
- Weight: 4.9 lbs
Specifications
- Part Number: QGA321506
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : QGA
- Voltage : 240
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
