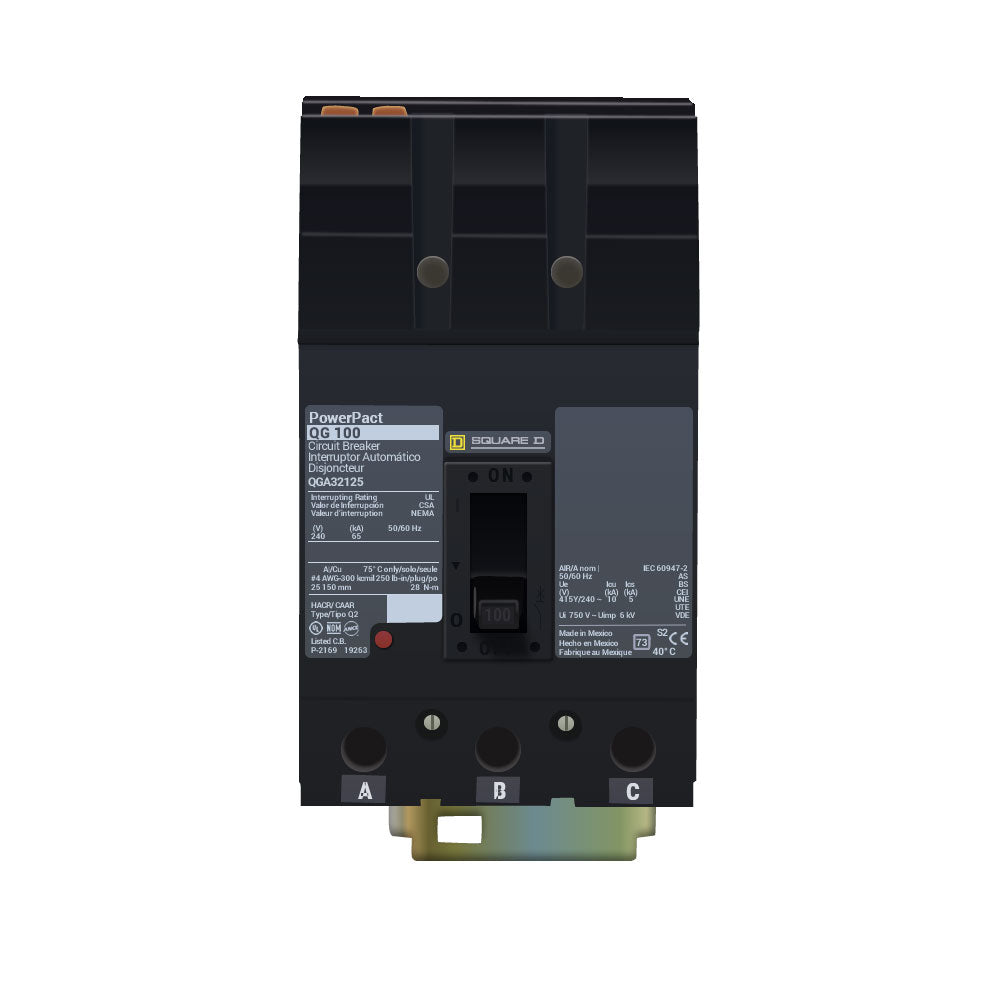

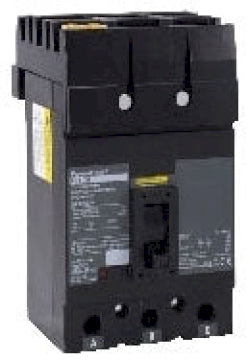

QGA32125 - Square D 125A 3-Pole 240V Molded Case Circuit Breaker, QGA Frame, Thermal Magnetic

QGA32125

QGA32125 is a Square D 3-pole molded case circuit breaker rated for 125 amps and 240 volts, designed for reliable circuit protection.This circuit breaker features a thermal magnetic trip unit with a 65kA interrupt rating at 240V, plug-in mounting type, and QGA frame series. It is UL, CSA, and IEC certified, suitable for industrial and commercial applications requiring high interrupting capacity and dependable performance.

Key Specifications
• Amperage: 125A
• Voltage: 240V AC
• Poles: 3
• Frame Type: QGA
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 65kA at 240V
• Mounting Type: Plug-in
• Certifications: UL, CSA, IEC
• Trip Setting: 1200A Hold, 2400A Trip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGA32125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QGA
• Voltage : 240
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901705598
• GTIN : 00785901705598
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.68
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
