QGA32080 - Square D 80A 240V 3-Pole Molded Case Circuit Breaker, PowerPact Q Frame, I-Line Plug-In, 65kAIC

Save $2,979.85
SKU: QGA32080-New
Condition: New
Price:
$1,272.65 $4,252.50
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

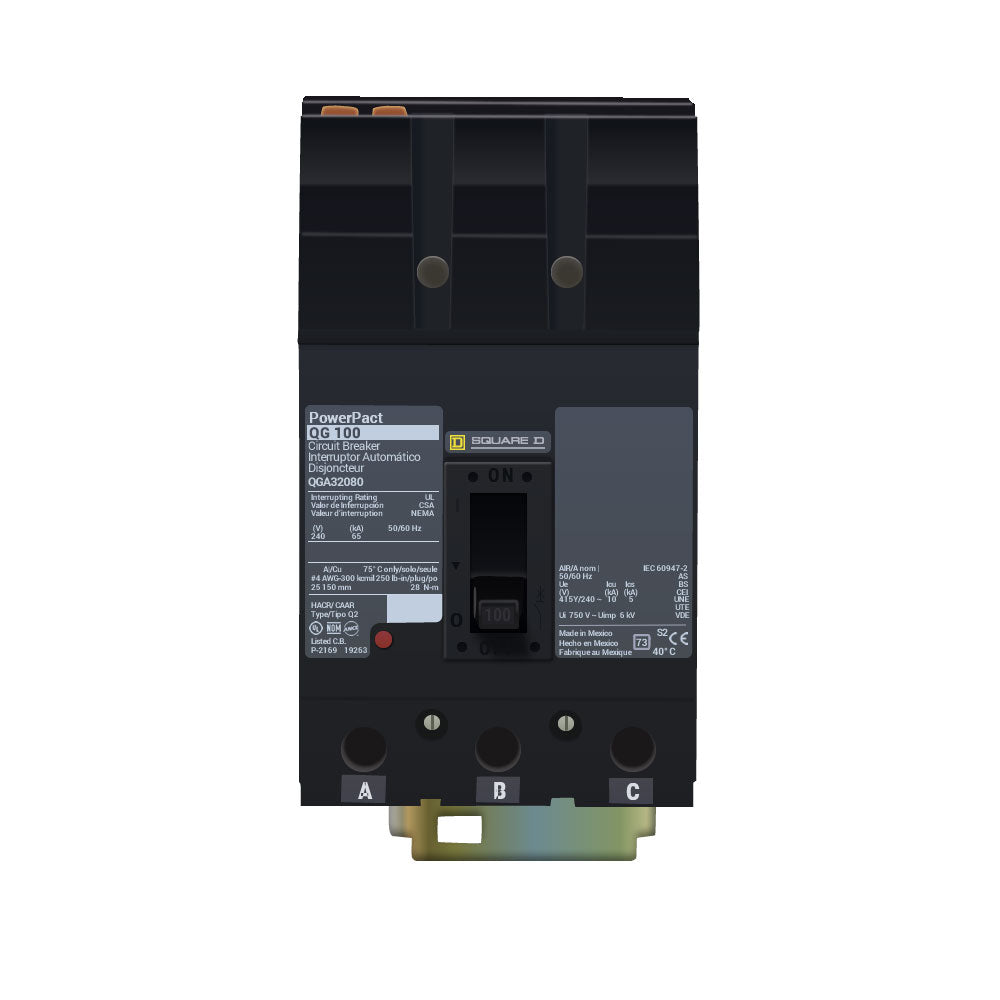

QGA32080 - Square D I-Line Style Plug-In 240V 80A 3 pole circuit breaker 65kA@240V - Essential Electric Supply
QGA32080 - Square D 80A 240V 3-Pole Molded Case Circuit Breaker, PowerPact Q Frame, I-Line Plug-In, 65kAIC - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

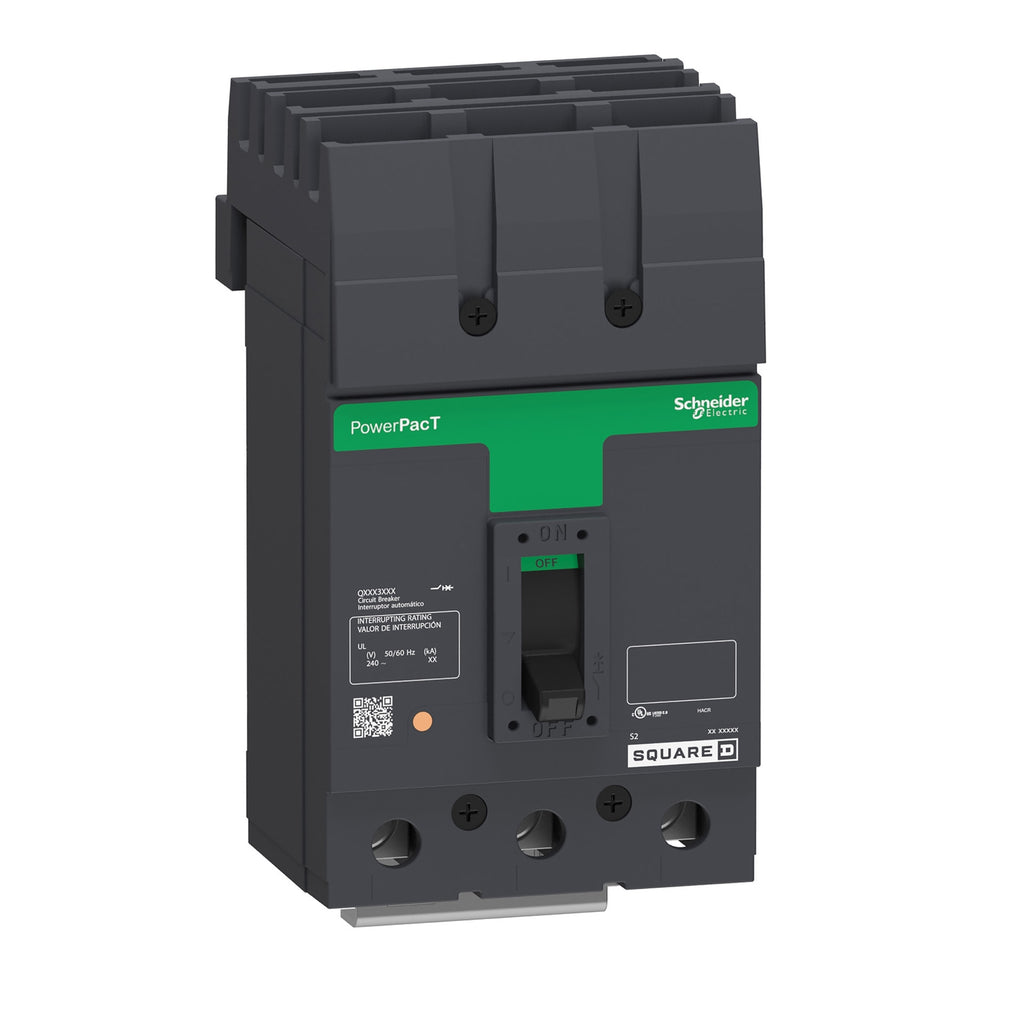

QGA32080 - Square D I-Line Style Plug-In 240V 80A 3 pole circuit breaker 65kA@240V - Essential Electric Supply
QGA32080 - Square D 80A 240V 3-Pole Molded Case Circuit Breaker, PowerPact Q Frame, I-Line Plug-In, 65kAIC - Essential Electric Supply

Description

QGA32080


QGA32080 is a 3-pole, 80A, 240V molded case circuit breaker from Square D's PowerPact Q series, designed for I-Line busway systems with high interrupting capacity. This thermal magnetic circuit breaker features long-time and instantaneous trip functions, load side lug terminals, and is suitable for commercial and industrial applications requiring reliable protection and easy installation.
  • Part Number: QGA32080
  • Manufacturer: Square D
  • Series/Frame: PowerPact Q
  • Amperage: 80A
  • Voltage: 240VAC
  • Poles: 3
  • Mounting Type: I-Line Bracket
  • Interrupting Rating: 65kAIC @ 240VAC
  • Connection Type: I-Line Style Plug-In
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Certifications: UL, CSA, IEC, NEMA, NOM, ANCE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QGA32080
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : I-Line
  • Type : QGA
  • Voltage : 240
  • Amperage : 80
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@240V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901456100
  • GTIN : 00785901456100
  • Country of Origin : Mexico
  • Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
  • Weight : 3.03
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
