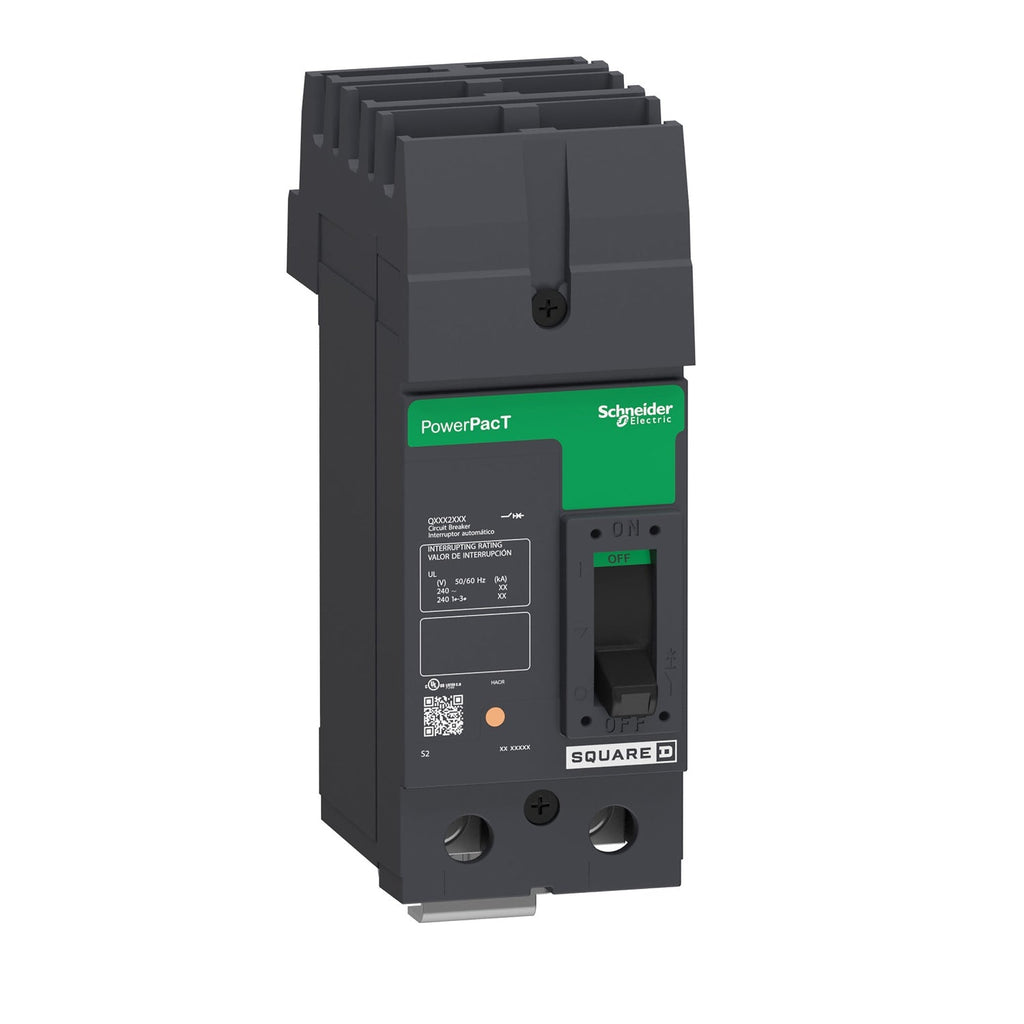

QGA222004 - Square D 200A 240V 2 Pole Molded Case Circuit Breaker I-Line Plug-In 65kAIC

QGA222004

QGA222004 is a 2 pole, 200A, 240VAC molded case circuit breaker designed for I-Line panelboards and switchboards, providing reliable thermal magnetic protection for commercial and industrial applications. This Square D PowerPact Q series breaker features an I-Line style plug-in mounting, long time and instantaneous trip functions, and a 65kAIC interrupting rating at 240VAC. It is suitable for overcurrent protection and switching on AC systems, with load side lugs for secure wire connections.

• Part Number: QGA222004
• Manufacturer: Square D
• Series/Frame: PowerPact Q, QGA Frame
• Amperage: 200A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupting Rating: 65kAIC @ 240VAC
• Protection Type: Thermal Magnetic
• Functions: Long Time and Instantaneous Trip
• Terminal Connection: Load Side Lug
• Certifications: UL, CSA, ANCE, IEC, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGA222004
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QGA
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : BC

Product Data

• UPC : 785901478690
• GTIN : 00785901478690
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.751
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4 to 300KCmil
