QGA222001 - Square D 200A 240V 2-Pole Thermal Magnetic Circuit Breaker I-Line Plug-In 65kA Interrupt Rating

QGA222001

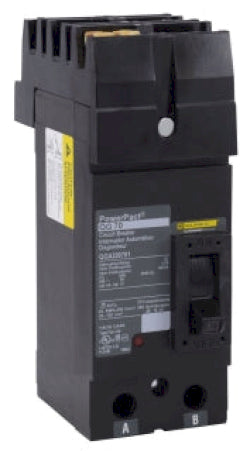

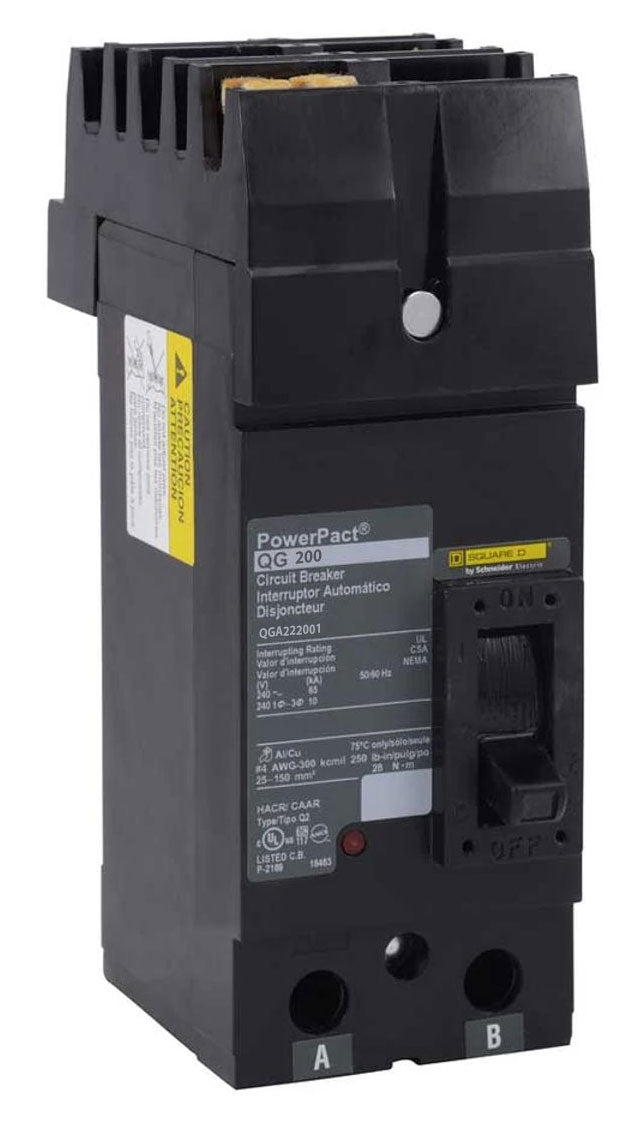

QGA222001 is a Square D 2-pole thermal magnetic molded case circuit breaker rated for 200 amps and 240 volts AC with I-Line plug-in mounting.This circuit breaker features a 65kA interrupting rating at 240V, long-time and instantaneous trip functions, and is designed for overcurrent protection and switching in single-phase AC systems. It is UL, CSA, and IEC certified and fits QGA frame panels with I-Line style connections.

• Manufacturer: Square D
• Series/Frame: QGA
• Amperage: 200A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 65kA @ 240V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Phase: Single Phase
• Certifications: UL, CSA, IEC
• Dimensions (LxWxH): 3.93 x 4.5 x 6.47 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGA222001
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QGA
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901438922
• GTIN : 00785901438922
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.87
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
