QGA221002 - Square D PowerPact Q Molded Case Circuit Breaker 100A 2P 240VAC 65kA I-Line Thermal-Magnetic UL CSA

QGA221002

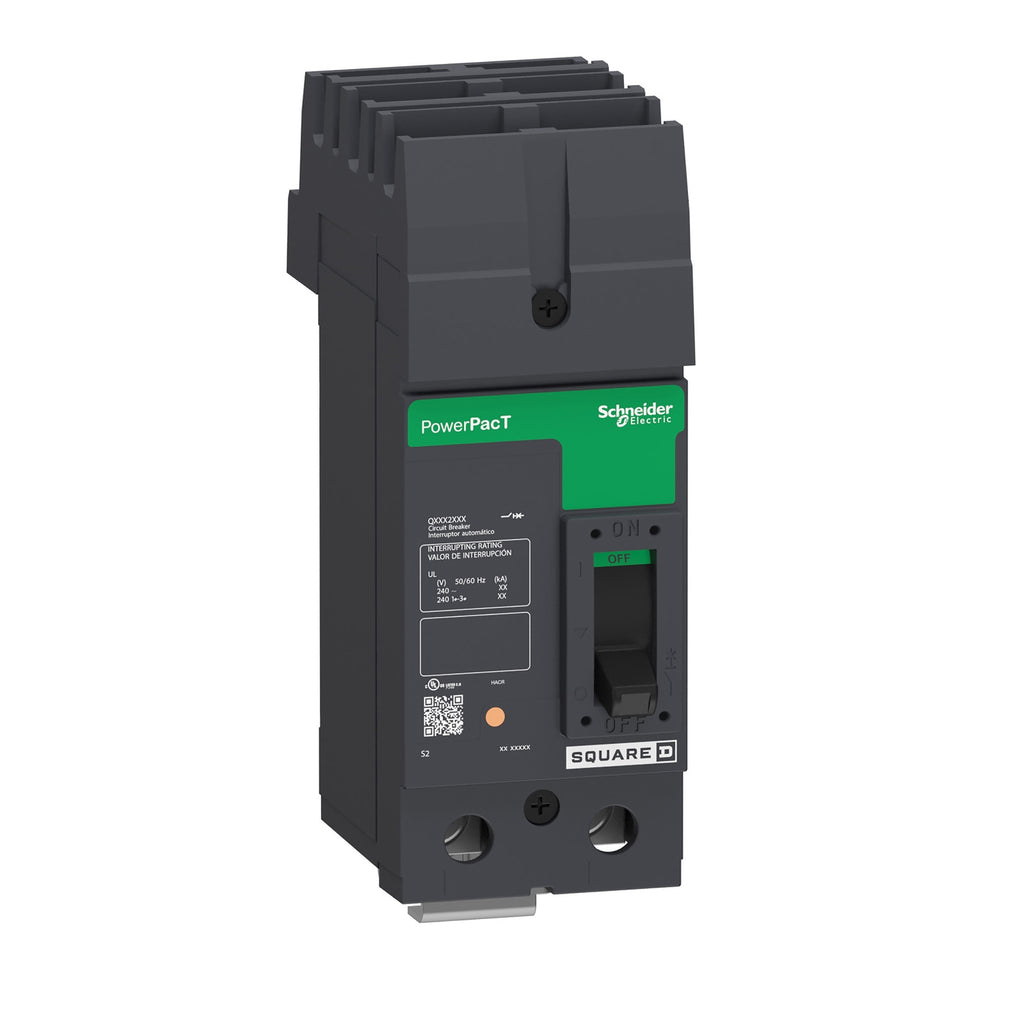

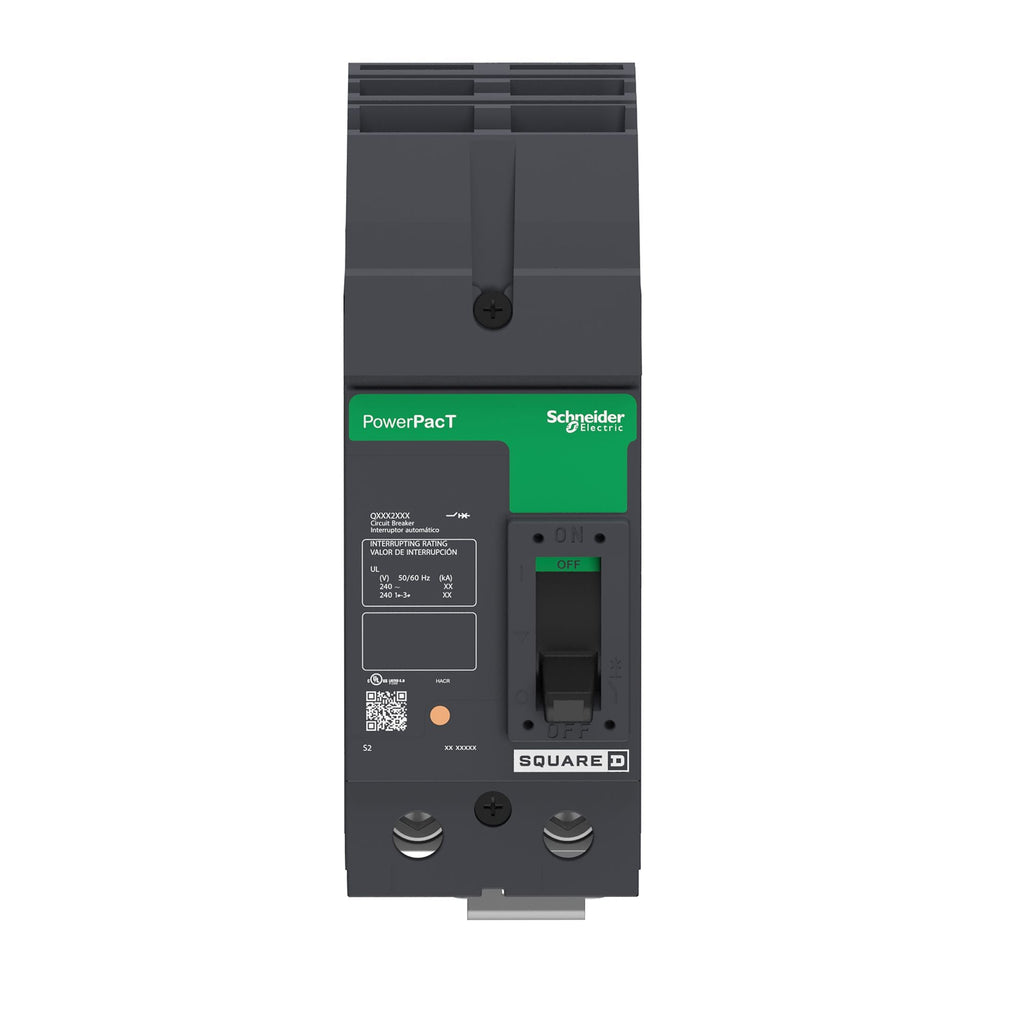

QGA221002 is a Square D PowerPact Q series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial power distribution applications.

This thermal-magnetic trip unit circuit breaker offers a 100A rating, 2-pole configuration, and 240VAC voltage, with a high interrupting capacity of 65kA. It is UL 489 Listed, CSA, ANCE, and IEC certified, ensuring compliance with rigorous safety standards. The breaker is compatible with I-Line panelboards and switchboards, features non-interchangeable trip, and is suitable for both new installations and replacements.

Key Specifications
• Amperage: 100A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: I-Line panelboard/switchboard
• Interrupt Rating: 65kA at 208Y/120VAC and 240VAC
• Series/Frame: PowerPact Q, QGA frame
• Trip Unit: Thermal-magnetic, non-interchangeable
• Certifications: UL 489 Listed, CSA, ANCE, IEC
• Magnetic Hold Current: 1200A
• Magnetic Tripping Current: 2400A
• Mechanical Durability: 1000 cycles loaded, 5000 cycles no load
• Connection: Lugs load side, AWG 4-300 kcmil aluminum/copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGA221002
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QGA
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901469063
• GTIN : 00785901469063
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.729
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...300 kcmil aluminium/copper
