Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QGA220704

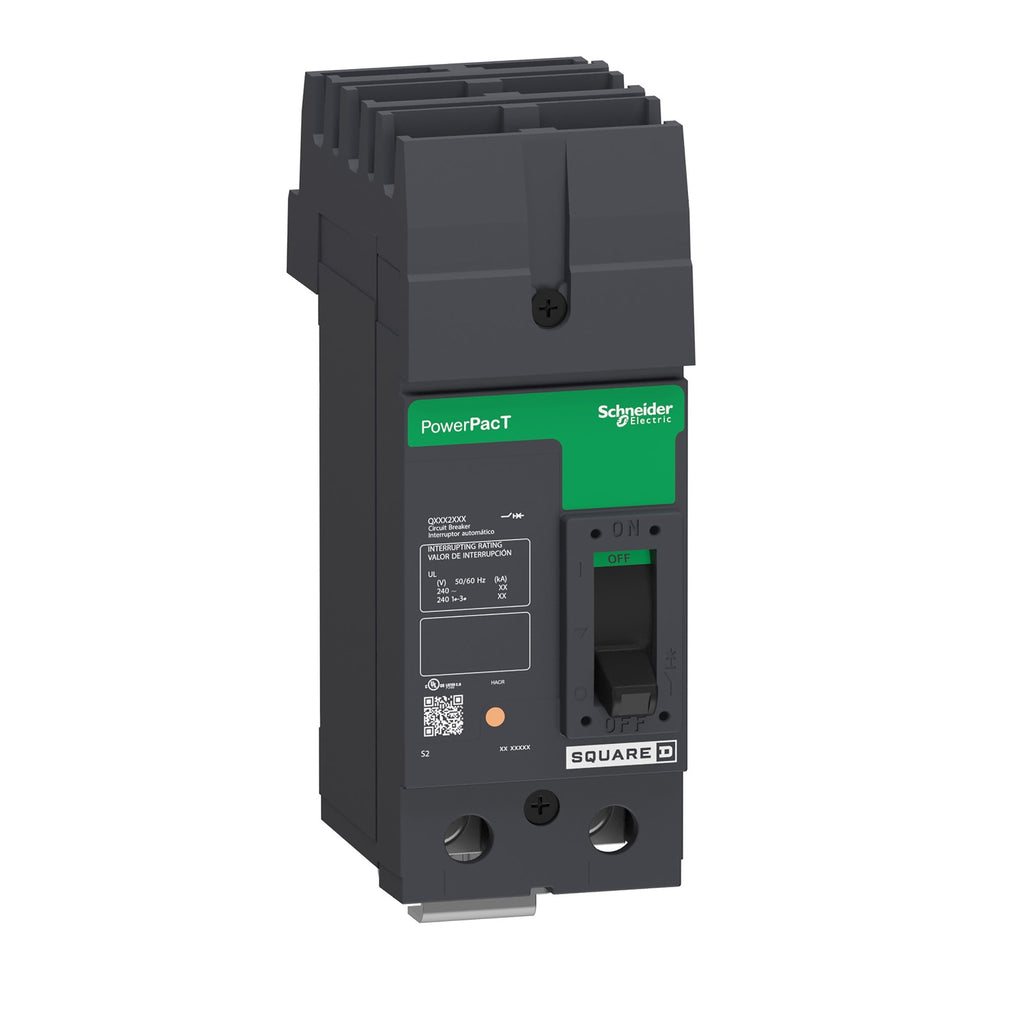

QGA220704 is a 2 pole, 70 amp, 240VAC PowerPacT Q series circuit breaker designed for I-Line panelboards and switchboards. This Square D PowerPacT Q circuit breaker features a thermal magnetic trip unit and is rated for 65kA interrupting capacity at 240VAC. It is designed for reliable power distribution in commercial and industrial applications, with I-Line style plug-in mounting for quick installation and secure connection.
- Part Number: QGA220704
- Manufacturer: Square D
- Series: PowerPacT Q
- Amperage: 70A
- Voltage: 240VAC
- Poles: 2 Pole
- Mounting Type: I-Line Plug-In
- Interrupt Rating: 65kA @ 240VAC
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
- Application: Power Distribution
- Frame: I-Line
Specifications
- Part Number: QGA220704
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : QGA
- Voltage : 240
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 65kA@240V
- Connection : I-Line Style Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 4.729
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
