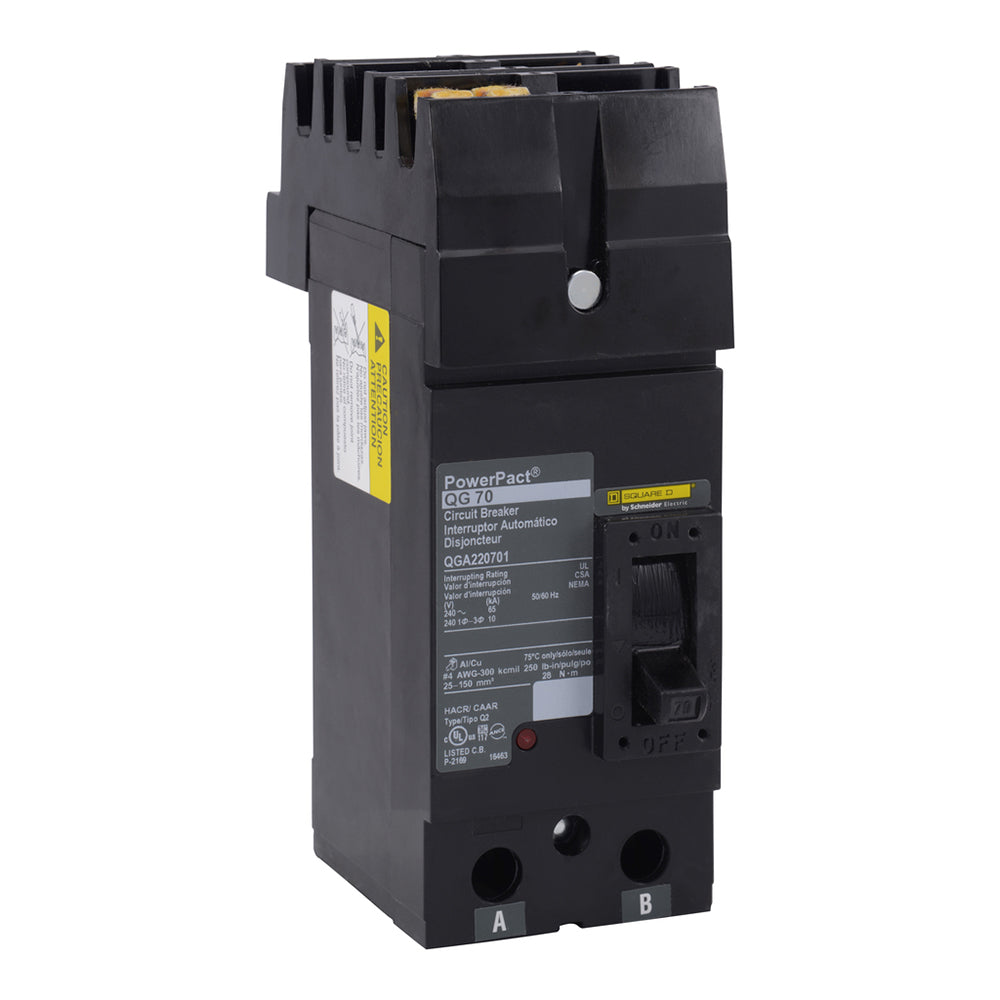

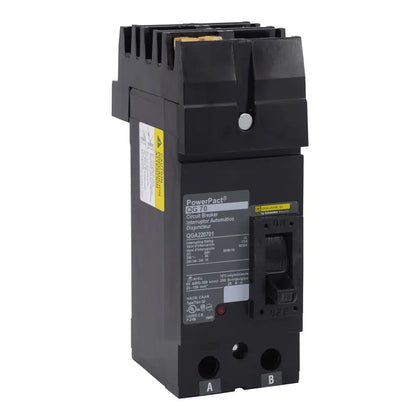

QGA220702 - Square D I-Line Style Plug-In 240V 70A 2 Pole Molded Case Circuit Breaker, PowerPact Q Frame, 65kA Interrupt, Thermal Magnetic Trip, UL/CSA

QGA220702

QGA220702 is a Square D I-Line style plug-in molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This 2-pole breaker features a thermal magnetic trip unit, 70A current rating, and 240V AC voltage rating, with a high interrupting capacity of 65kA at 240V. It is part of the PowerPact Q series and is UL and CSA certified for safety and compliance.

Key Specifications
• Amperage: 70A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: I-Line style plug-in
• Interrupt Rating: 65kA at 240V
• Series/Frame: PowerPact Q (QGA)
• Trip Unit: Thermal magnetic
• Certifications: UL Listed, CSA
• Application: Distribution panelboards and switchboards
• Termination: Load side lug terminals
• Phase: 1
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGA220702
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QGA
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901442424
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.729
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...300 kcmil aluminium/copper
