Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QG220

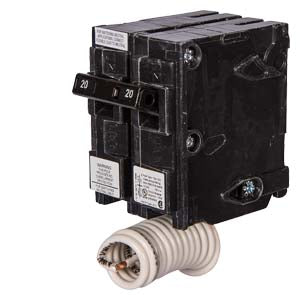

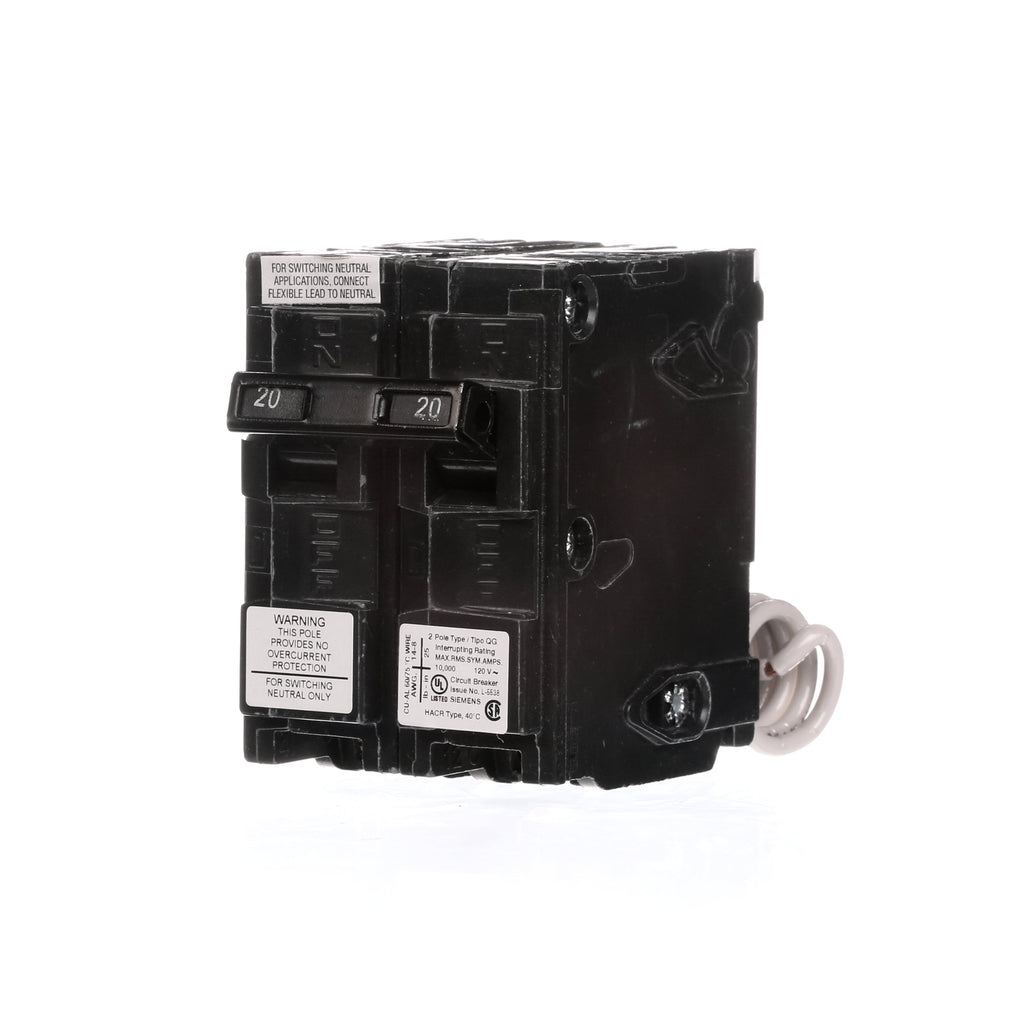

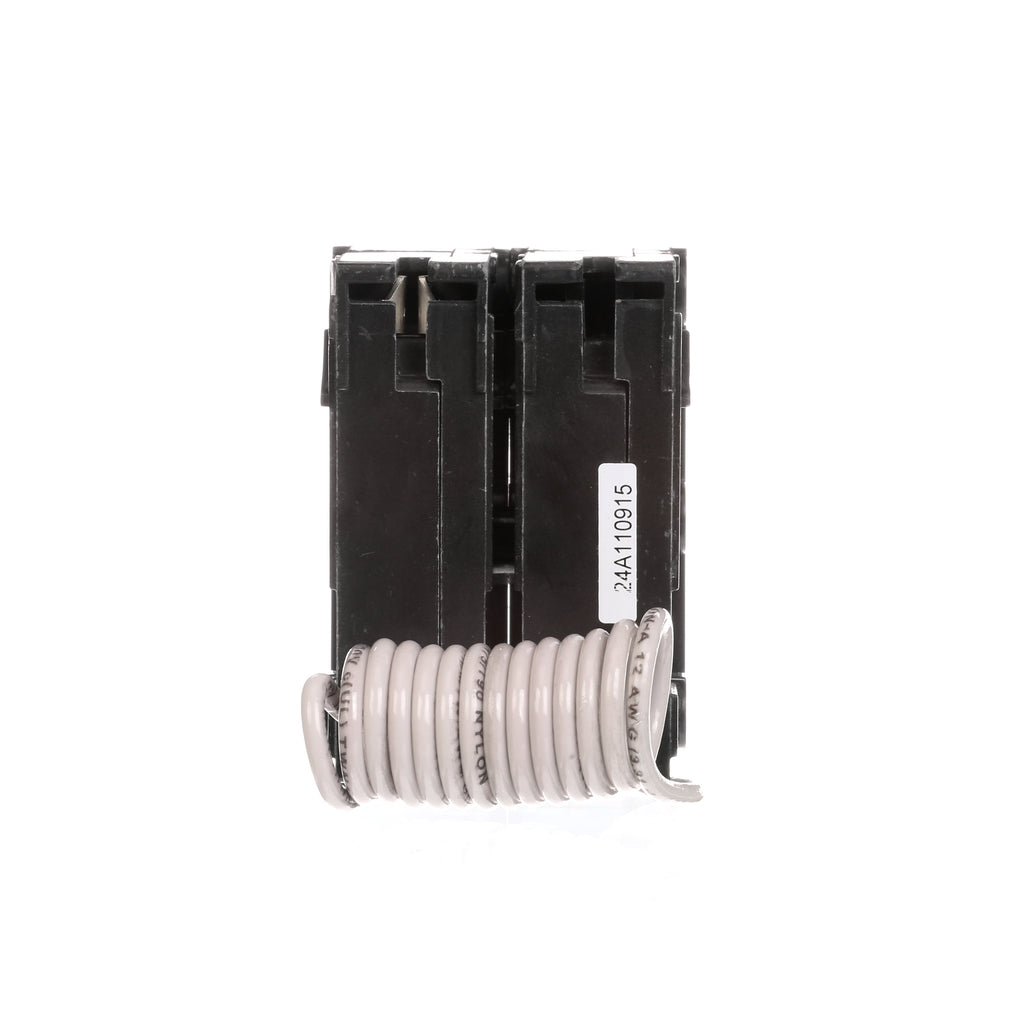

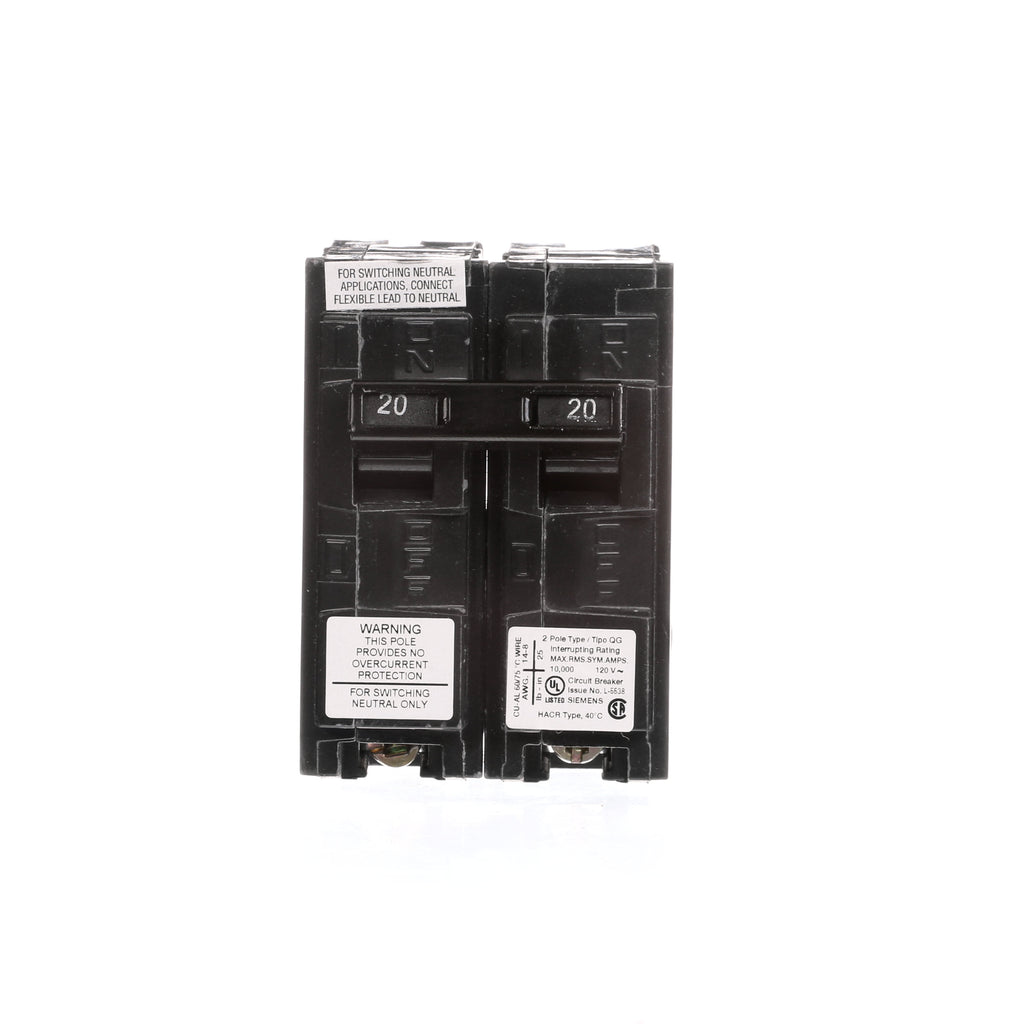

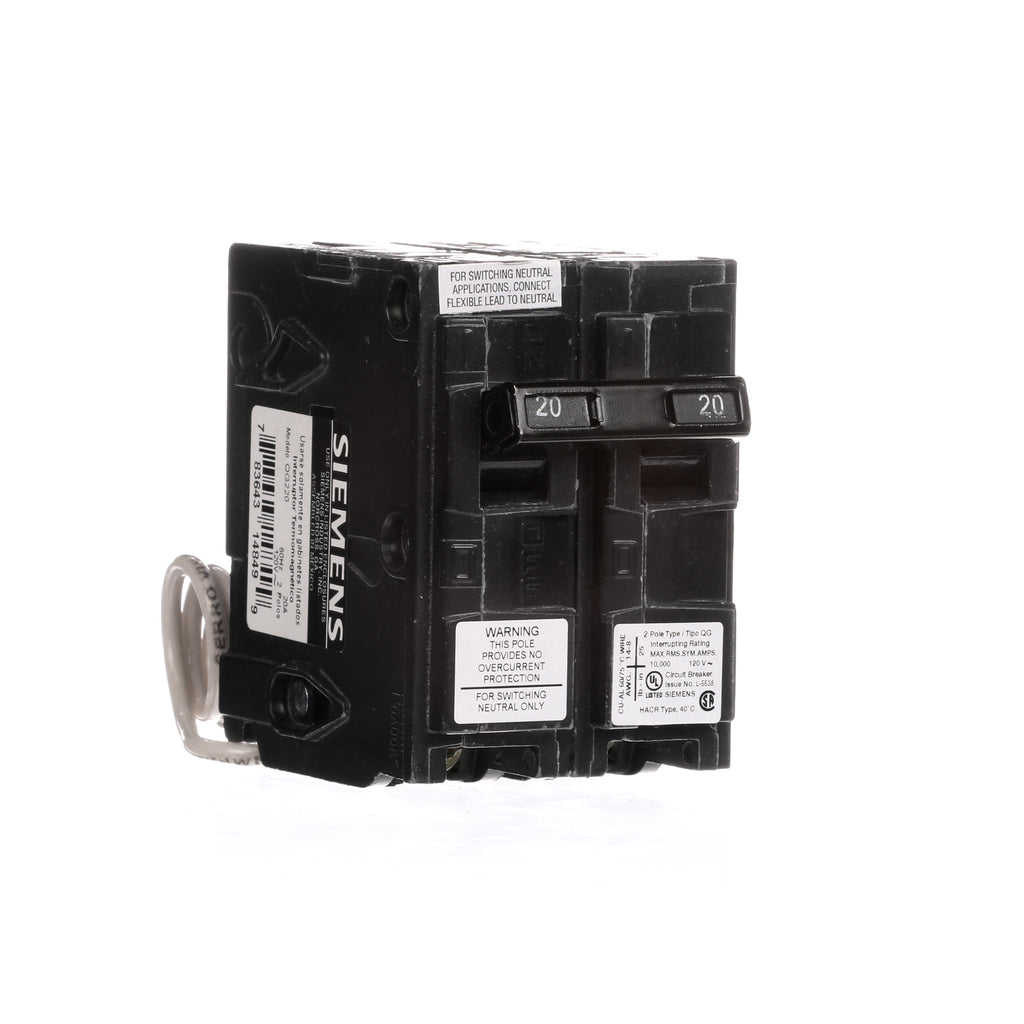

QG220 is a Siemens 2 Pole 20 Amp thermal magnetic circuit breaker designed for 120/240 VAC applications with switching neutral functionality.This Siemens QG220 circuit breaker features a common trip mechanism and an additional pole to disconnect the neutral conductor when the breaker trips or is open. It has a 10,000 AIC interrupting rating at 120 VAC and is compatible with Siemens QP series load centers. The breaker provides reliable overload and short-circuit protection with easy plug-in installation.
- Key Specifications
- Amperage: 20 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Interrupting Rating: 10,000 AIC at 120 VAC
- Trip Unit: Thermal Magnetic, Common Trip
- Mounting Type: Plug-in
- Series/Frame: QG (compatible with QP series load centers)
- Switching Neutral: Yes, disconnects neutral when tripped
- Certifications: UL Listed
Specifications
- Part Number: QG220
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QG
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643148499
- GTIN : 00783643148499
- Country of Origin : Mexico
- Dimensions : 2.571 x 2.00 x 2.89 inch
- Weight : 0.551 lb
