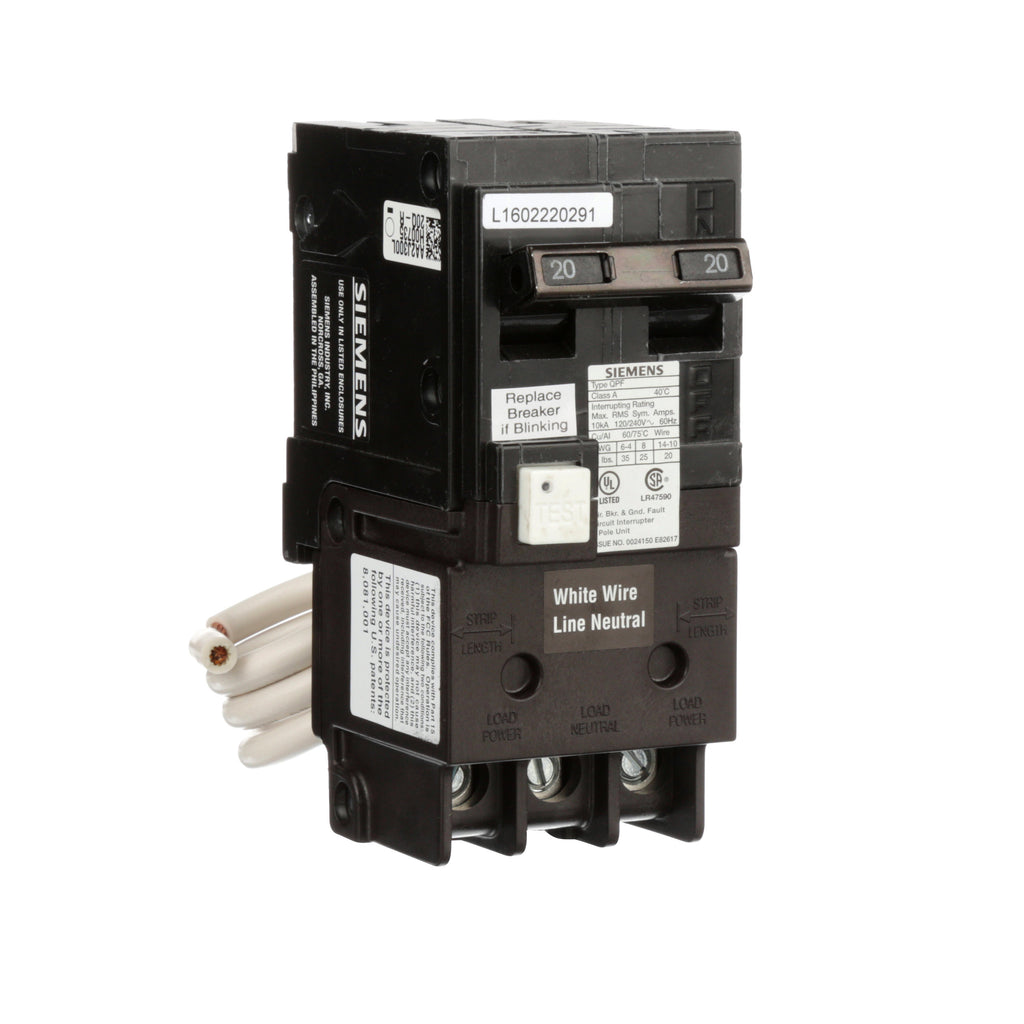

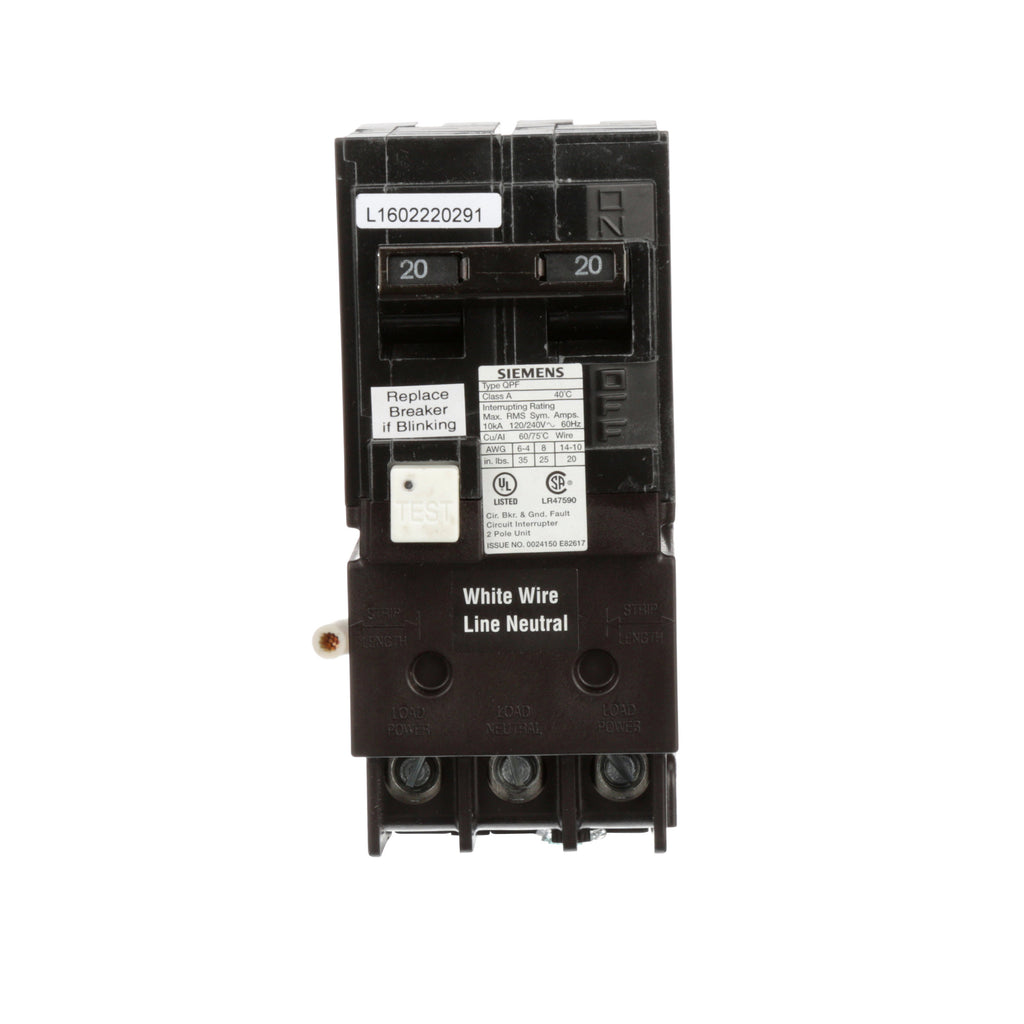

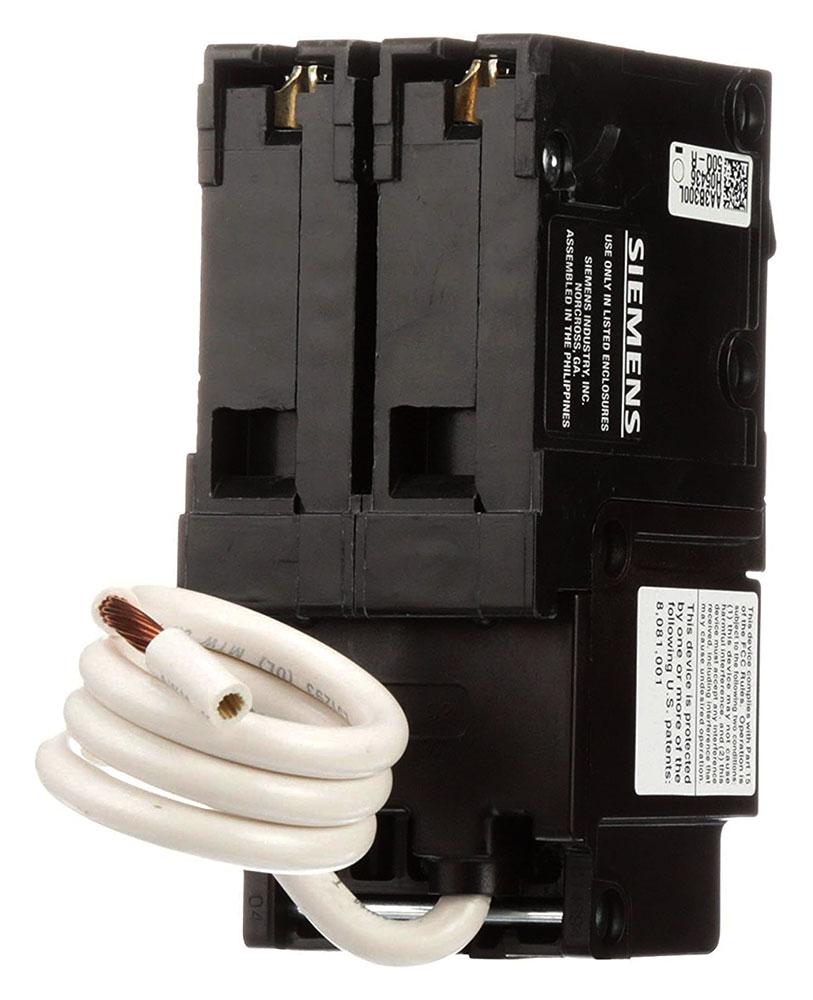

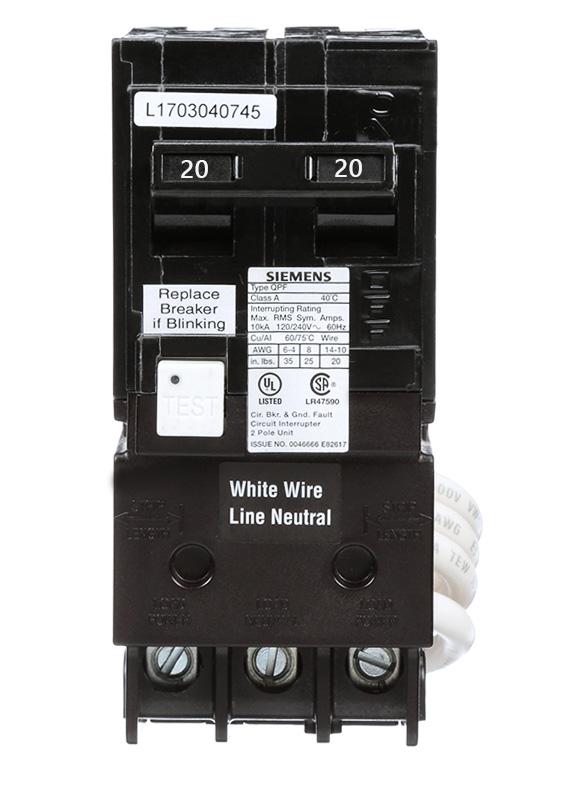

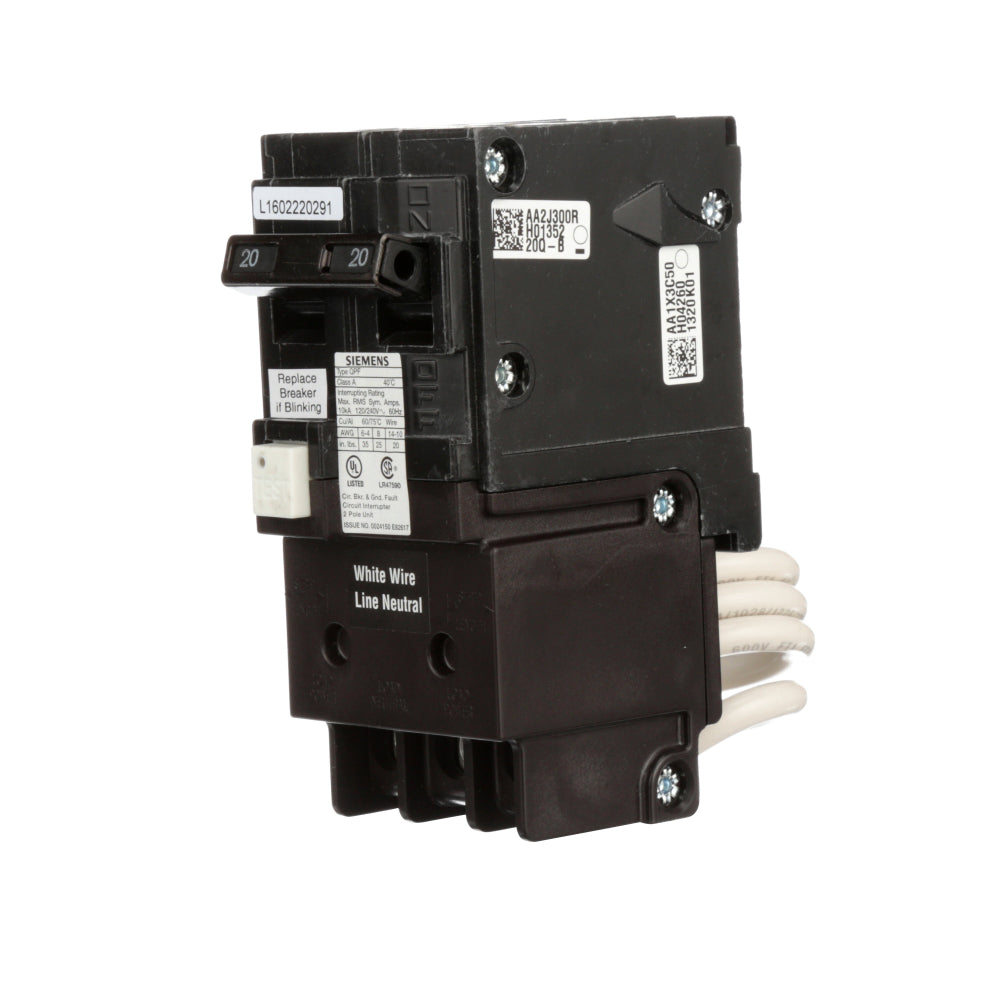

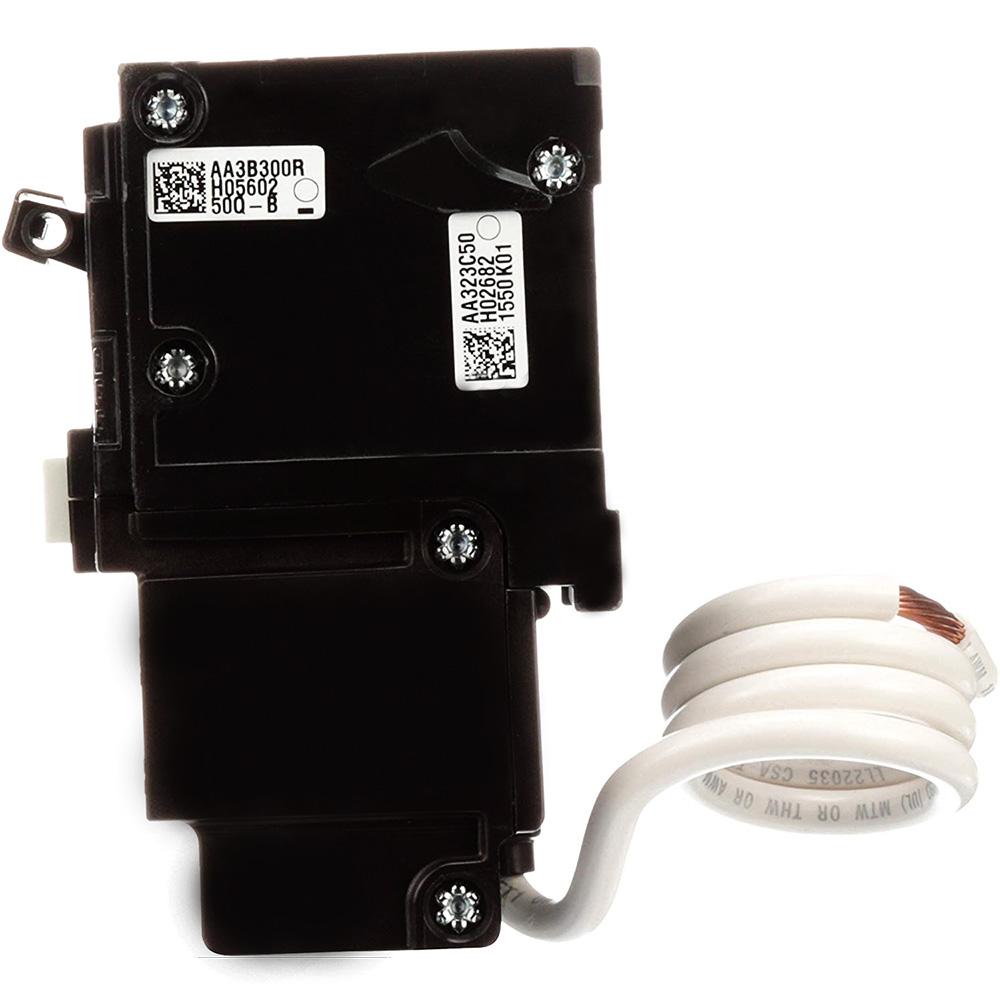

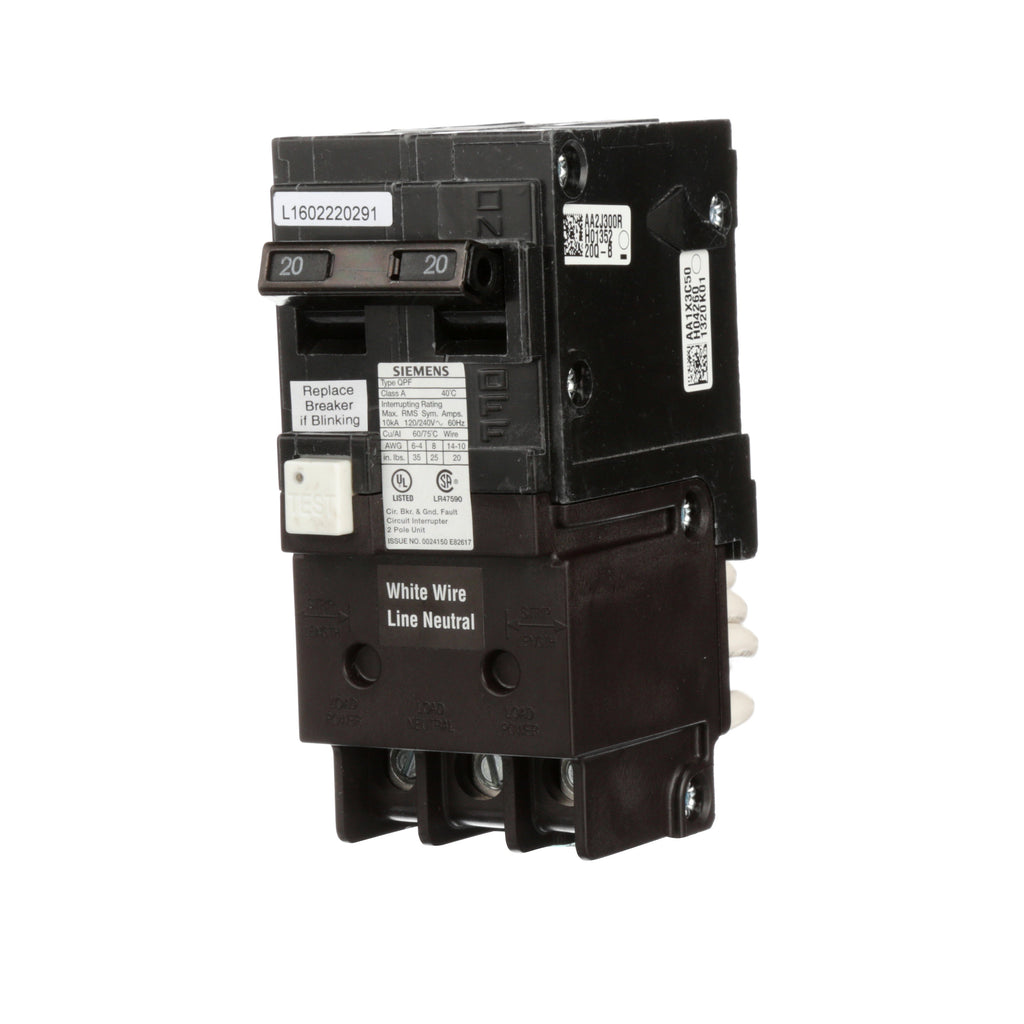

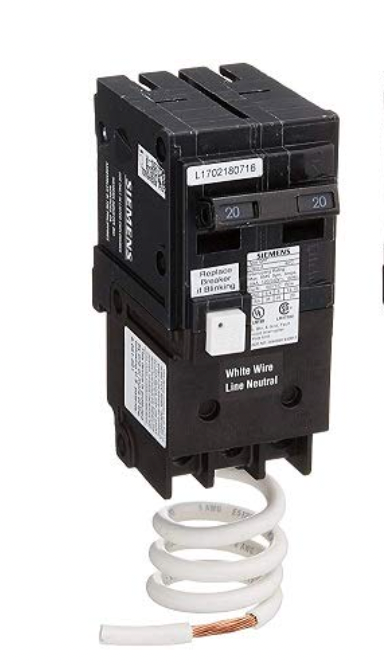

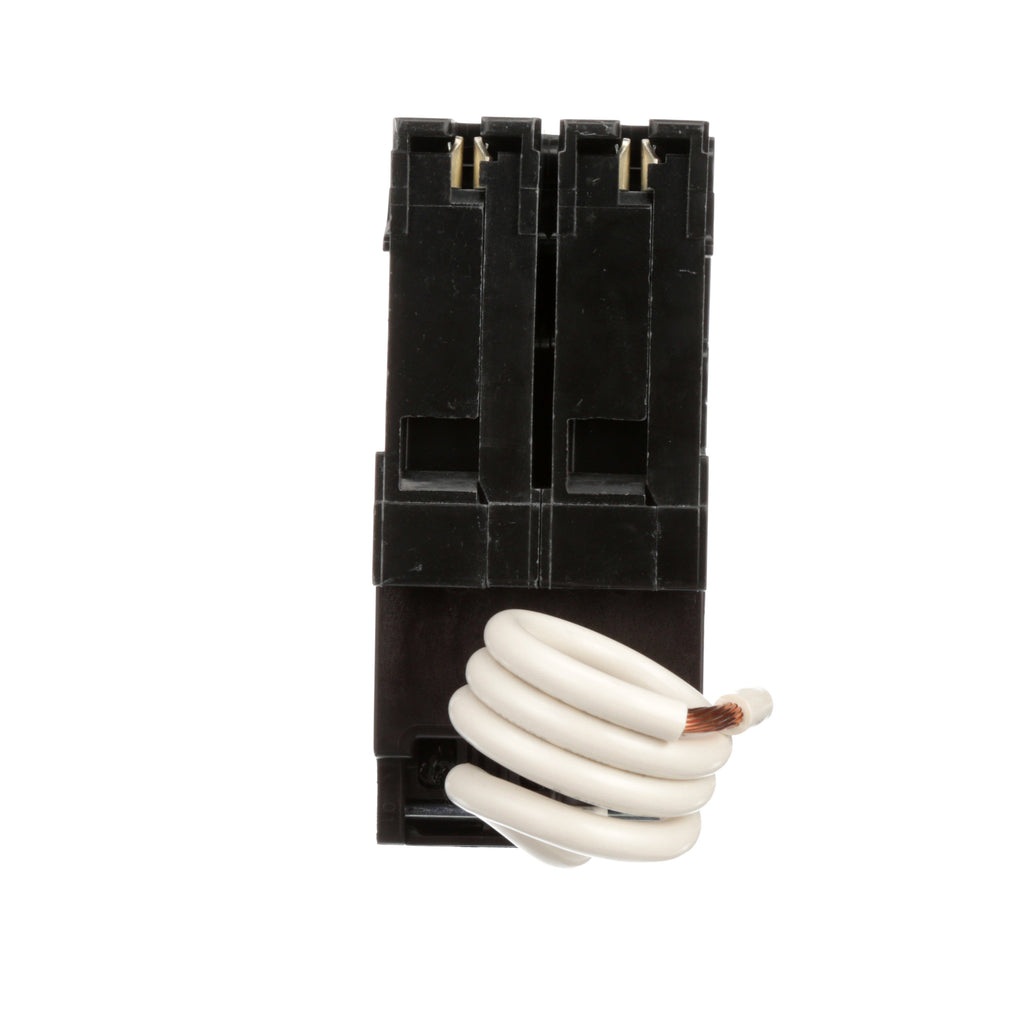

QF220A - Siemens 20 Amp 2 Pole 120/240V GFCI Circuit Breaker Plug-On Type Q Frame

QF220A

QF220A is a Siemens 20 Amp 2 Pole Ground Fault Circuit Breaker designed for 120/240 VAC systems with plug-on mounting.This Siemens QF220A circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It has a 10kA interrupting rating at 240V, is UL Listed and CSA Certified, and is suitable for Siemens load centers. The breaker provides ground fault protection with a 5mA sensitivity and is HACR rated for HVAC equipment.

• Amperage: 20 Amps
• Voltage Rating: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-On
• Interrupting Rating: 10kA at 240V
• Frame Type: Q Series
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Ground Fault Sensitivity: 5mA
• Certifications: UL Listed, CSA Certified
• Connection Type: Plug-In
• Phase: Single Phase
• HACR Rated: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QF220A
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QPF
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 225A/QF
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621216665
• GTIN : 00887621216665
• Country of Origin : Philippines
• Dimensions : 6.693 x 1.969 x 2.756 inch
• Weight : 0.992 lb
• Panel Type : Siemens Load Centers
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA Certified, HACR Rated, UL Listed
• Wire Size : 14 - 10 AWG (Copper) 12 - 8 AWG (Aluminium)
