Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QDP32225TM

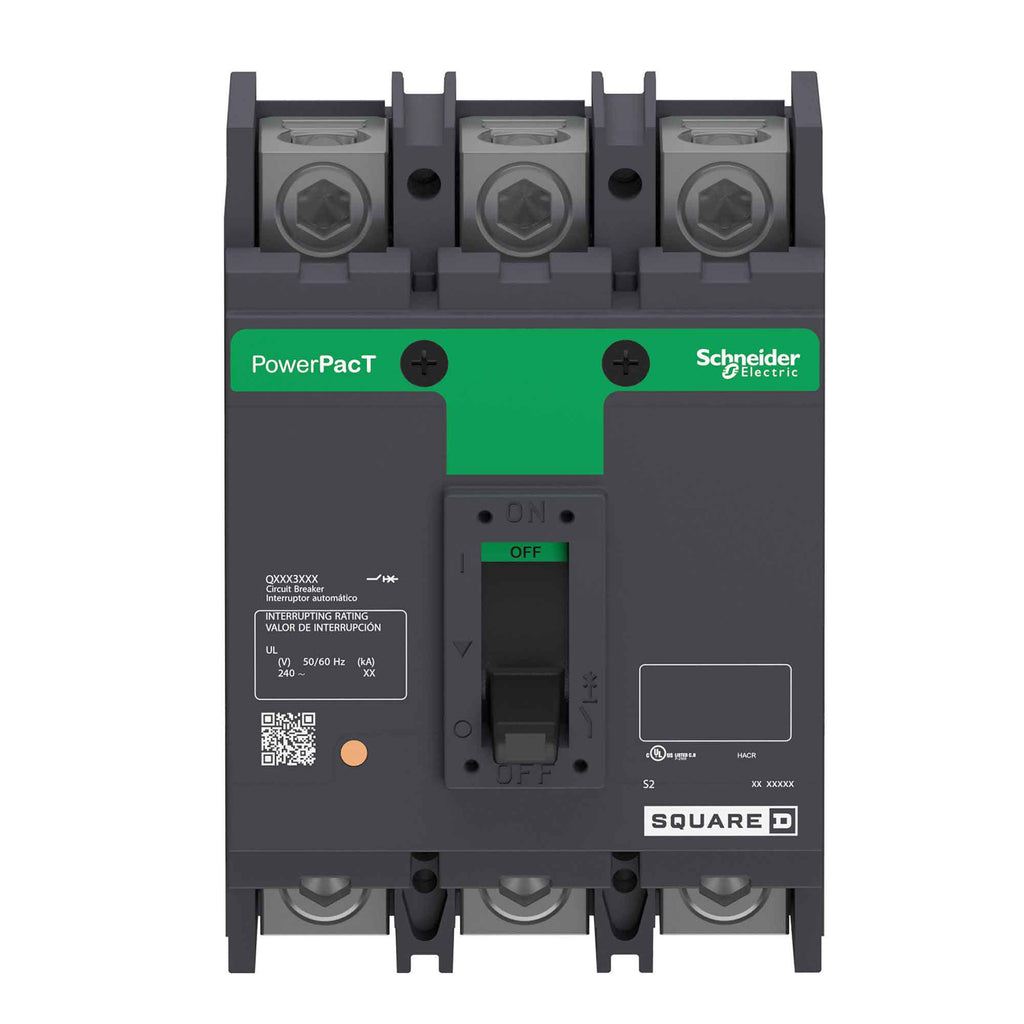

QDP32225TM is a Square D 3 pole, 225 amp, 240 volt bolt-on molded case circuit breaker from the Powerpact Q family.
This thermal magnetic circuit breaker features a 25kA interrupting rating at 240V, long-time and instantaneous trip functions (LI trip unit), and line side lug terminals with top feed main connections. It is UL listed and designed for reliable branch circuit protection in commercial and industrial applications.
- Key Specifications
- Manufacturer: Square D
- Part Number: QDP32225TM
- Amperage: 225A
- Voltage: 240V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA at 240V
- Series/Frame: Powerpact Q
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Certifications: UL Listed
- Part Number: QDP32225TM
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QDP
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 25kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug, Terminal Nut
- Frame Size : Q
- Protection : Thermal Magnetic
- UPC : 785901557357
- GTIN : 00785901557357
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 4.55
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
