Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QDP32090TM

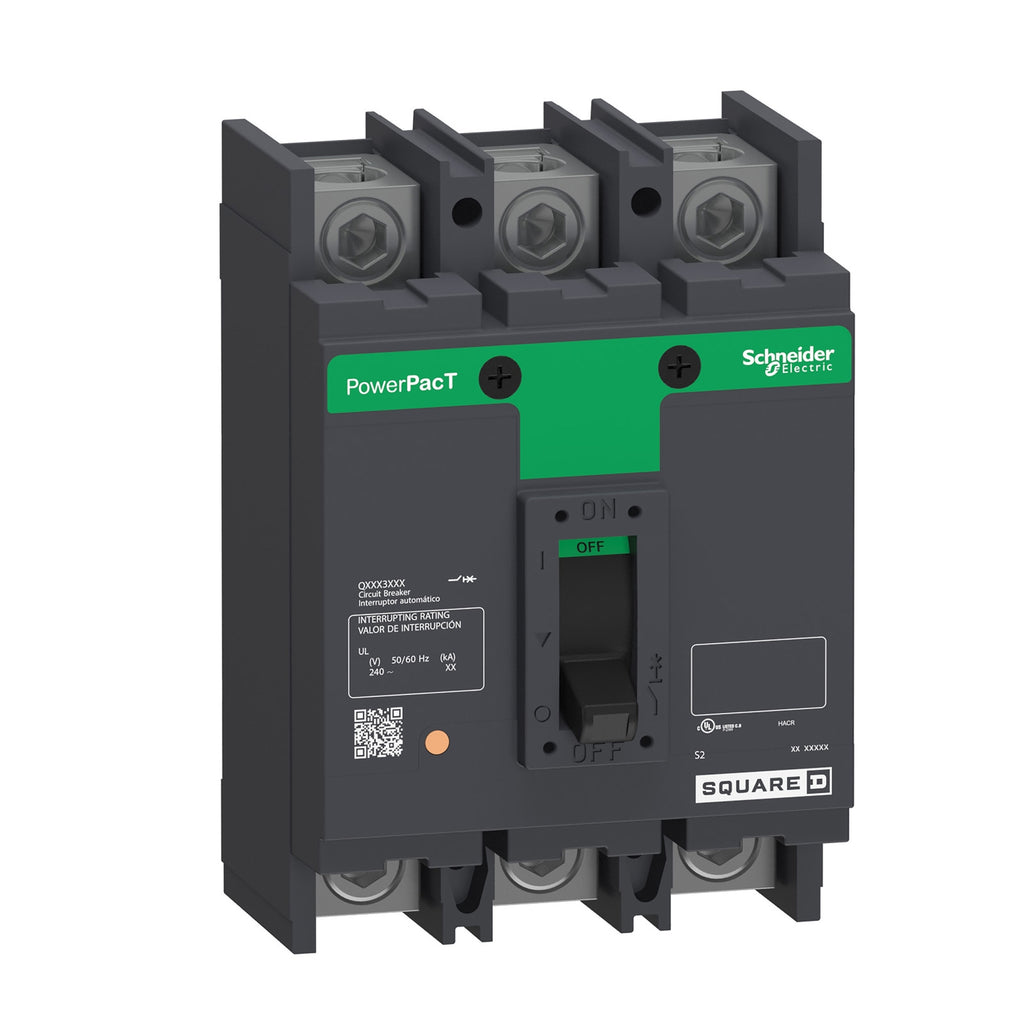

QDP32090TM is a Square D 3-pole thermal magnetic circuit breaker with a 90 amp rating designed for unit mounting in PowerPact Q frame applications.QDP32090TM provides reliable overcurrent protection with a 25kA interrupt rating at 240VAC and features a thermal magnetic trip unit for enhanced safety and performance. This molded case breaker is UL and CSA certified, suitable for branch circuit protection in commercial and industrial electrical systems.
- Amperage: 90A
- Voltage: 240VAC
- Poles: 3
- Mounting Type: Unit mount
- Interrupt Rating: 25kA at 240VAC
- Series/Frame: PowerPact Q
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed, CSA Certified
- Breaking Capacity Code: D
- Continuous Current Rating: 80%
- Lug Type: Stud with nut and washer
Specifications
- Part Number: QDP32090TM
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QDP
- Voltage : 240
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@240V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Lug, Terminal Nut
- Frame Size : Q
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901456070
- GTIN : 00785901456070
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 4.619
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
