QDP32070TM - Square D 70A 240V 3 Pole Bolt-On Molded Case Circuit Breaker, PowerPact QDP, 25kA Interrupt, Thermal Magnetic Trip, UL Listed

QDP32070TM

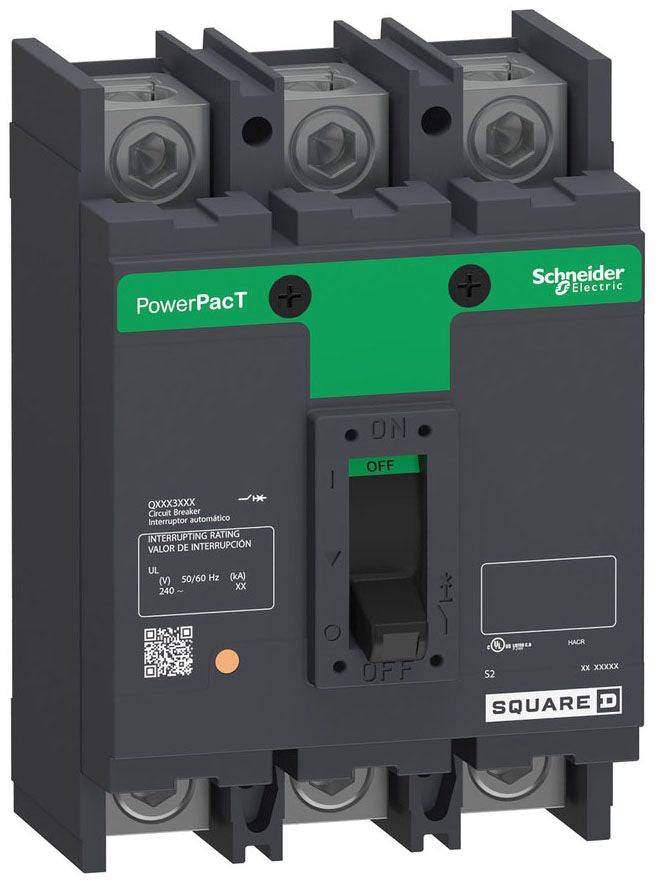

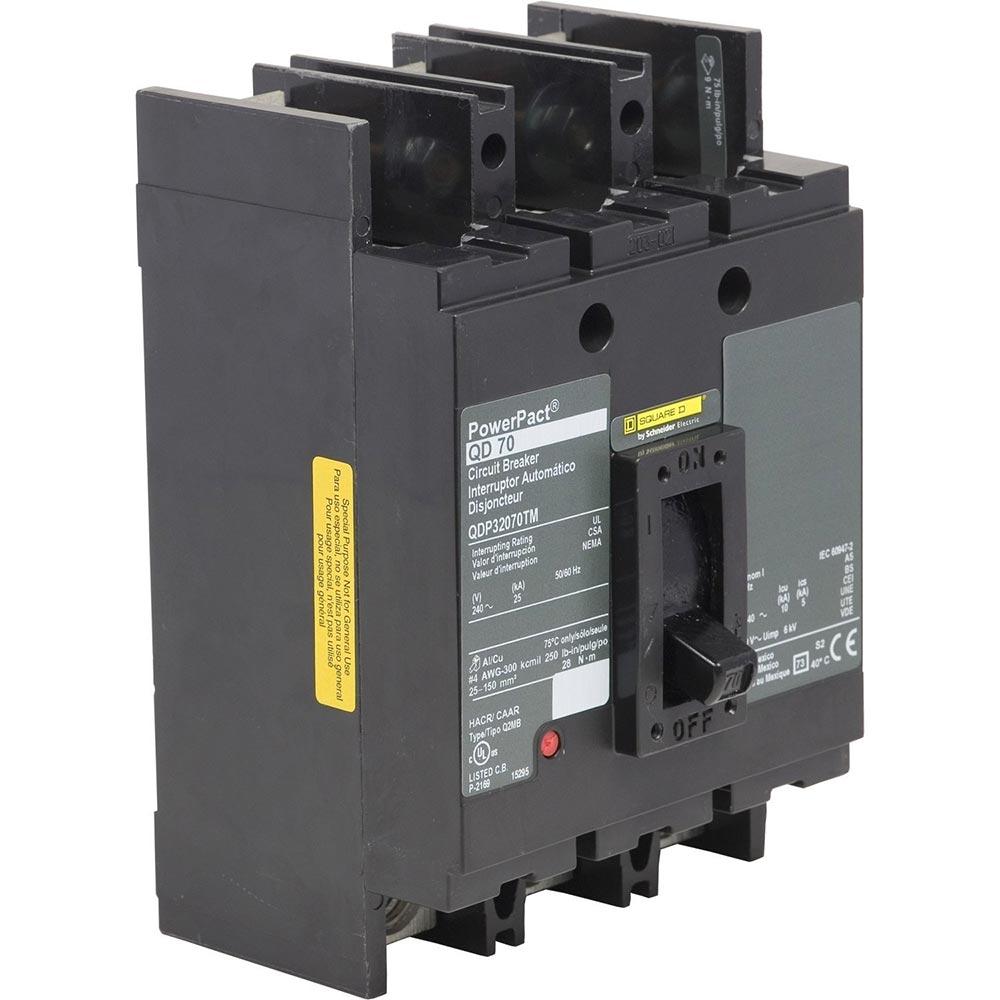

QDP32070TM is a Square D 3-pole, 70A, 240V molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a bolt-on mounting style, non-interchangeable trip unit, and is part of the PowerPact QDP series. It is UL listed and CSA certified, ensuring compliance with industry standards for safety and performance. Suitable for use in panelboards and switchboards, it offers robust protection with a 25kA interrupting rating at 240V AC.

Key Specifications
• Amperage: 70A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 25kA at 240V
• Series/Frame: PowerPact QDP
• Trip Unit: Thermal magnetic, non-interchangeable
• Certifications: UL listed, CSA
• Termination: Line side lug terminals
• Application: Branch circuit protection
• Dimensions: 4.5" W x 3.93" D x 6.47" H
• Wire Range: 4 AWG to 300 kcmil

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDP32070TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDP
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901678229
• GTIN : 00785901678229
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.57
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...300 kcmil aluminium/copper
