Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QDP22150TM

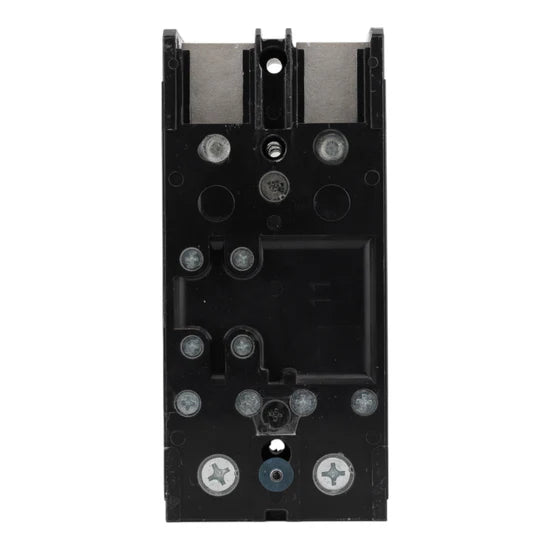

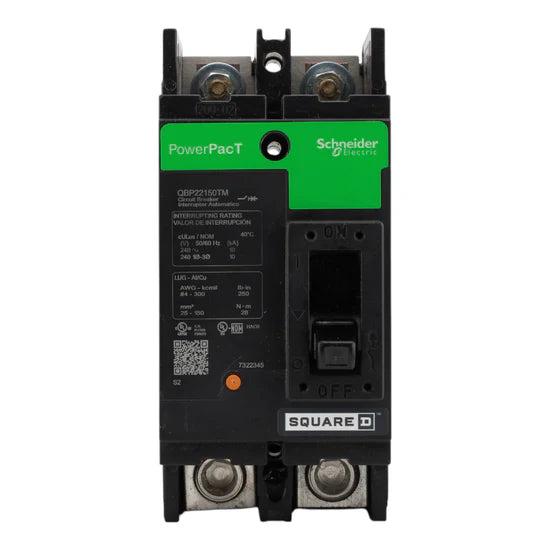

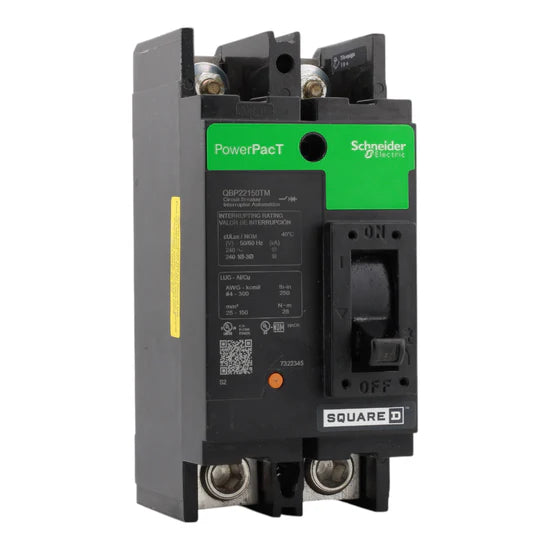

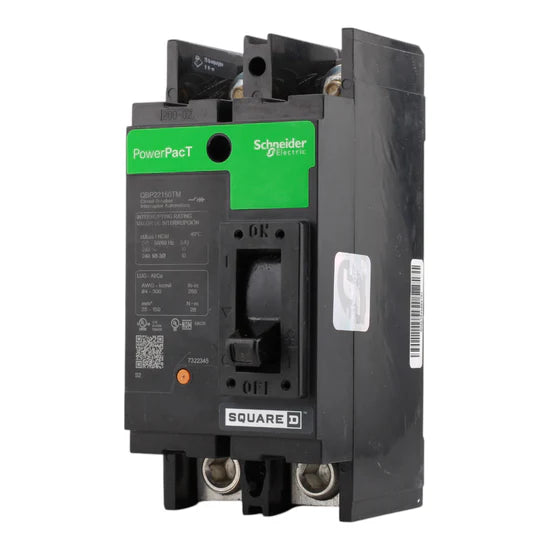

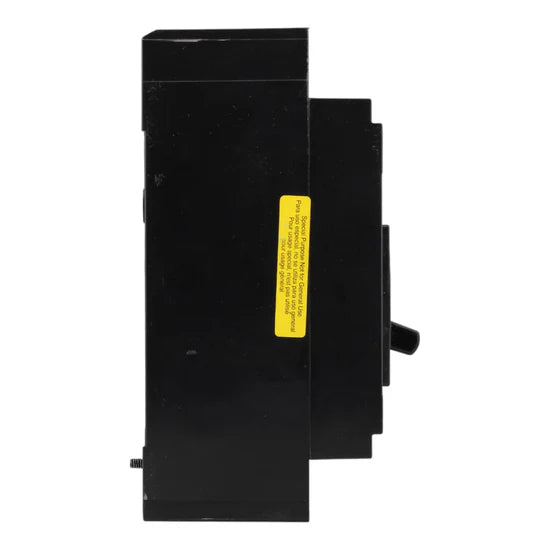

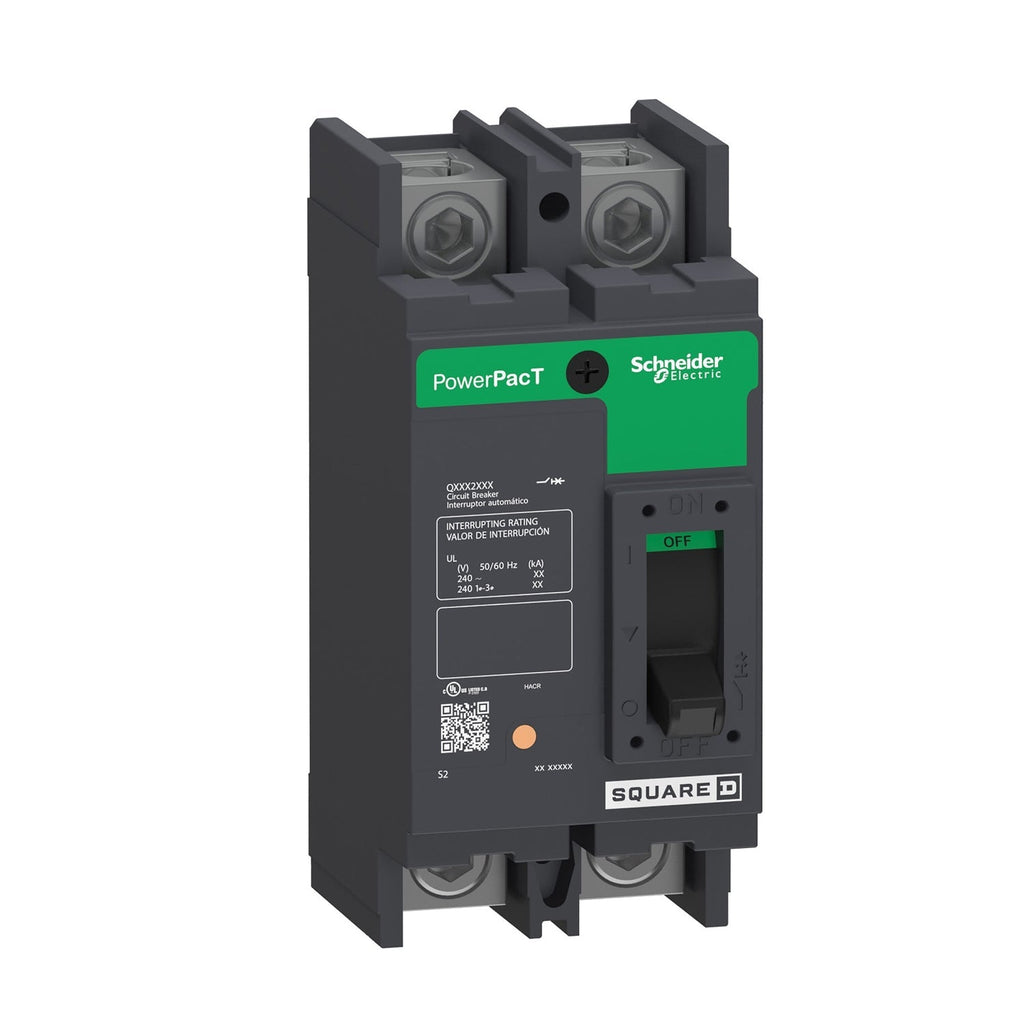

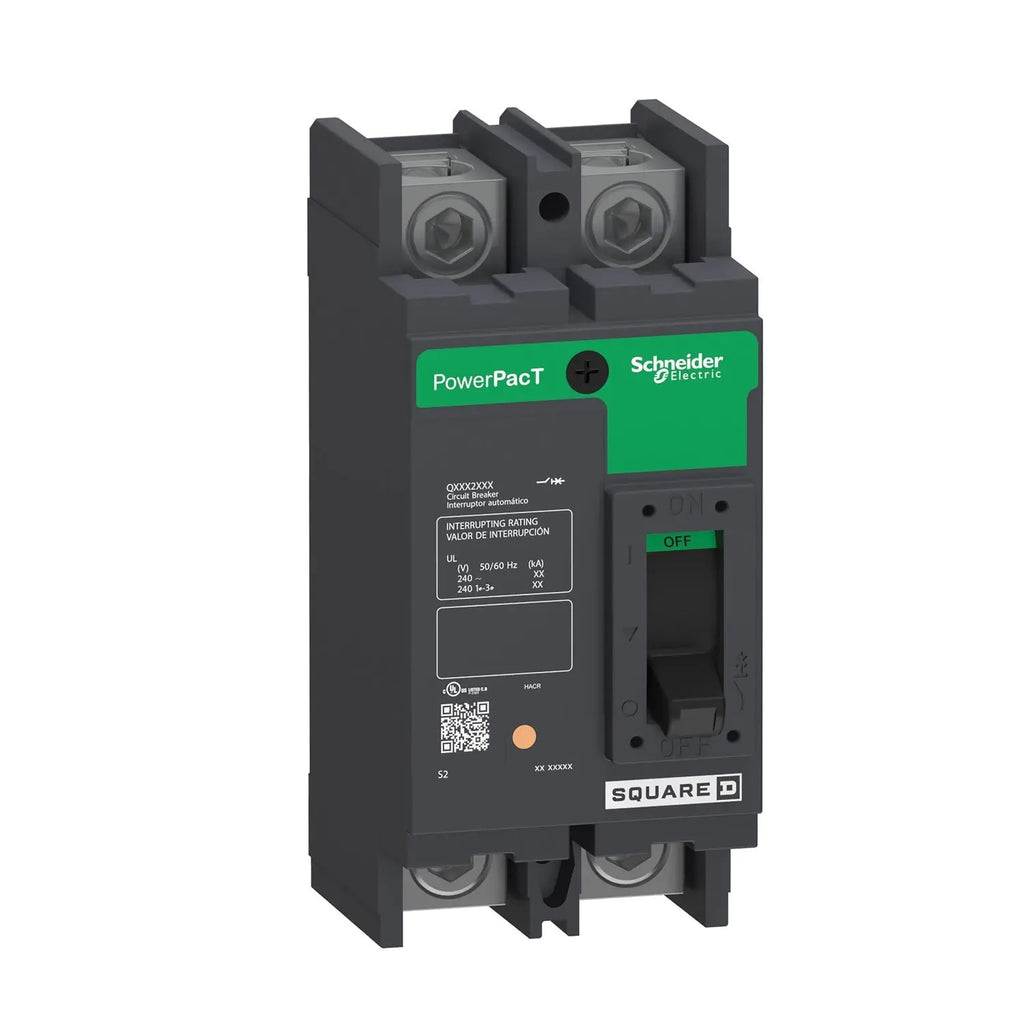

QDP22150TM is a Square D 2 pole thermal magnetic molded case circuit breaker rated for 150 amps and 240 volts with bolt-on mounting.This circuit breaker features a 25kA interrupting rating at 240VAC, long time and instantaneous trip functions, and line side lug terminals with top feed main. It is UL listed and designed for reliable branch circuit protection in commercial and industrial applications.
- Manufacturer: Square D (Schneider Electric)
- Series/Frame: QDP
- Amperage: 150A
- Voltage: 240V AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA at 240VAC
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
- UL Listed
- Line Side Lug Terminals, Top Feed Main
- Dimensions: Approx. 3" W x 3.93" D x 6.47" H
Specifications
- Part Number: QDP22150TM
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QDP
- Voltage : 240
- Amperage : 150
- Phase : 1
- Poles : 2
- AIC rating : 25kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug, Terminal Nut
- Frame Size : Q
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78590166239
- GTIN : 00078590166239
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 3.25
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
