QDP22100TM - Square D 100A 2 Pole 240V Molded Case Circuit Breaker, PowerPact Q Frame, Thermal Magnetic Trip, Bolt-On, 25kA Interrupt

QDP22100TM

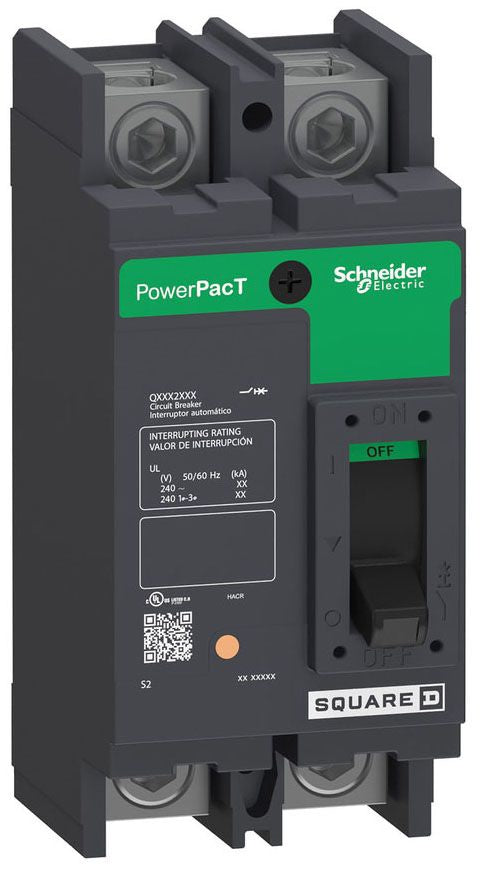

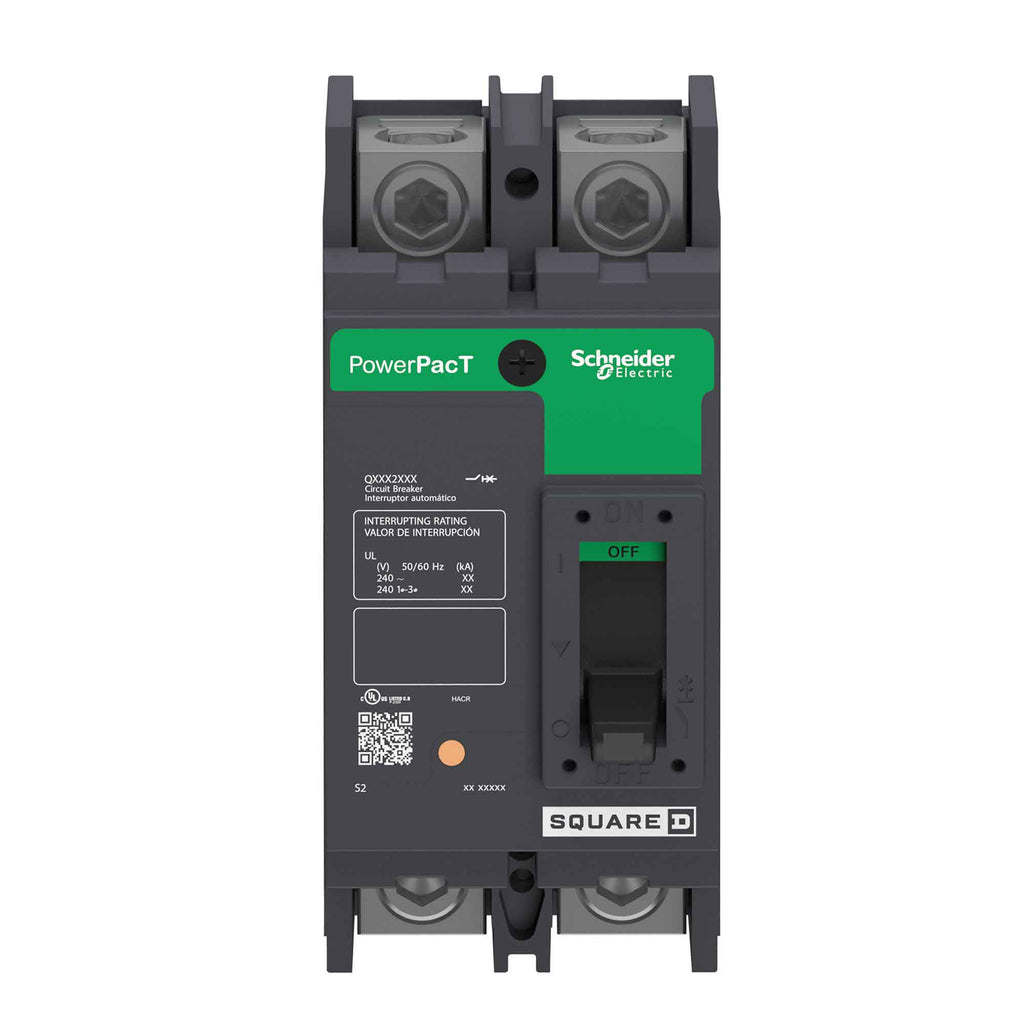

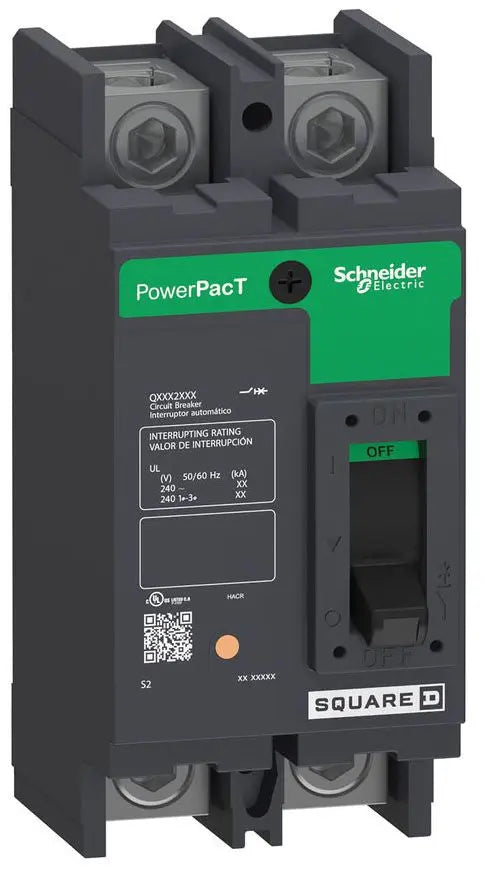

QDP22100TM is a Square D 2-pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic trip unit circuit breaker features a 100A current rating, 240V voltage rating, and a robust PowerPact Q frame. It offers a high interrupting rating of 25kA at 240VAC, making it suitable for demanding electrical environments. The QDP22100TM uses a bolt-on mounting type for secure installation and is commonly used in meter centers and panelboards.

Key Specifications
• Part Number: QDP22100TM
• Manufacturer: Square D
• Series/Frame: PowerPact Q
• Amperage: 100A
• Voltage: 240VAC
• Number of Poles: 2
• Mounting Type: Bolt-On (Unit Mount)
• Interrupt Rating: 25kA at 240VAC
• Trip Unit: Thermal Magnetic
• Terminal Type: Stud Line, Lug Load
• Wire Size: 4 AWG to 300 KCMIL (Copper/Aluminum)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDP22100TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDP
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901702849
• GTIN : 00785901702849
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.219
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : 1/0 AWG Copper, 250/600KCmil Aluminum
