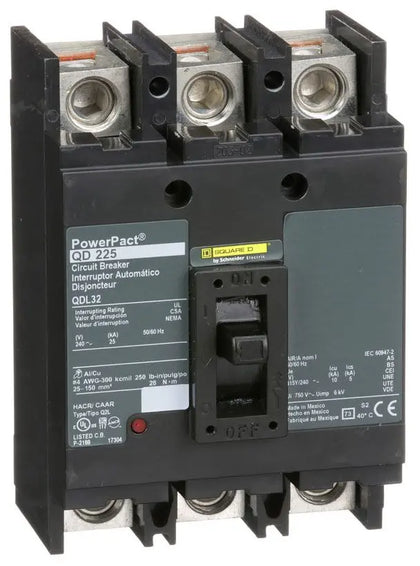

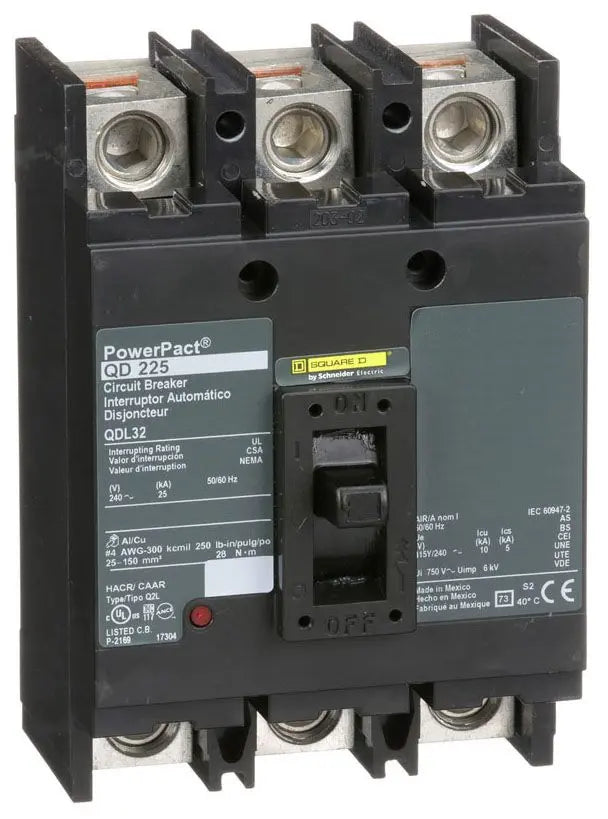

QDL32175 - Square D 175A 240V 3 Pole PowerPact QD Molded Case Circuit Breaker Thermal Magnetic 25kA Interrupt

QDL32175

QDL32175 is a Square D PowerPact QD molded case circuit breaker designed for reliable overcurrent protection in 3-phase electrical systems.This 175 amp, 3 pole breaker operates at 240 volts AC with a 25 kiloamp interrupt rating. It features a thermal magnetic trip unit, toggle actuator, and unit mounting type. The breaker supports line/load lug connections and wire sizes from 4 AWG to 300 kcmil. It is UL 489 listed and CSA certified, suitable for panelboard and switchboard applications.

• Amperage: 175 A
• Voltage: 240 VAC
• Poles: 3
• Interrupt Rating: 25 kA
• Frame/Series: PowerPact QD
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Connection Type: Line/Load Lugs
• Wire Size Range: 4 AWG to 300 kcmil
• Frequency: 50/60 Hz
• Dimensions: 3.93 in L x 4.5 in W x 6.47 in H
• Certifications: UL 489, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL32175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901523062
• GTIN : 00785901523062
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.74
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
