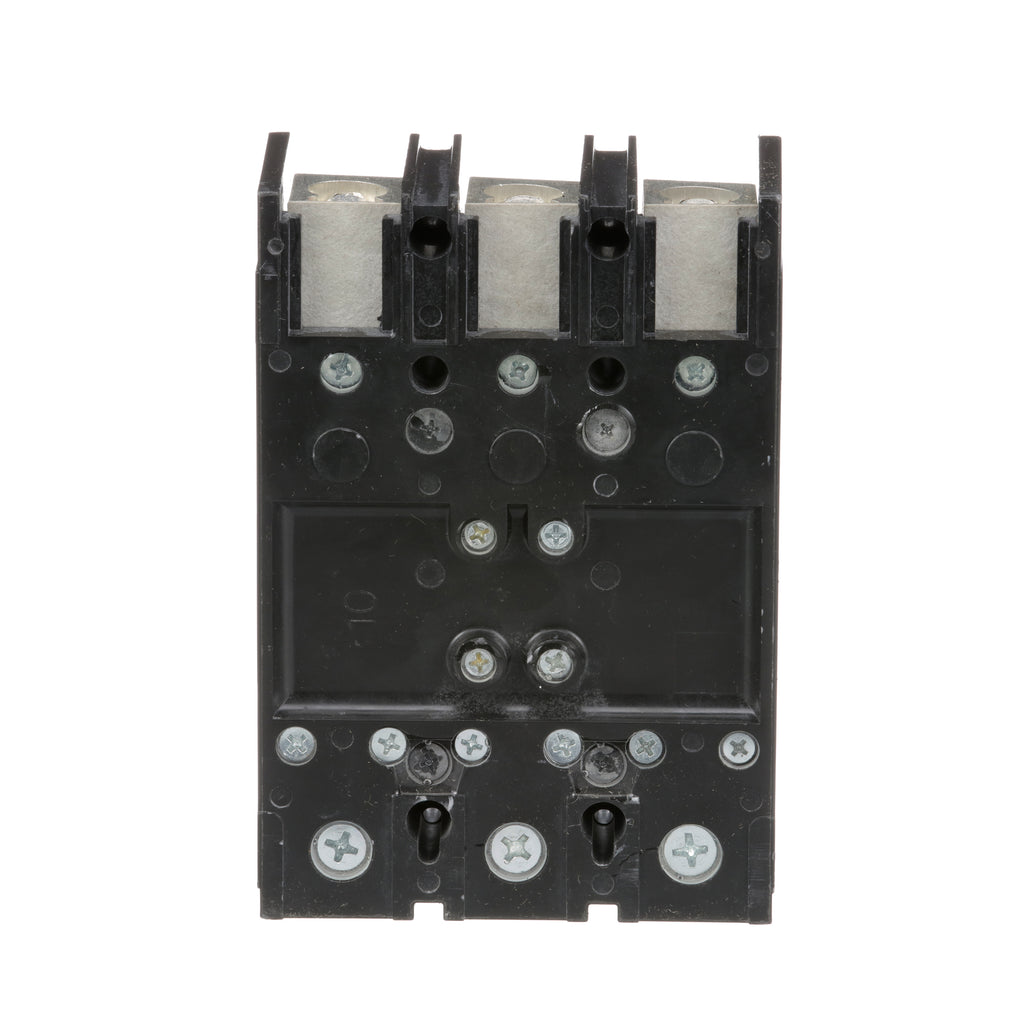

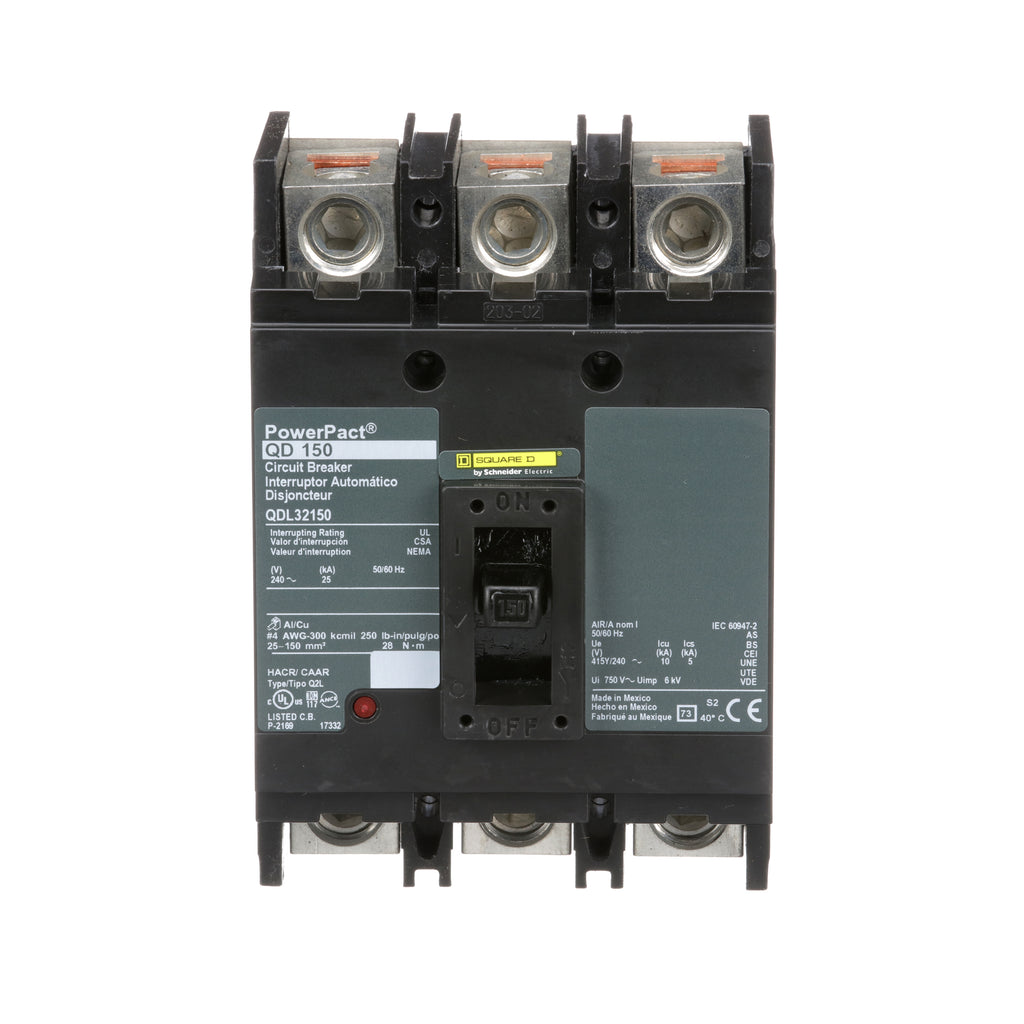

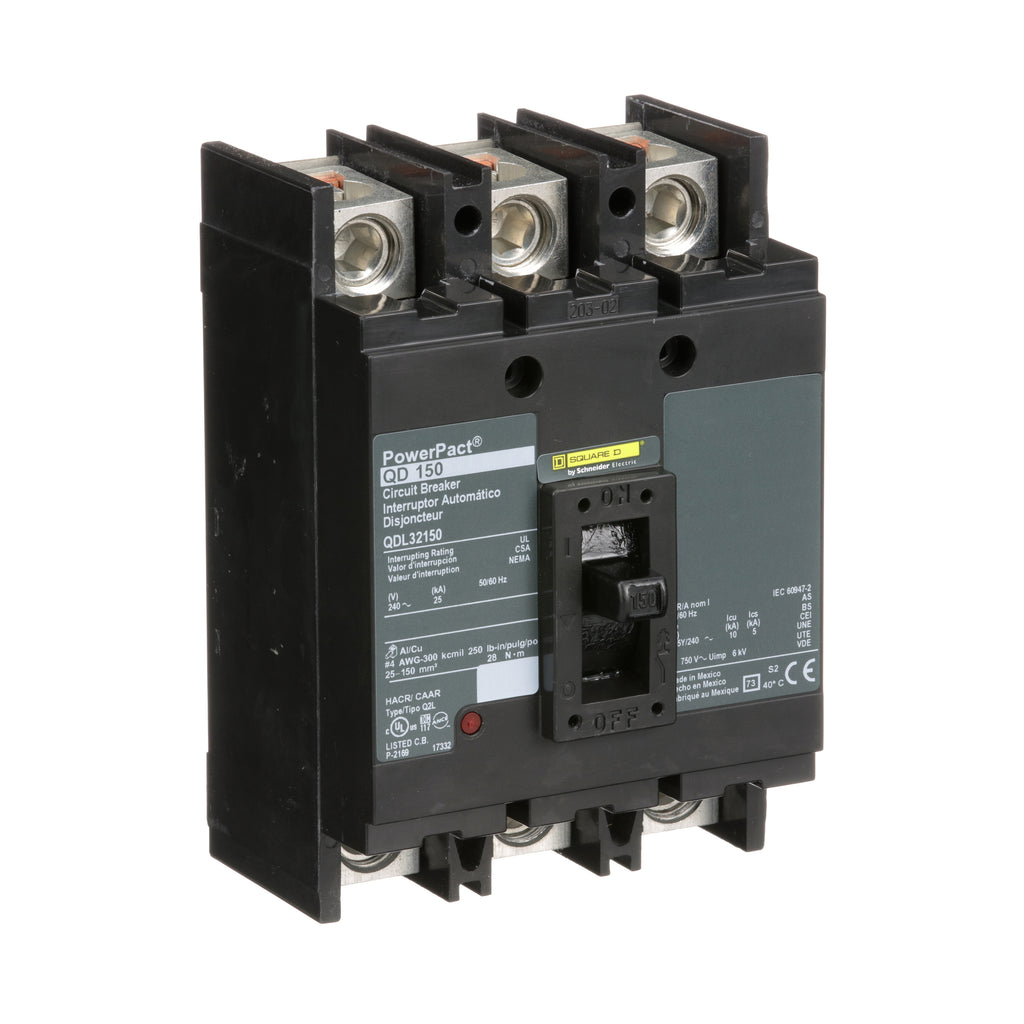

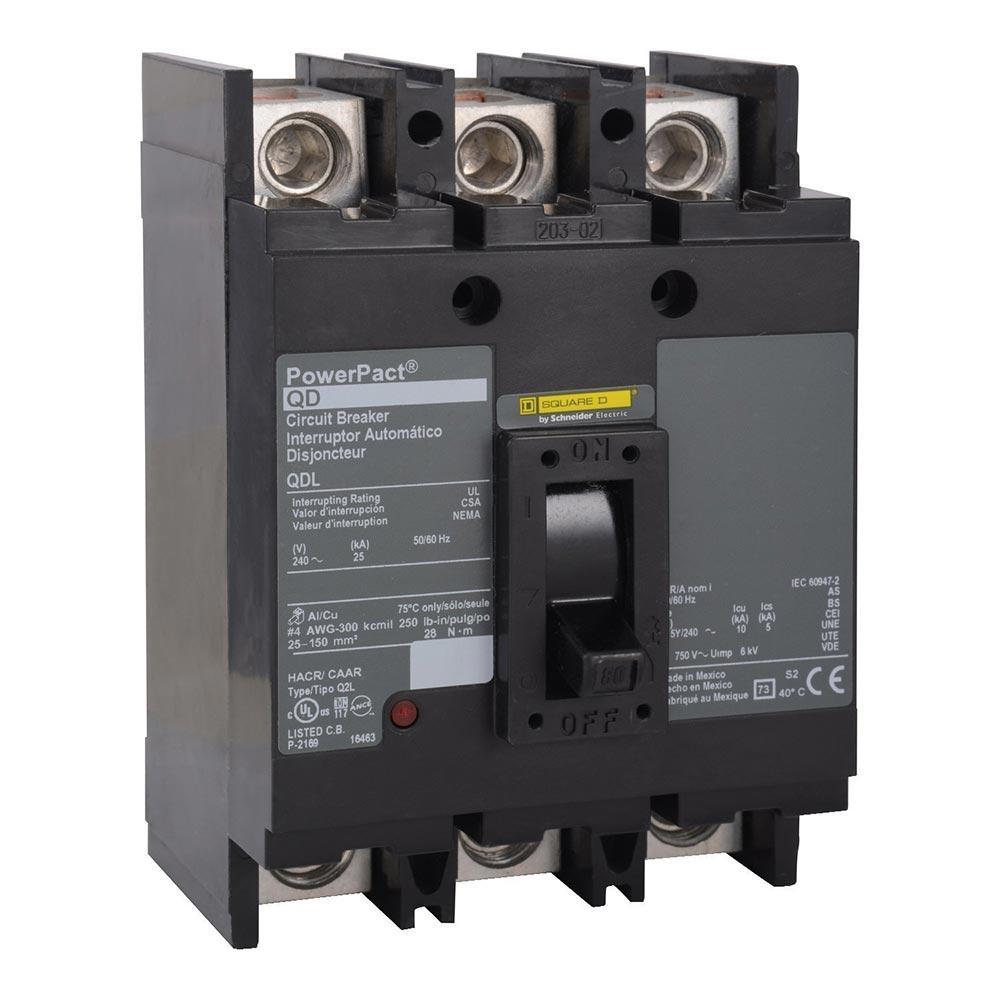

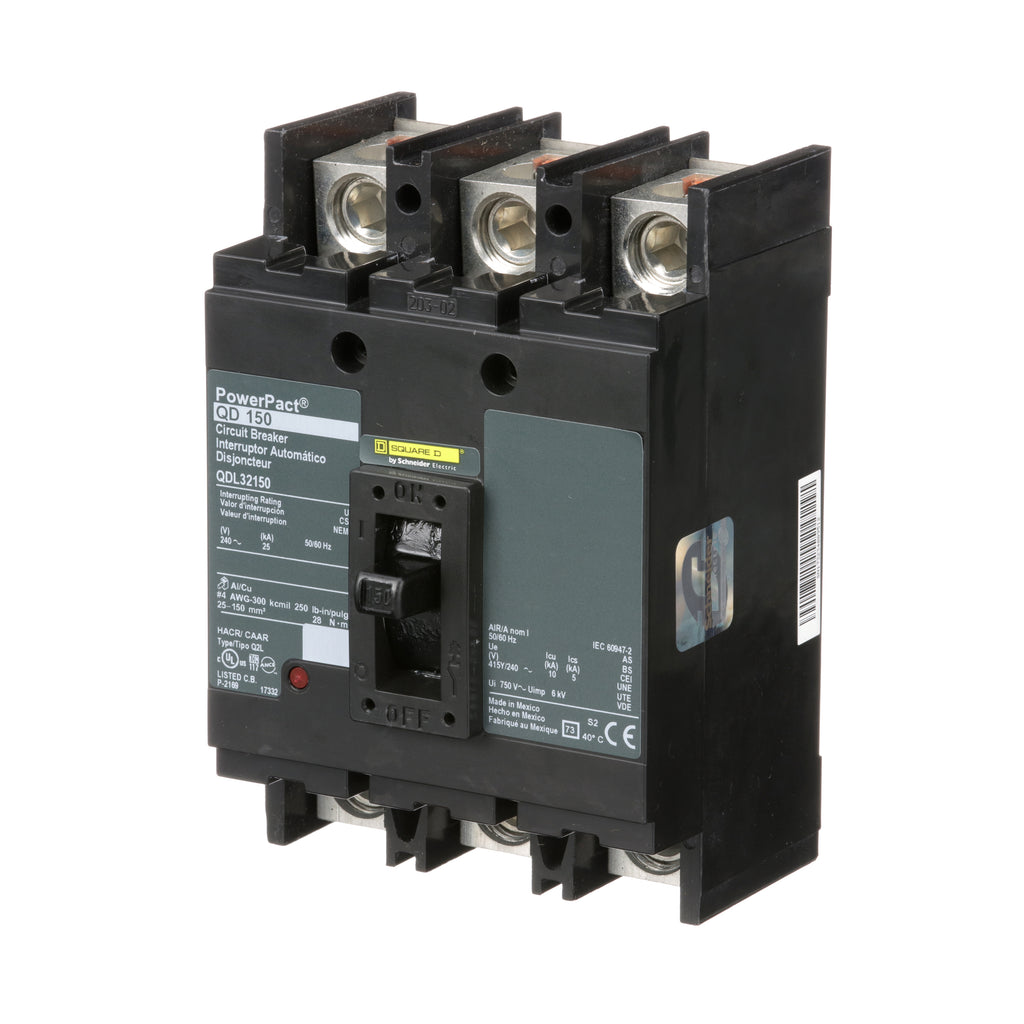

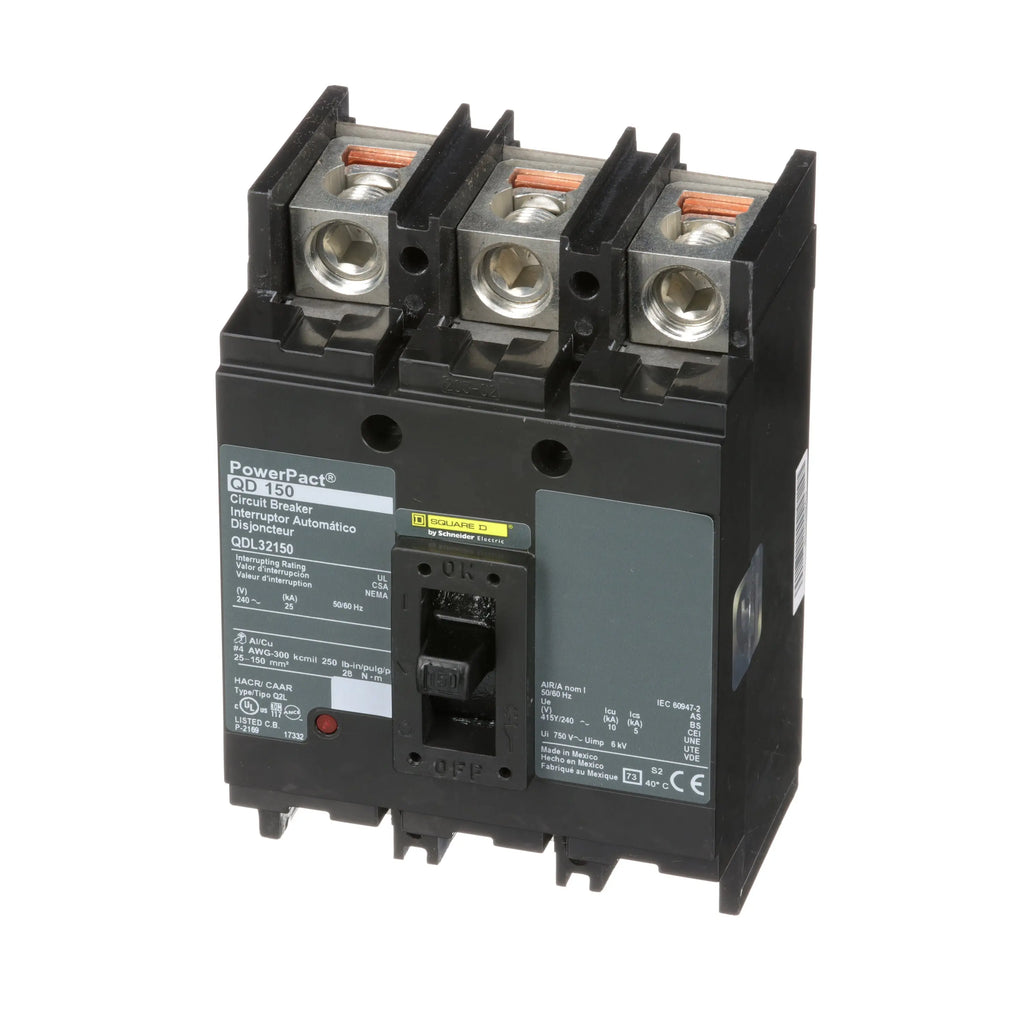

QDL32150 - Square D 150A 3 Pole 240VAC QDL Frame Thermal Magnetic Circuit Breaker

QDL32150

QDL32150 is a Square D 150 Amp, 3 Pole, 240 Volt AC molded case circuit breaker with a QDL frame and thermal magnetic trip unit.This circuit breaker provides reliable overcurrent protection with a 25kA interrupting rating at 240VAC. It features line and load side lug terminals for easy installation and is UL 489, CSA, and IEC certified. The breaker supports 80% continuous current rating and has a magnetic trip current of 2400A. It is designed for use in PowerPacT Q applications.

• Manufacturer: Square D
• Part Number: QDL32150
• Amperage: 150A
• Voltage: 240VAC
• Poles: 3
• Frame Type: QDL
• Interrupt Rating: 25kA at 240VAC
• Trip Unit: Thermal Magnetic
• Terminal Type: Line and Load Lug
• Certifications: UL 489, CSA, IEC
• Continuous Current Rating: 80%
• Magnetic Trip Current: 2400A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL32150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901662648
• GTIN : 00785901662648
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.78
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
