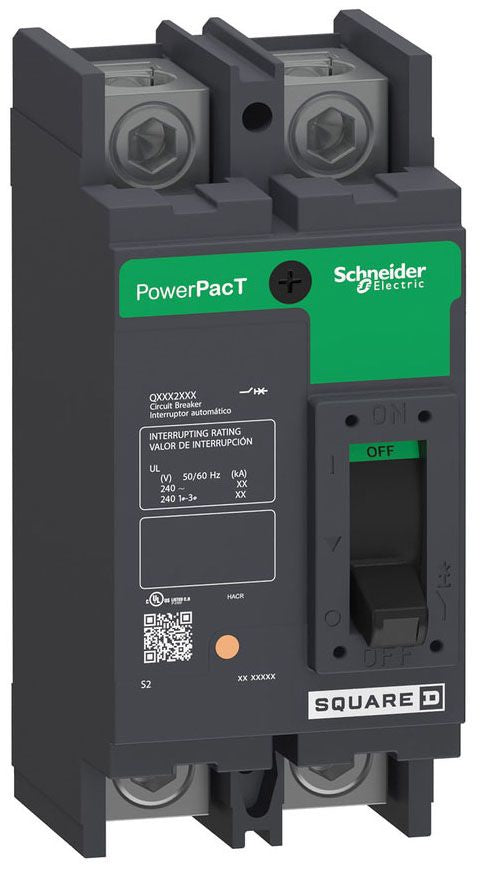

QDL22225 - Square D 225 Amp 2 Pole 240V Powerpact Q Molded Case Circuit Breaker

QDL22225

QDL22225 is a Square D Powerpact Q molded case circuit breaker designed for reliable electrical protection.This 2-pole breaker features a 225 amp rating, 240 volt capacity, and a 25 kA interrupt rating, making it suitable for panelboard and switchboard applications. It includes a thermal magnetic trip unit with a trip range of 1200 to 2400 amps and supports line/load lug connections. The breaker is UL 489 listed and built with a Q frame for durability and performance.

Key Specifications
• Amperage: 225 A
• Voltage Rating: 240 VAC
• Number of Poles: 2
• Interrupt Rating: 25 kA
• Frame Type: Q
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Wire Size Range: 4 AWG to 300 kcmil Al/Cu
• Frequency: 50/60 Hz
• Enclosure Type: NEMA AB1
• Certifications: UL 489 Listed
• Country of Origin: US

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL22225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901702894
• GTIN : 00785901702894
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.47
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
