Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QDA32225

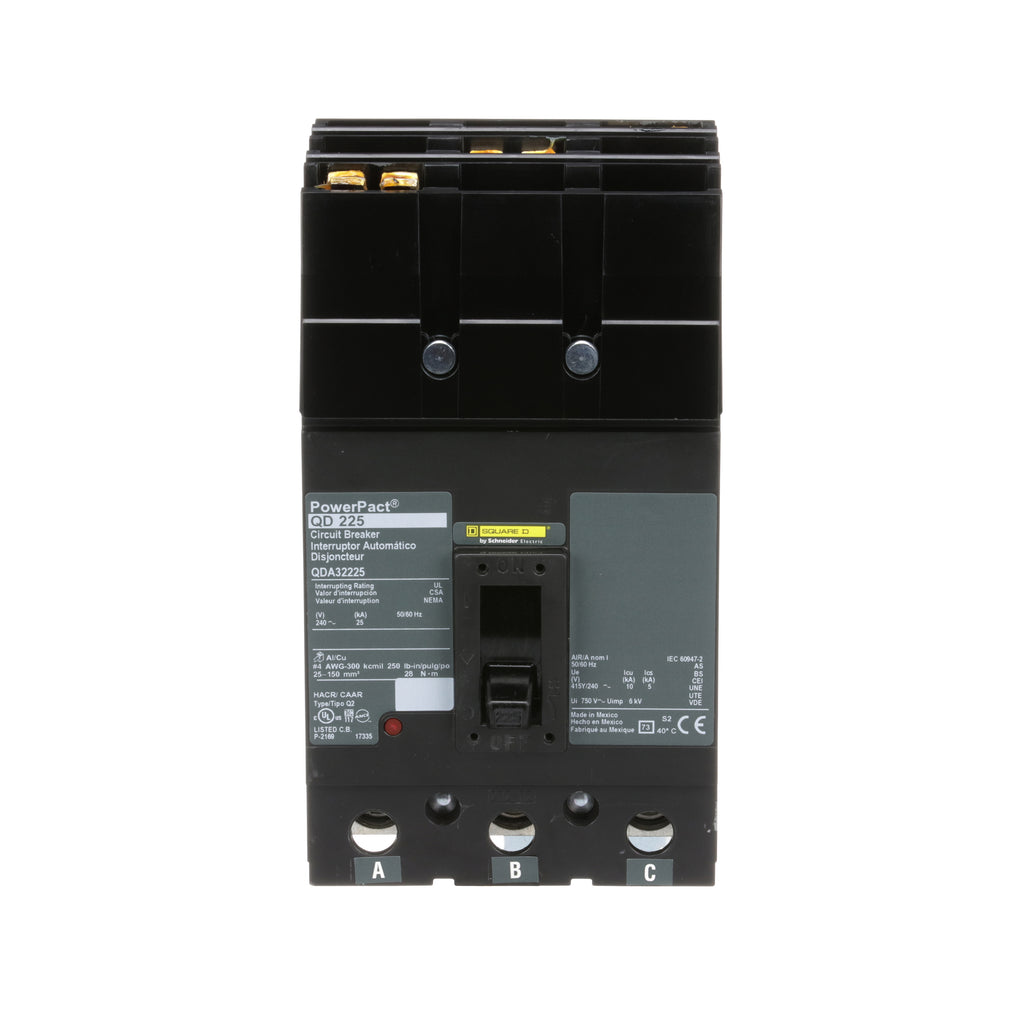

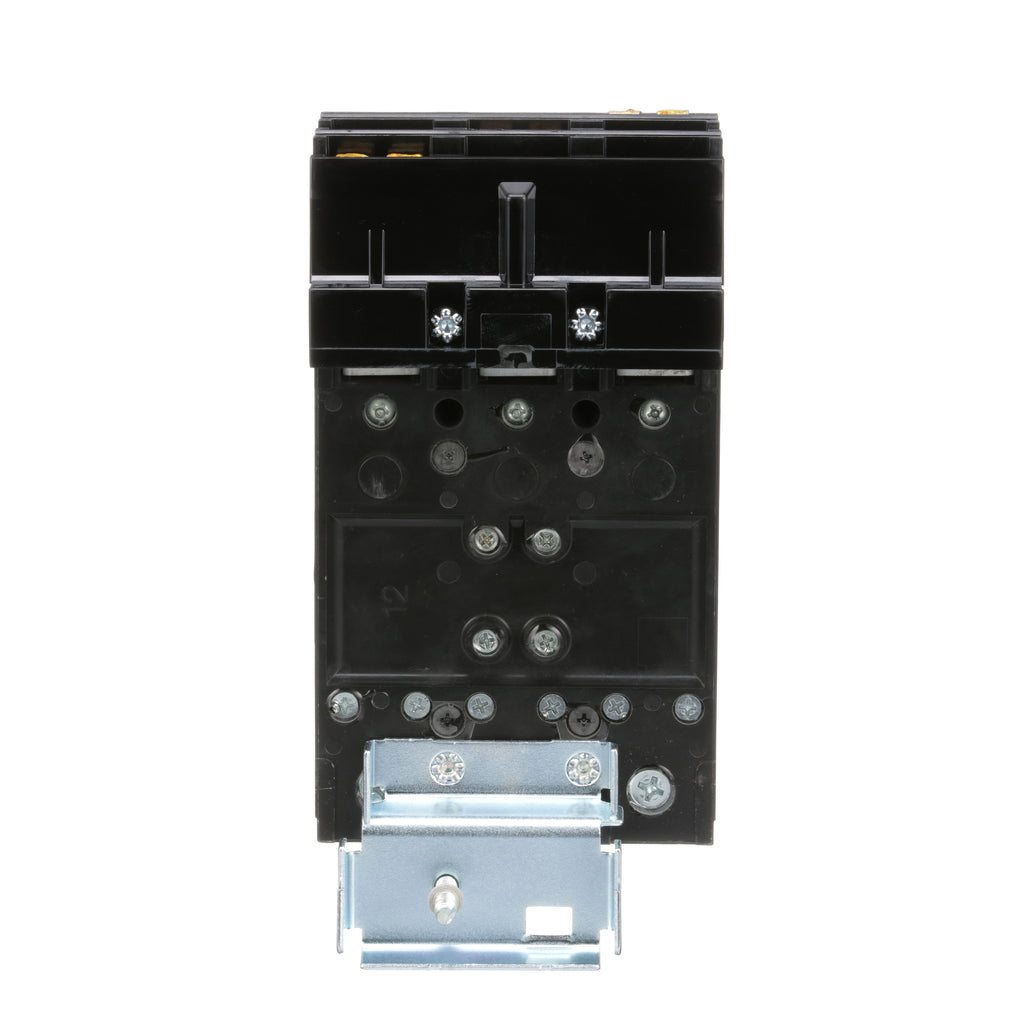

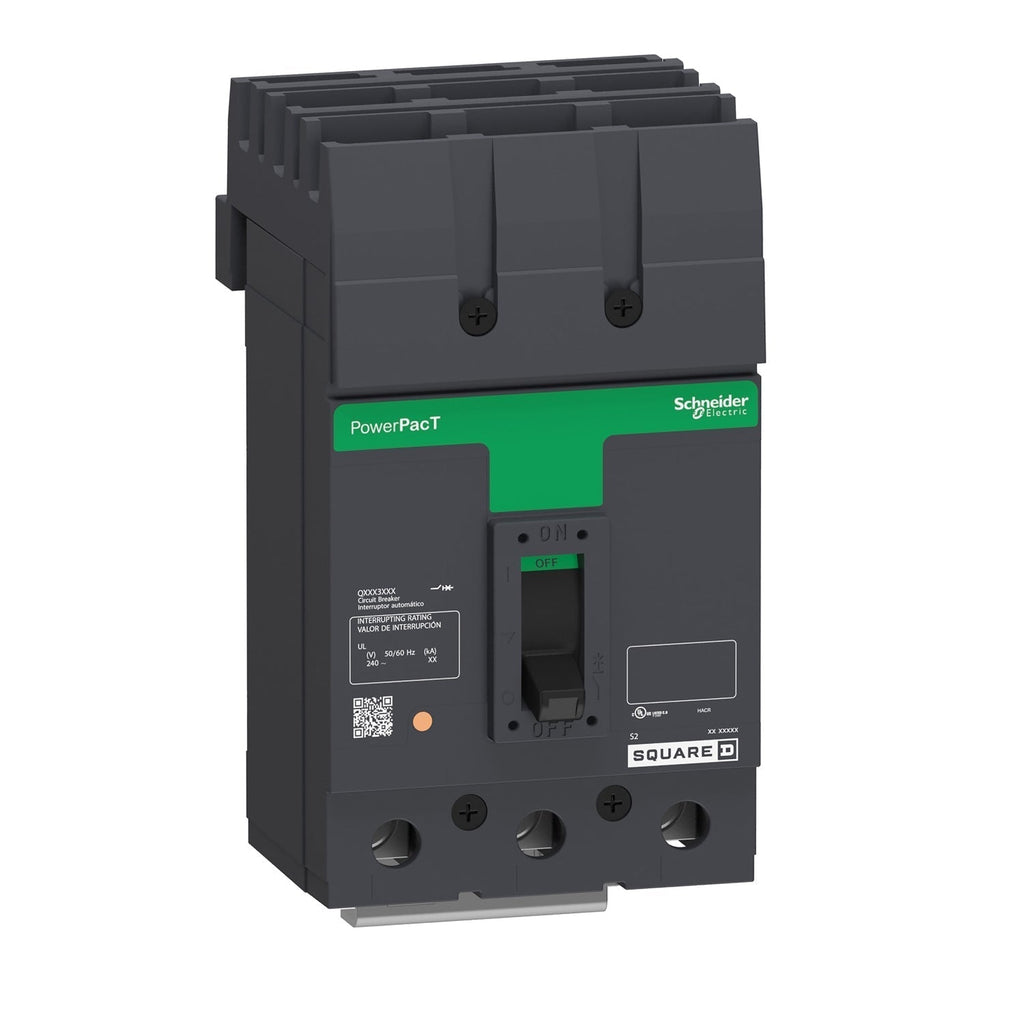

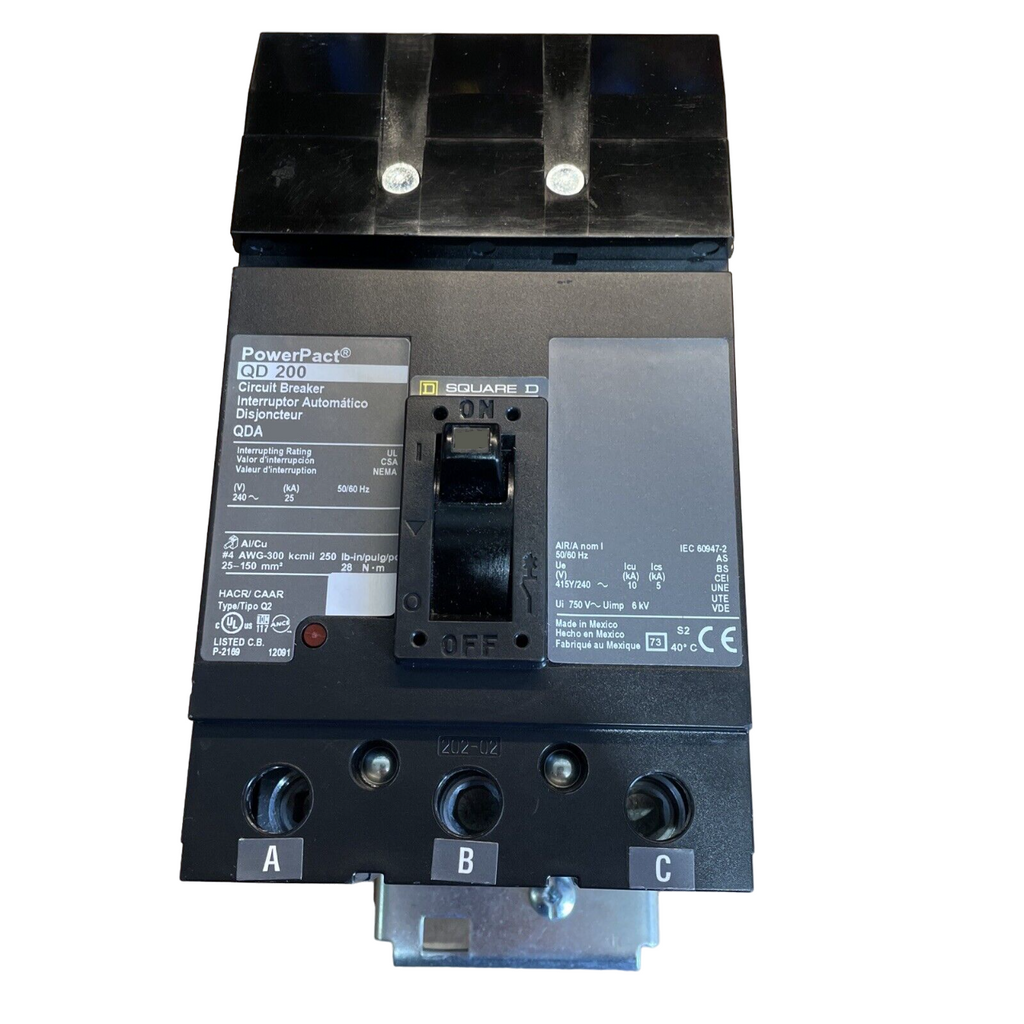

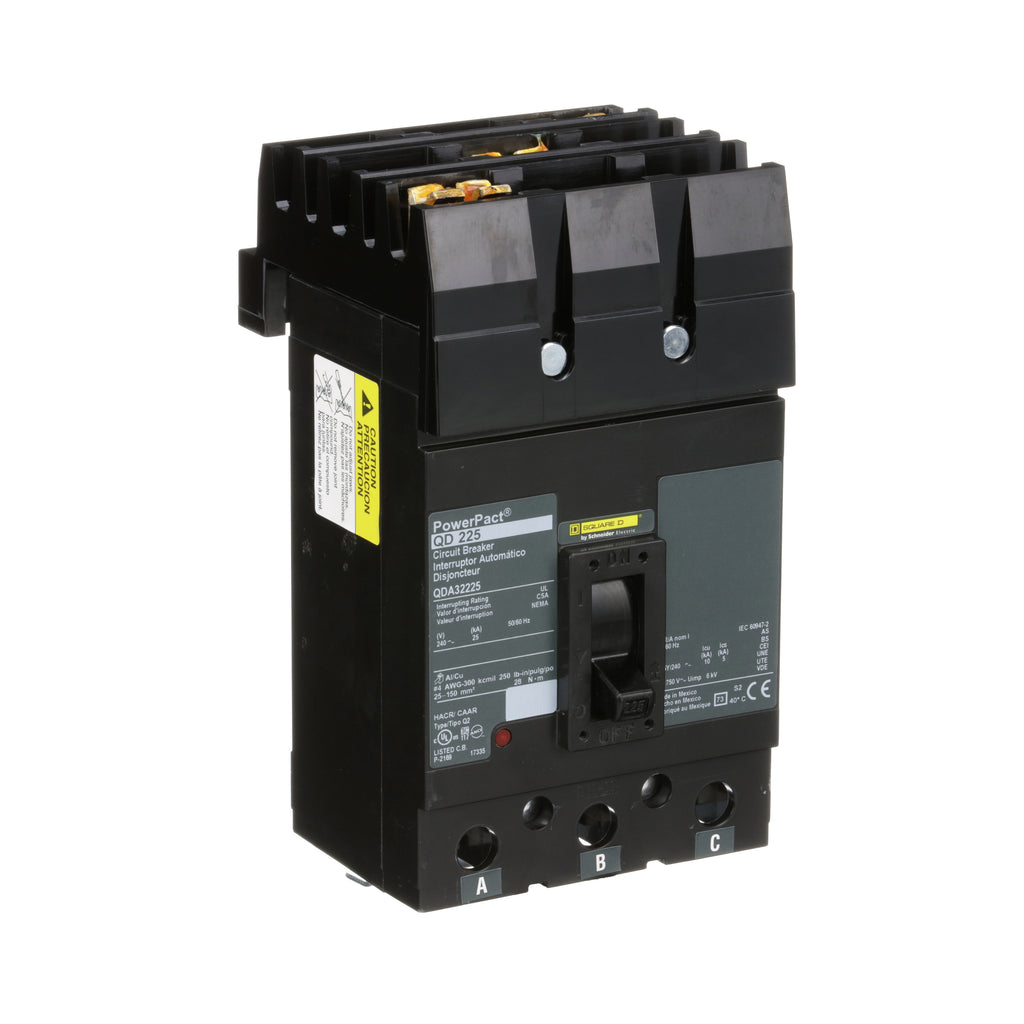

QDA32225 is a Square D PowerPacT Q series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.
This 3-pole, 225A breaker features a plug-in (I-Line) mounting style, 240VAC voltage rating, and a thermal magnetic trip unit with non-interchangeable trip settings. It is UL 489 listed and CSA certified, ensuring compliance with North American safety standards. The breaker is rated for 25kA interrupting capacity at 240V and is compatible with Square D I-Line panelboards.
Key Specifications
- Part Number: QDA32225
- Manufacturer: Square D
- Amperage: 225A
- Voltage: 240VAC
- Poles: 3
- Mounting Type: I-Line Plug-In
- Interrupt Rating: 25kA at 240V
- Series/Frame: PowerPacT Q (QDA)
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Trip Settings: 1200A Hold, 2400A Trip
- Certifications: UL 489 Listed, CSA
- Phase Connection: ABC
- Application: HACR rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QDA32225
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : QDA
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 25kA@240V
- Connection : Plug In Panelboard
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 250A/QD
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901405115
- GTIN : 00785901405115
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 6.7
- Panel Type : I Line Panelboards
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
