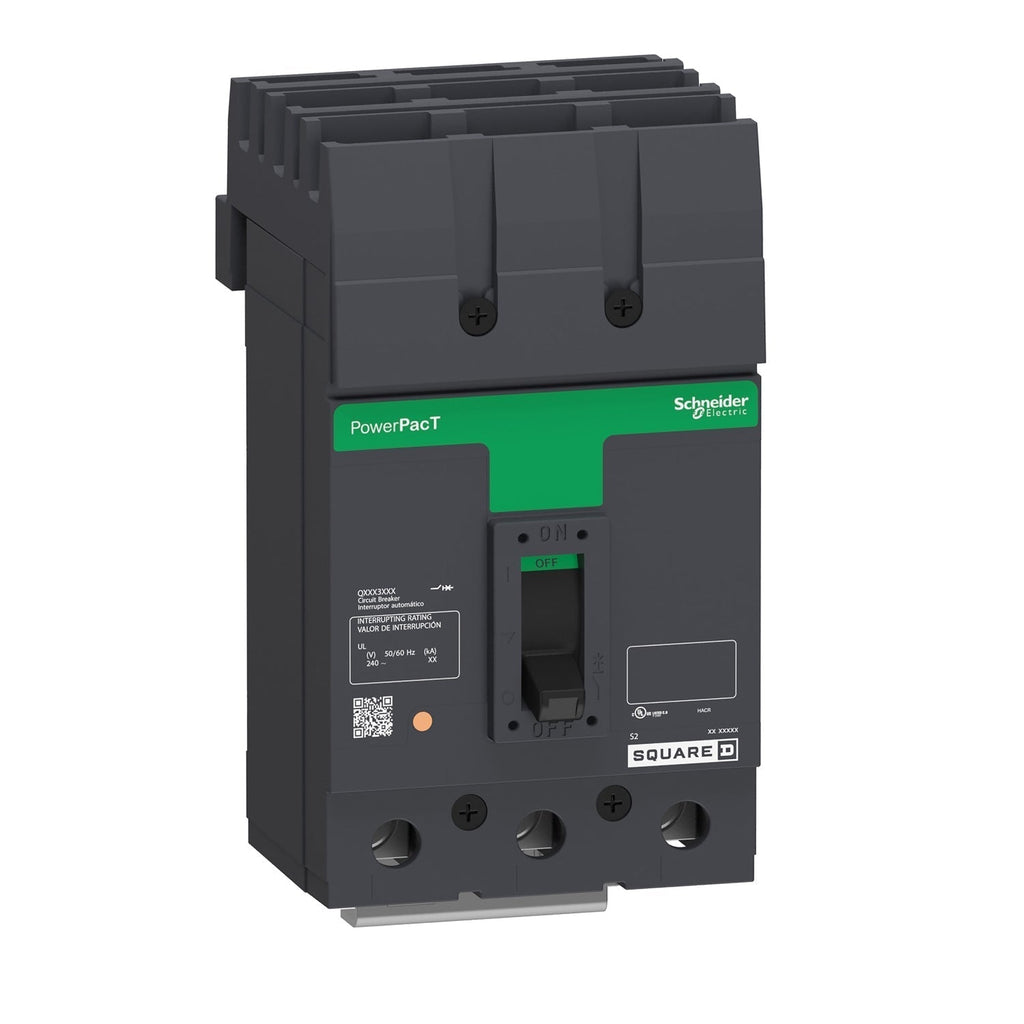

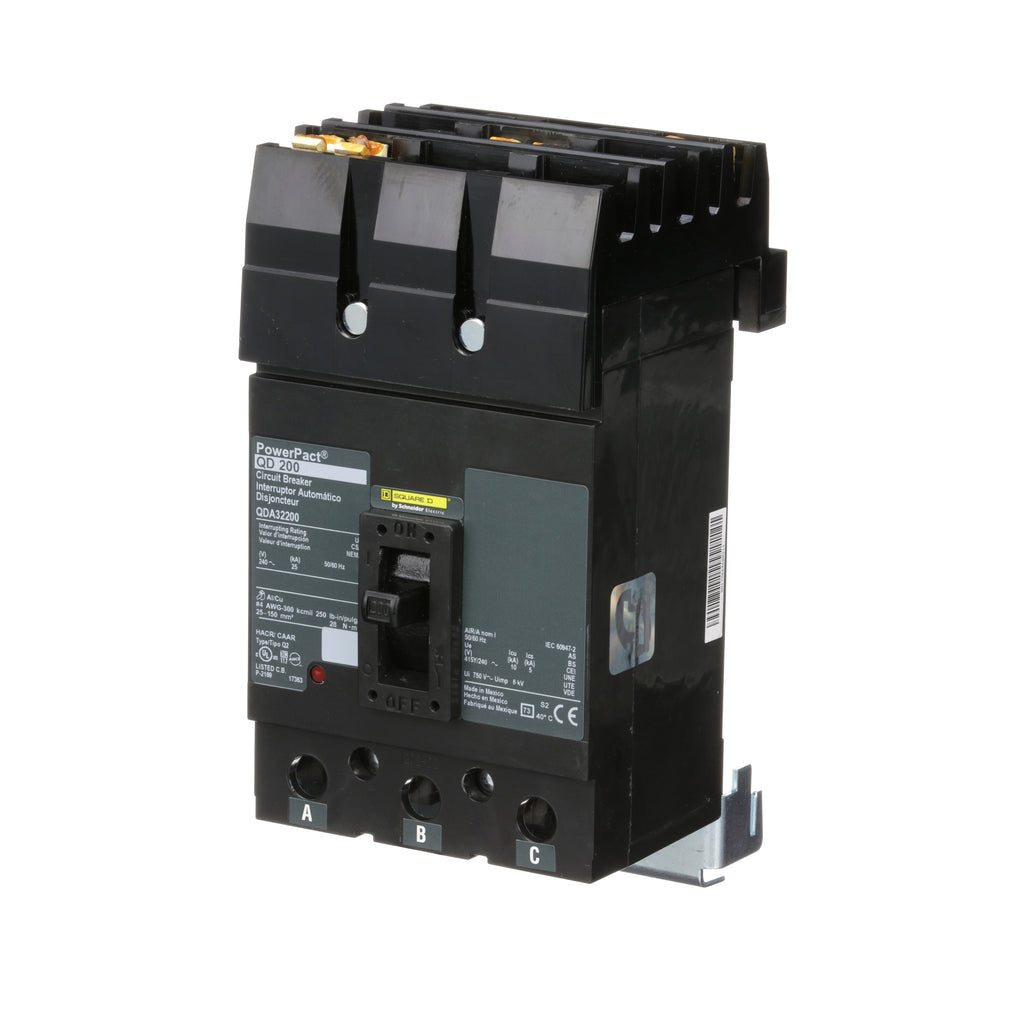

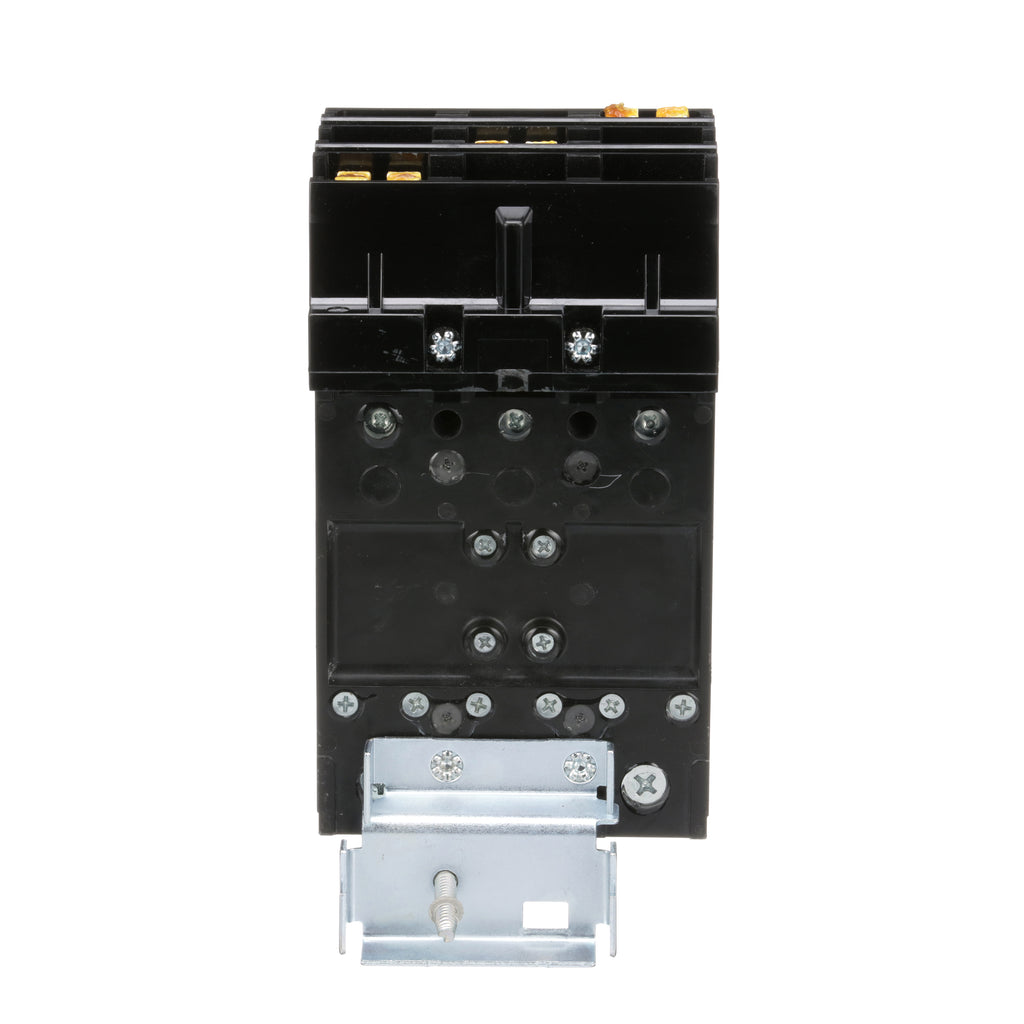

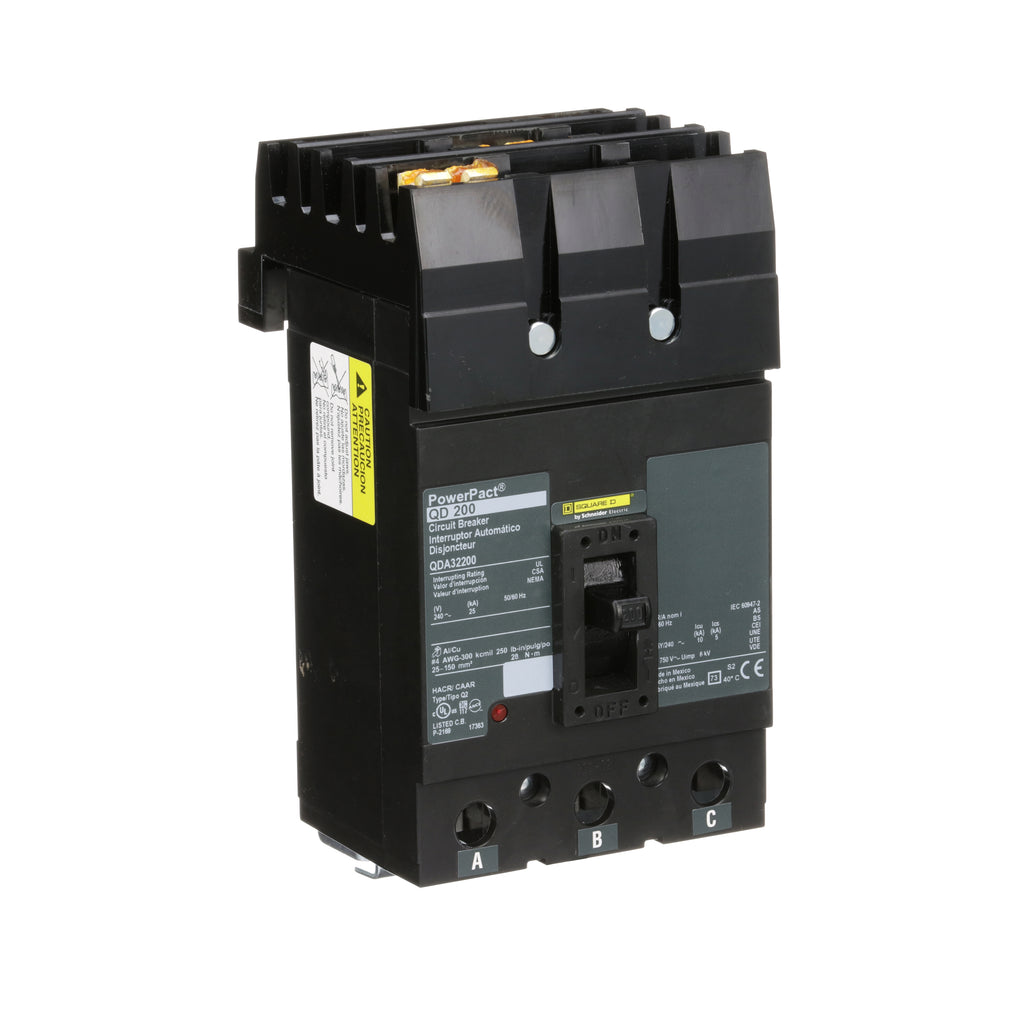

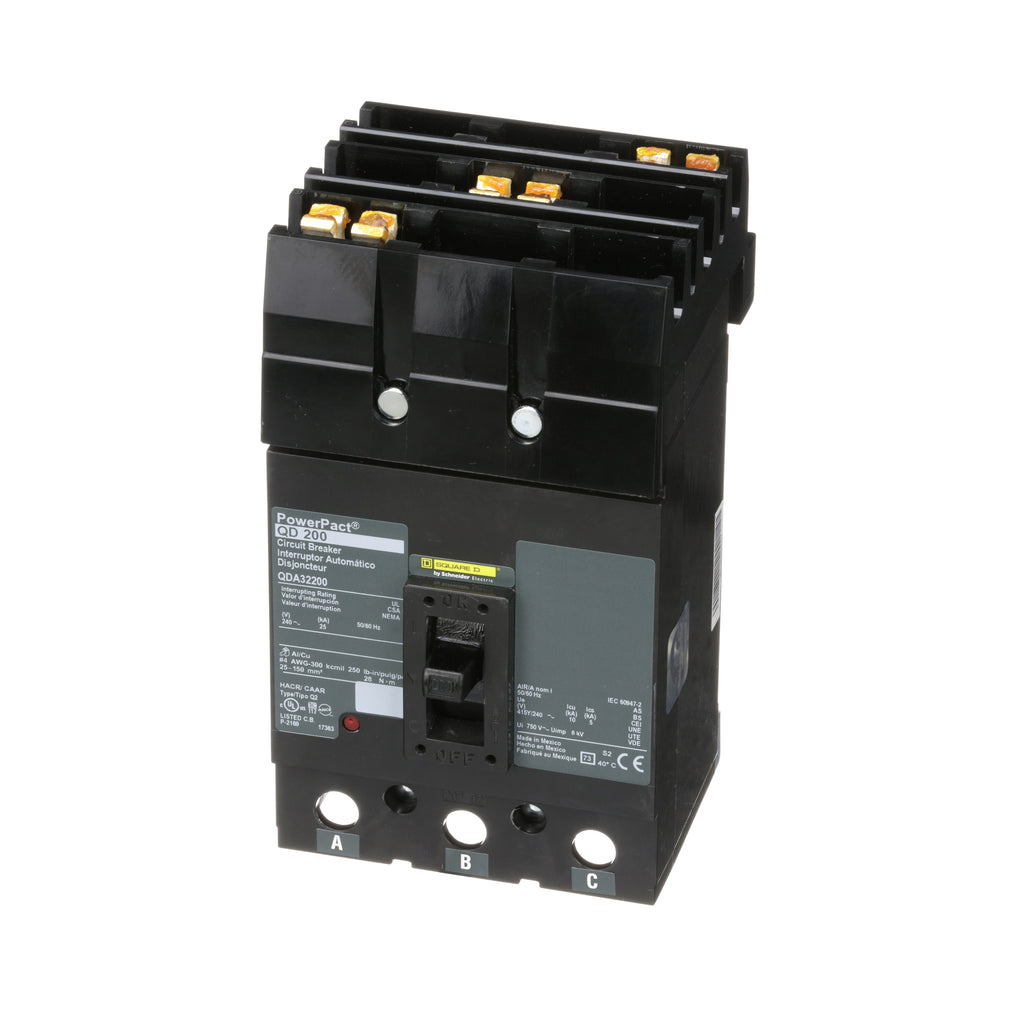

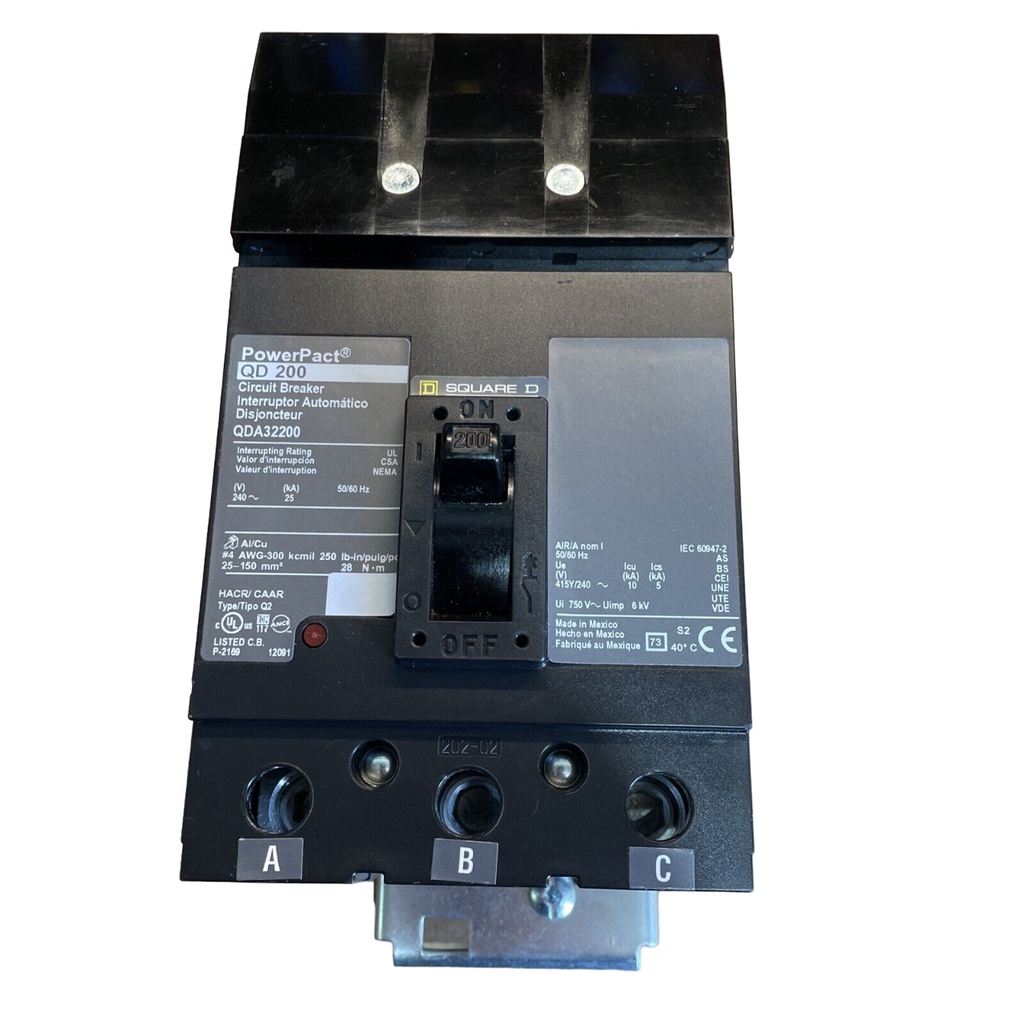

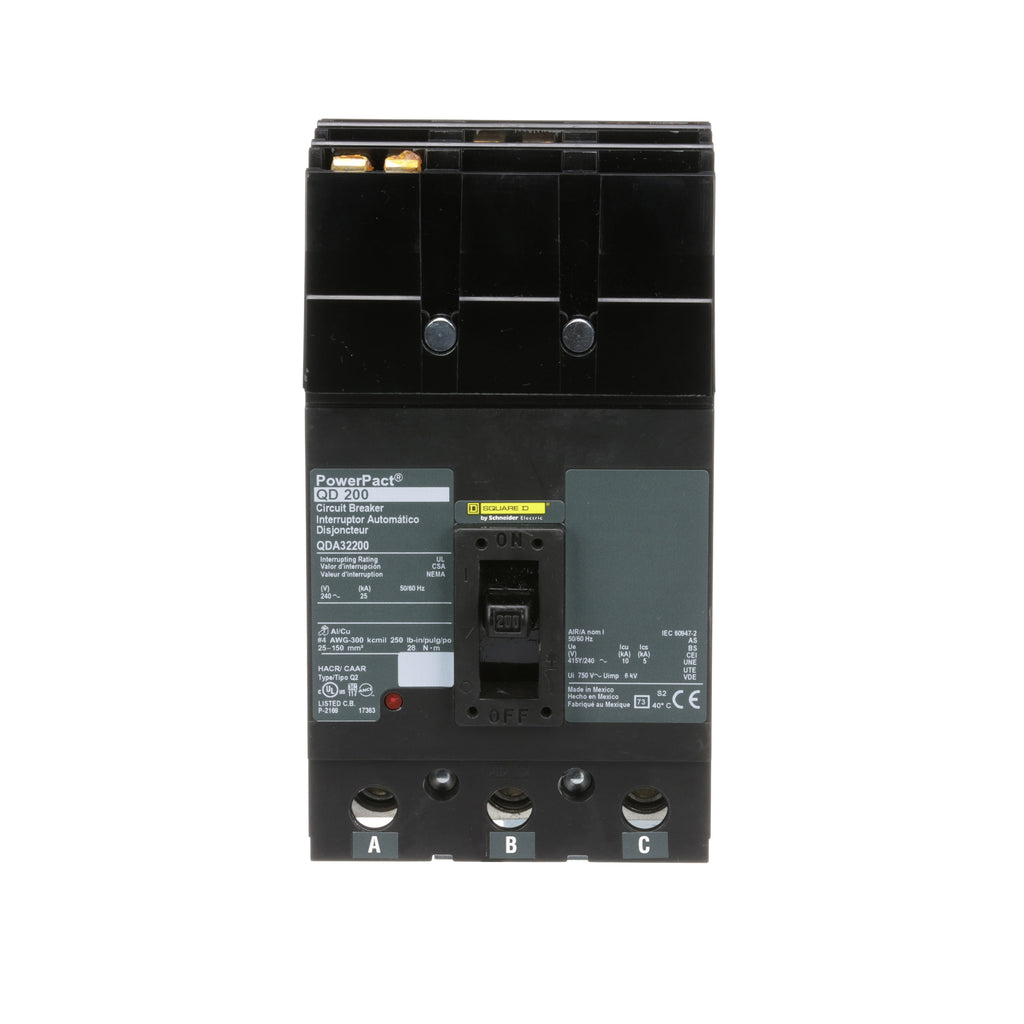

QDA32200 - Square D 200A 3-Pole 240VAC Molded Case Circuit Breaker PowerPact Q

QDA32200

QDA32200 is a Square D 3-pole molded case circuit breaker rated for 200 amps and 240 volts AC, designed for reliable overcurrent protection in industrial and commercial applications.This PowerPact Q series breaker features thermal-magnetic trip technology with a 25 kA interrupting rating at 240 VAC, suitable for I-Line panelboards. It includes ABC 80% rated trip units, UL 489 listing, CSA, ANCE, and IEC certifications, and supports load side lug connections for aluminum or copper conductors.

• Amperage: 200A
• Voltage: 240 VAC
• Poles: 3
• Interrupt Rating: 25 kA at 240 VAC
• Trip Unit: Thermal-magnetic, ABC 80% rated
• Series/Frame: PowerPact Q, QDA type
• Mounting Type: I-Line plug-in
• Certifications: UL 489, CSA, ANCE, IEC
• Phase Connection: ABC
• Load Side Lug Terminals
• Frequency: 50/60 Hz
• Environmental: Packaging made with recycled cardboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA32200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Plug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901417842
• GTIN : 00785901417842
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.627 lb
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
