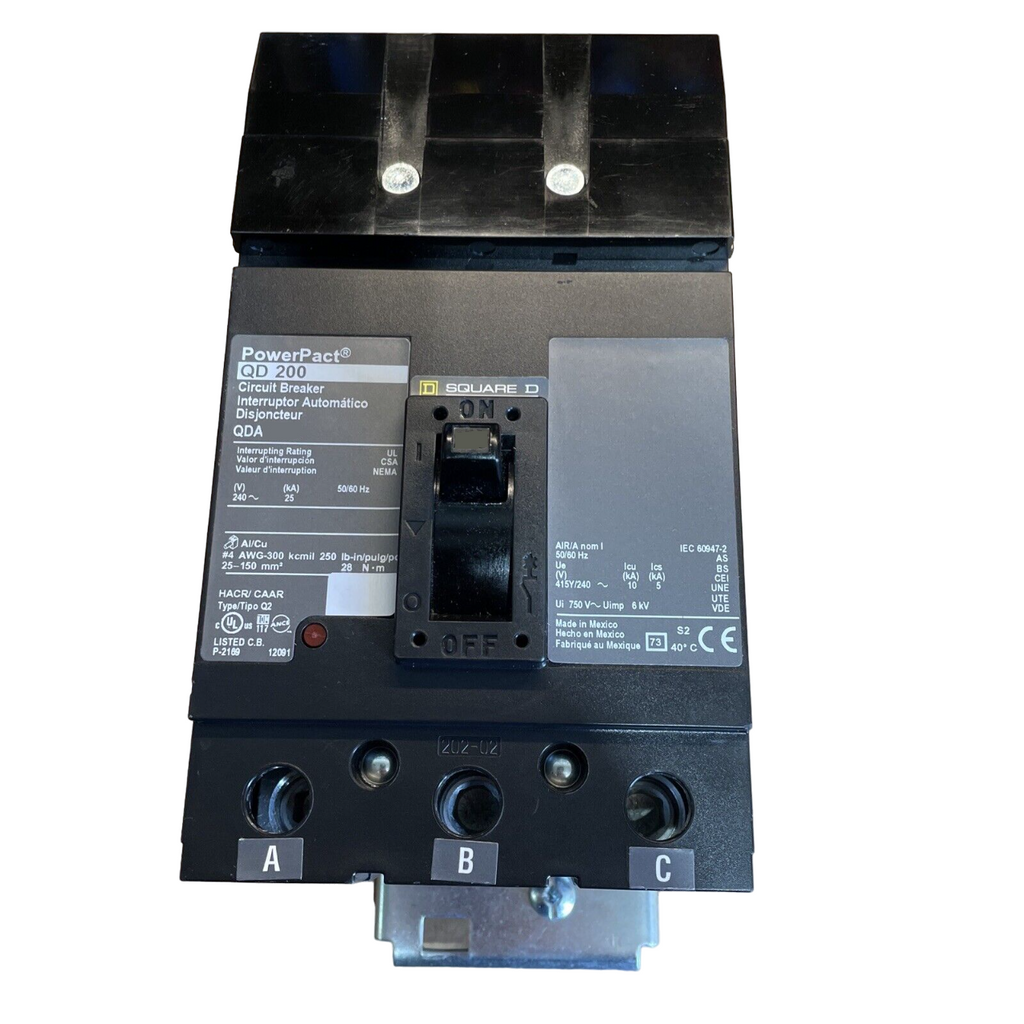

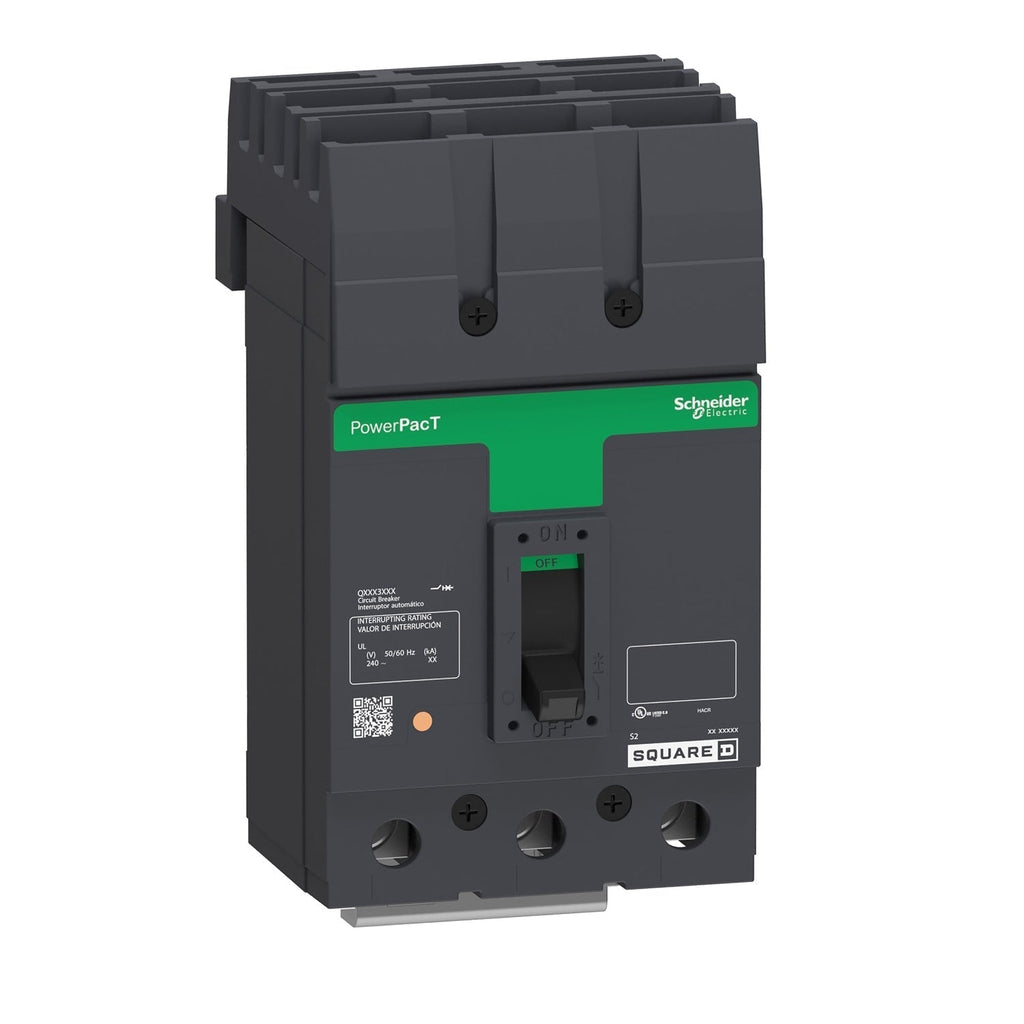

QDA32125 - Square D 125 Amp 240 Volt 3 Pole I-Line Molded Case Circuit Breaker

QDA32125

QDA32125 is a Square D 3 Pole molded case circuit breaker rated for 125 Amps and 240 Volts with I-Line plug-in mounting.This thermal magnetic circuit breaker features a 25kA interrupting rating at 120/208/240VAC, long time and instantaneous trip functions, and load side lug terminals. It belongs to the PowerPacT Q series with a QDA frame type, designed for 3-phase applications. The breaker is UL, CSA, NEMA, and NOM certified, mercury and PVC free, and supports wire sizes from AWG 4 to 300 MCM.

Key Specifications
• Amperage: 125 Amps
• Voltage: 240 VAC
• Poles: 3
• Interrupting Rating: 25kA at 120/208/240 VAC
• Mounting Type: I-Line Style Plug-In
• Frame Type: QDA (PowerPacT Q Series)
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Load Side Lug
• Certifications: UL, CSA, NEMA, NOM
• Temperature Rating: 40 to 70 °C
• Mercury Free and PVC Free
• Max Wire Size: 300 MCM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA32125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Plug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901702900
• GTIN : 00785901702900
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.7
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
