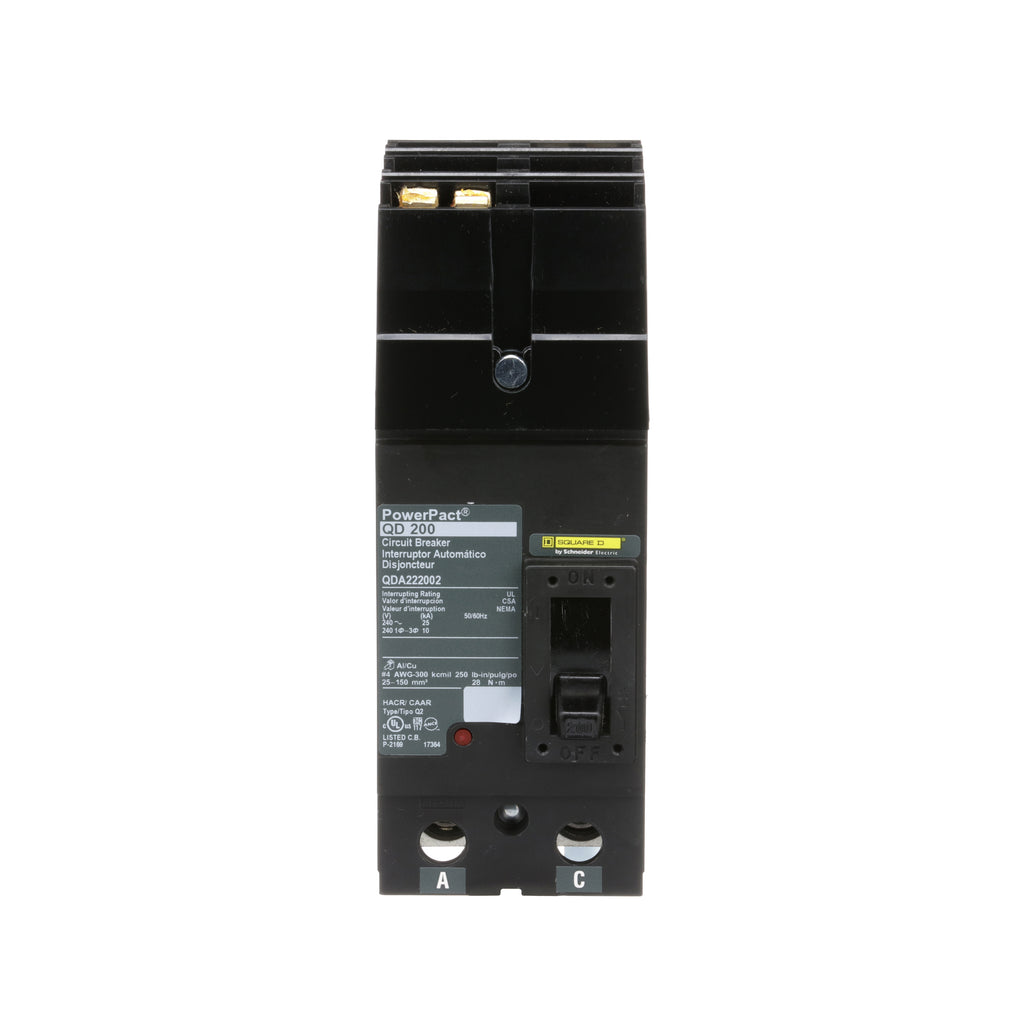

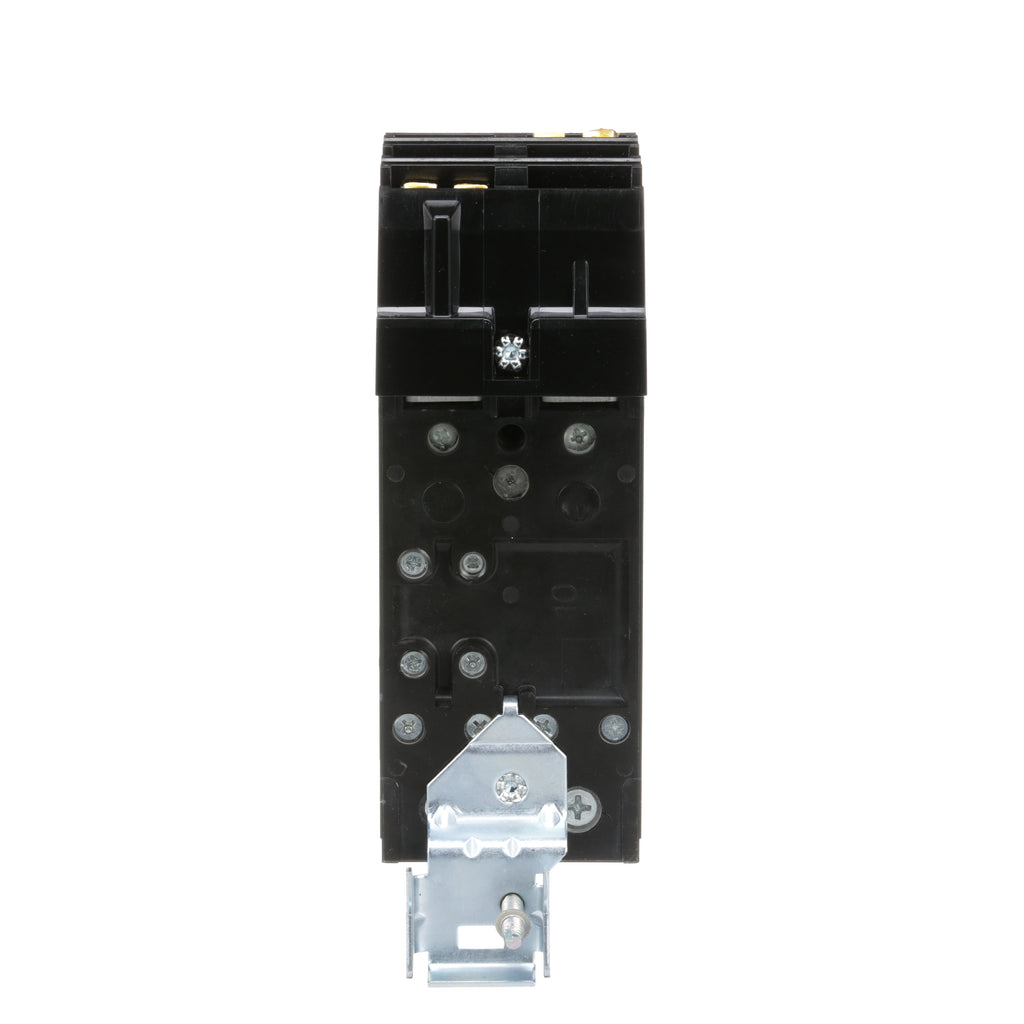

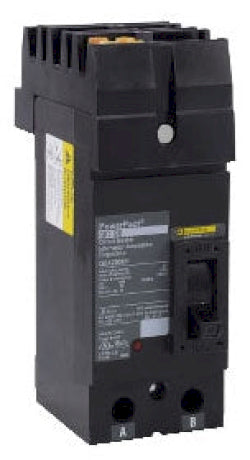

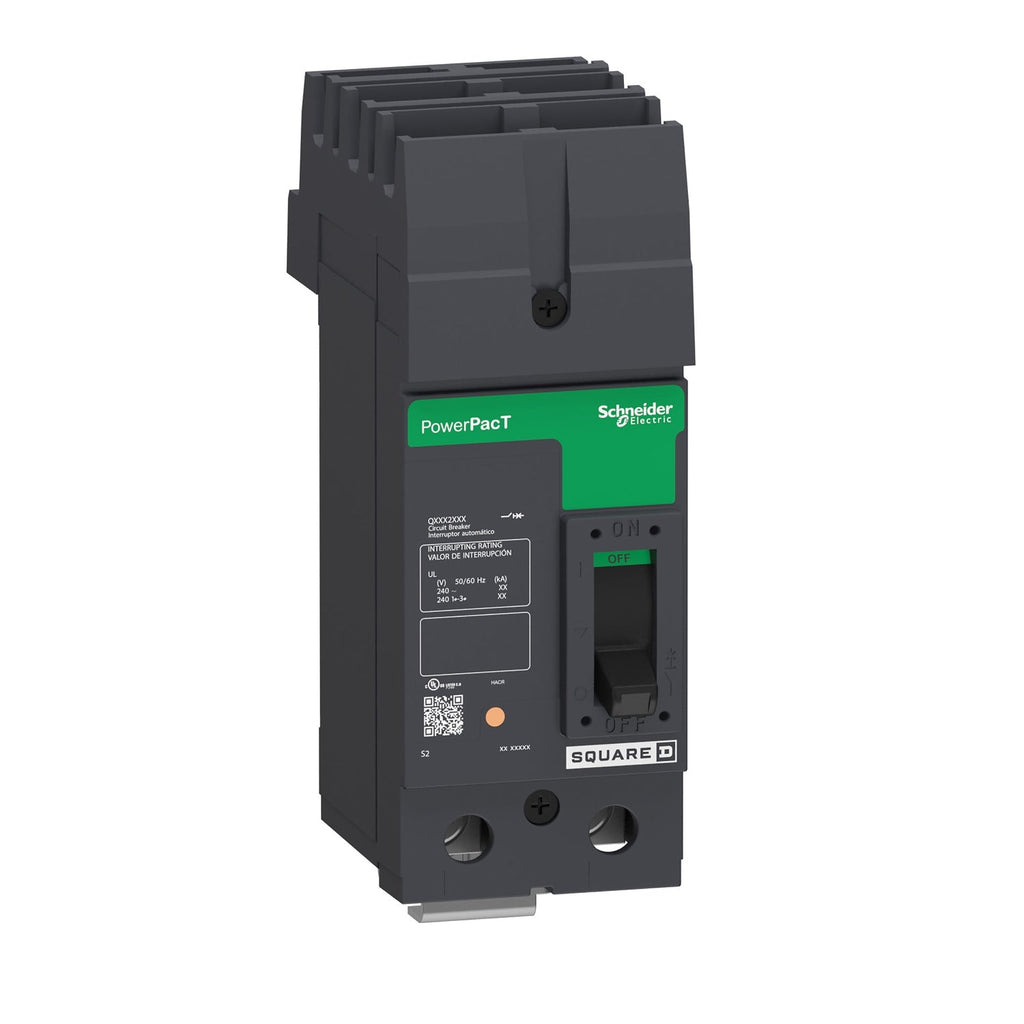

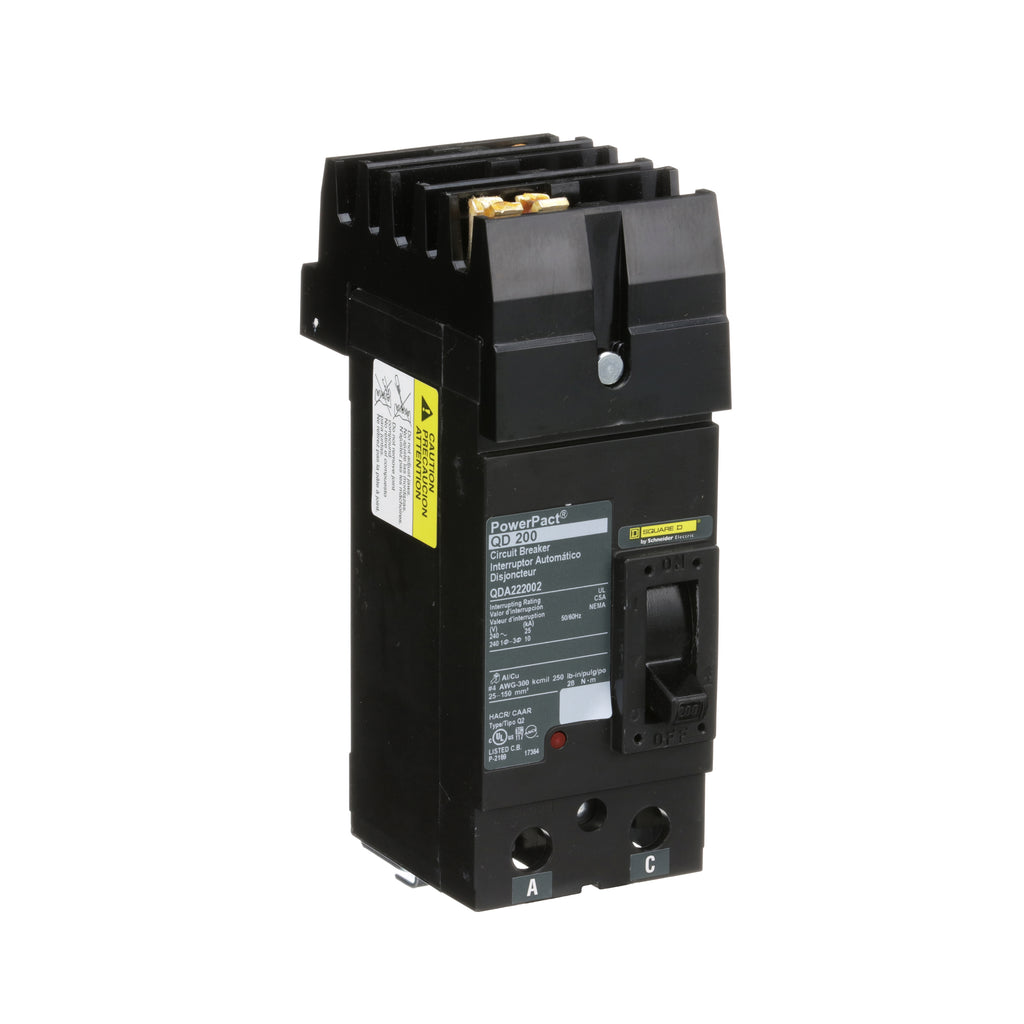

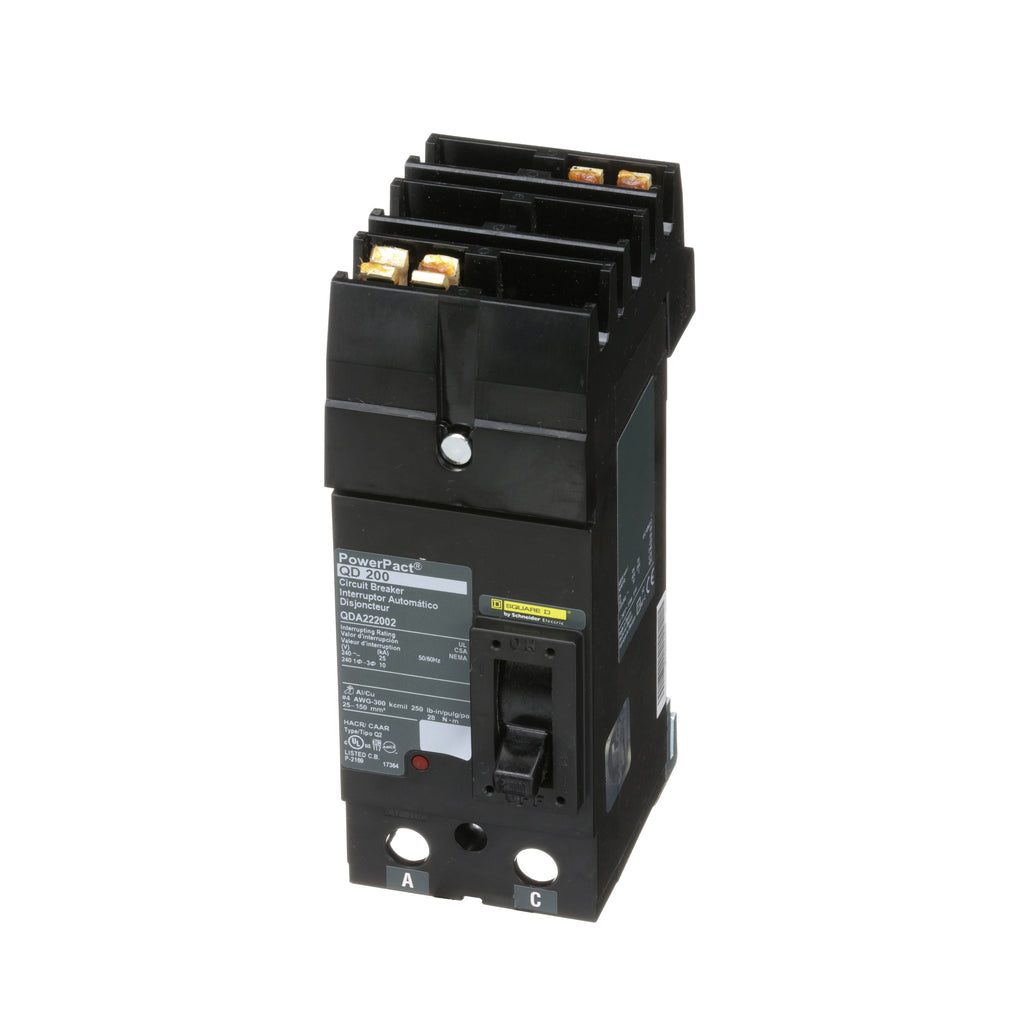

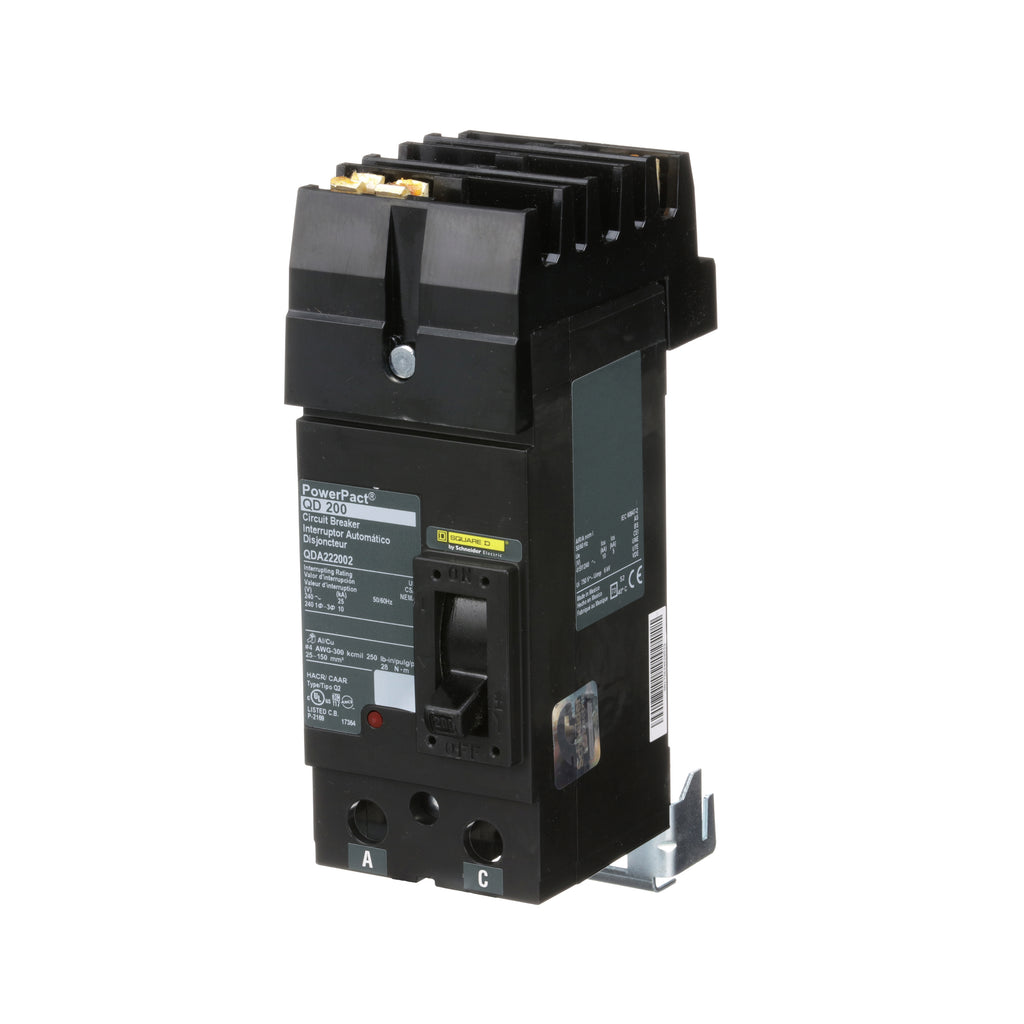

QDA222002 - Square D 200A 2 Pole 240VAC PowerPacT Q Molded Case Circuit Breaker

QDA222002

QDA222002 is a Square D PowerPacT Q molded case circuit breaker rated for 200 amps, 2 poles, and 240 volts AC. It features thermal magnetic trip technology and is designed for reliable power distribution protection.This circuit breaker has a 25kA interrupt rating at 240VAC, suitable for I-Line mounting. It supports 80% continuous current rating and includes a magnetic trip current of 2400A. The breaker is part of the PowerPacT Q frame series and meets industry certifications for safety and performance.

Key Specifications
• Amperage: 200A
• Voltage: 240VAC
• Poles: 2
• Interrupt Rating: 25kA at 240VAC
• Mounting Type: I-Line
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Magnetic Trip Current: 2400A
• Series/Frame: PowerPacT Q
• Frequency: 50/60 Hz
• Certifications: Industry standard compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA222002
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901702887
• GTIN : 00785901702887
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.93
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
