QDA222001 - Square D PowerPacT Q 200A 2 Pole 240VAC 25kAIC Molded Case Circuit Breaker, I-Line Plug-In, Thermal Magnetic Trip, UL/CSA/NEMA/NOM

Save $659.09
SKU: QDA222001-New
Condition: New
Price:
$542.91 $1,202.00
Stock:
29 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

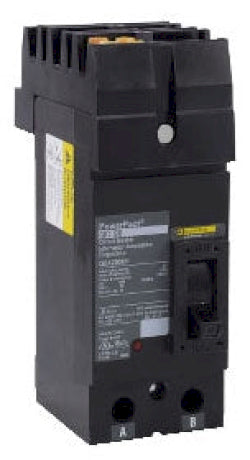

QDA222001 - Square D I-Line Style Plug-In 200 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QDA222001 - Square D PowerPacT Q 200A 2 Pole 240VAC 25kAIC Molded Case Circuit Breaker, I-Line Plug-In, Thermal Magnetic Trip, UL/CSA/NEMA/NOM - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QDA222001 - Square D I-Line Style Plug-In 200 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QDA222001 - Square D PowerPacT Q 200A 2 Pole 240VAC 25kAIC Molded Case Circuit Breaker, I-Line Plug-In, Thermal Magnetic Trip, UL/CSA/NEMA/NOM - Essential Electric Supply

Description

QDA222001


QDA222001 is a Square D PowerPacT Q series, 2-pole, 200A, 240VAC molded case circuit breaker designed for robust power distribution applications.

This thermal magnetic circuit breaker features an I-Line plug-in mounting style, 25kA interrupting rating at 240VAC, and is suitable for single-phase systems. It includes long-time and instantaneous (LI) trip functions, load side lug terminals, and is approved for use in a wide range of commercial and industrial environments. The QDA222001 is UL Listed, CSA Certified, NEMA and NOM compliant, ensuring reliable performance and safety.

    Key Specifications
  • Amperage: 200A
  • Voltage: 240VAC
  • Poles: 2
  • Mounting Type: I-Line Plug-In
  • Interrupt Rating: 25kAIC at 240VAC
  • Series/Frame: PowerPacT Q, QDA
  • Trip Unit: Thermal Magnetic, LI (Long-Time & Instantaneous)
  • Certifications: UL, CSA, NEMA, NOM
  • Connection: Load Side Lug
  • Phase: 1
  • Standards: HACR
  • Temperature Rating: 40 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QDA222001
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : I-Line
  • Type : QDA
  • Voltage : 240
  • Amperage : 200
  • Phase : 1
  • Poles : 2
  • AIC rating : 25kA@240V
  • Connection : Plug In Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 250A/QD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AB

Product Data

  • UPC : 785901677666
  • GTIN : 00785901677666
  • Country of Origin : Mexico
  • Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
  • Weight : 4.839
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
  • Certification : UL, CSA, NOM
