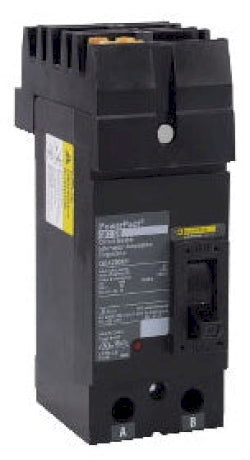

QDA221754 - Square D 175 Amp 240V 2 Pole I-Line Thermal Magnetic Circuit Breaker PowerPact Q

QDA221754

QDA221754 is a Square D 2 pole thermal magnetic molded case circuit breaker rated for 175 amps and 240 volts AC, designed for reliable overcurrent protection.This PowerPact Q frame breaker features an I-Line style plug-in mounting with load side lug terminals. It offers a 25kA interrupting rating at 240VAC and includes LI (long-time and instantaneous) trip functions. The breaker is UL, CSA, NEMA, and NOM certified, suitable for single-phase applications with thermal magnetic protection.

Key Specifications
• Amperage: 175 A
• Voltage: 240 VAC
• Poles: 2
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 25 kA at 240 VAC
• Series/Frame: PowerPact Q (QDA)
• Trip Unit: LI - Long-Time and Instantaneous
• Connection Type: Load Side Lug
• Phase: 1
• Protection Type: Thermal Magnetic
• Certifications: UL, CSA, NEMA, NOM
• Dimensions (HxWxD): 6.47 x 3 x 3.93 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA221754
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78590160536
• GTIN : 00785901605362
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.72
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
