QDA221752 - Square D PowerPact Q 175A 2-Pole 240VAC 25kA I-Line Molded Case Circuit Breaker, Thermal Magnetic Trip, UL Listed

Save $673.67
SKU: QDA221752-New
Condition: New
Price:
$528.33 $1,202.00
Stock:
8 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

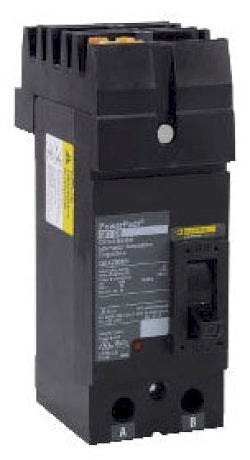

QDA221752 - Square D I-Line Style Plug-In 175 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QDA221752 - Square D PowerPact Q 175A 2-Pole 240VAC 25kA I-Line Molded Case Circuit Breaker, Thermal Magnetic Trip, UL Listed - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QDA221752 - Square D I-Line Style Plug-In 175 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QDA221752 - Square D PowerPact Q 175A 2-Pole 240VAC 25kA I-Line Molded Case Circuit Breaker, Thermal Magnetic Trip, UL Listed - Essential Electric Supply

Description

QDA221752


QDA221752 is a Square D PowerPact Q series, 2-pole, 175A, 240VAC molded case circuit breaker designed for reliable overcurrent protection in power distribution applications.

This thermal magnetic trip unit circuit breaker features an interrupting rating of 25kA at 240VAC, I-Line plug-in mounting, and is UL listed for safety and compliance. It is engineered for easy installation and robust performance in commercial and industrial electrical systems.

    Key Specifications
  • Part Number: QDA221752
  • Manufacturer: Square D (Schneider Electric)
  • Amperage: 175A
  • Voltage: 240VAC
  • Poles: 2
  • Mounting Type: I-Line Plug-In
  • Interrupt Rating: 25kA at 240VAC
  • Series/Frame: PowerPact Q
  • Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
  • Certifications: UL Listed, CSA, IEC
  • Connection: Load side lug terminals, A & C phase
  • Application: Power distribution, overload and short circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QDA221752
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : I-Line
  • Type : QDA
  • Voltage : 240
  • Amperage : 175
  • Phase : 1
  • Poles : 2
  • AIC rating : 25kA@240V
  • Connection : Plug In Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 250A/QD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 785901687184
  • GTIN : 00785901687184
  • Country of Origin : Mexico
  • Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
  • Weight : 4.72
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
  • Certification : UL, CSA, NOM
