QDA221502 - Square D 150A 240V 2 Pole Molded Case Circuit Breaker PowerPact Q I-Line

Save $673.68
SKU: QDA221502-New
Condition: New
Price:
$528.32 $1,202.00
Stock:
6 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

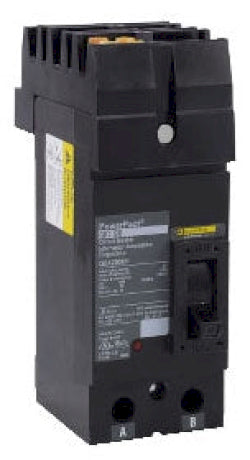

QDA221502 - Square D I-Line Style Plug-In 150 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QDA221502 - Square D 150A 240V 2 Pole Molded Case Circuit Breaker PowerPact Q I-Line - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QDA221502 - Square D I-Line Style Plug-In 150 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QDA221502 - Square D 150A 240V 2 Pole Molded Case Circuit Breaker PowerPact Q I-Line - Essential Electric Supply

Description

QDA221502


QDA221502 is a Square D 2 pole molded case circuit breaker with a 150 amp rating and 240 volts AC voltage designed for reliable power distribution protection.This thermal magnetic circuit breaker features a PowerPact Q frame with I-Line style plug-in mounting, providing 25kA interrupting capacity at 240V AC. It includes long-time and instantaneous trip units for precise overcurrent protection and load side lug terminals. The breaker is UL 489 listed and CSA certified, suitable for single-phase applications in industrial and commercial panelboards.
    Key Specifications
    • Amperage: 150 A
    • Voltage: 240 V AC
    • Poles: 2
    • Mounting Type: I-Line Style Plug-In
    • Interrupt Rating: 25 kA at 240 V AC
    • Series/Frame: PowerPact Q
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
    • Certifications: UL 489, CSA, IEC
    • Phase: Single-Phase
    • Dimensions (HxWxD): 6.47 x 3.93 x 3 inches
    • Weight: Approximately 7.5 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QDA221502
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : I-Line
  • Type : QDA
  • Voltage : 240
  • Amperage : 150
  • Phase : 1
  • Poles : 2
  • AIC rating : 25kA@240V
  • Connection : Plug In Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 250A/QD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 785901571025
  • GTIN : 00785901571025
  • Country of Origin : Mexico
  • Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
  • Weight : 4.881
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
  • Certification : UL, CSA, NOM
