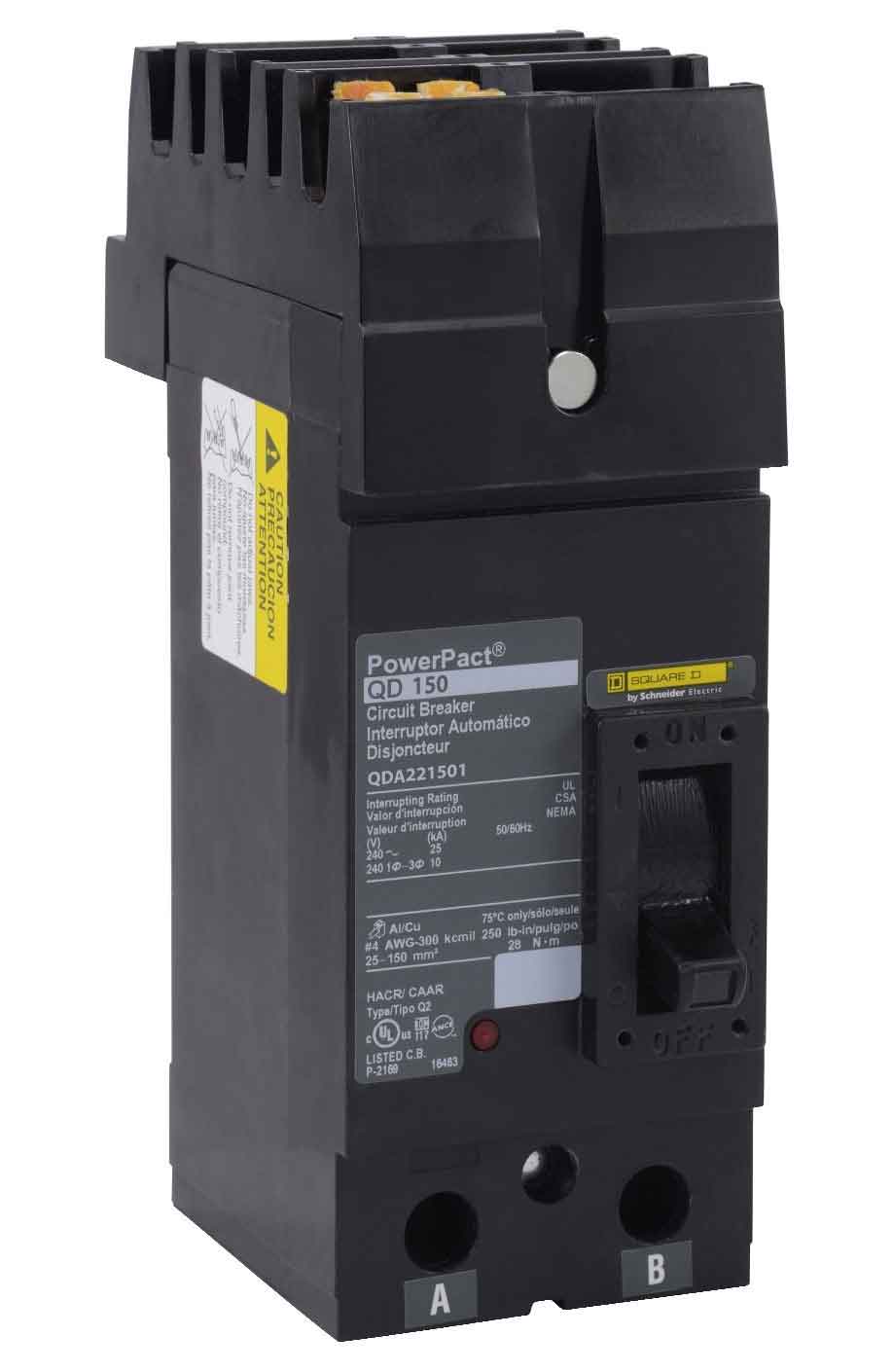

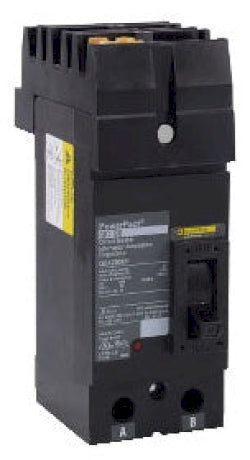

QDA221501 - Square D 150 Amp 240 Volt 2 Pole I-Line Molded Case Circuit Breaker

QDA221501

QDA221501 is a Square D 2 pole molded case circuit breaker rated for 150 amps and 240 volts AC, designed for reliable power distribution protection.This thermal-magnetic circuit breaker features an I-Line plug-in mounting style with A & B phase connections, providing a 25 kA interrupt rating at 240V. It is UL listed and CSA certified, suitable for single-phase applications, and includes a non-interchangeable trip unit for enhanced safety.

• Amperage: 150 A
• Voltage: 240 V AC
• Poles: 2
• Mounting Type: I-Line plug-in
• Interrupt Rating: 25 kA at 240 V
• Trip Unit: Thermal-magnetic, non-interchangeable
• Series/Frame: PowerPact Q
• Certifications: UL Listed, CSA Certified
• Phase: Single-phase (A & B phase connection)
• Terminal Connection: Lug
• Wire Size Range: AWG 4-300 kcmil aluminum/copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA221501
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901568261
• GTIN : 00785901568261
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.83
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
