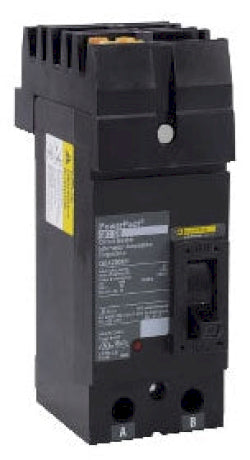

QDA221101 - Square D 110A 2 Pole 240VAC I-Line Molded Case Circuit Breaker Thermal Magnetic

QDA221101

QDA221101 is a 2 pole, 110A, 240VAC molded case circuit breaker from the Square D I-Line series, designed for reliable thermal magnetic protection in power distribution applications. This Square D QDA221101 circuit breaker features an I-Line style plug-in mounting, a 25kA interrupting rating at 240VAC, and includes long time and instantaneous trip functions for enhanced safety. It is suitable for use in I-Line panelboards and switchboards, with UL, CSA, and other major certifications for compliance.

• Part Number: QDA221101
• Manufacturer: Square D
• Series/Frame: I-Line QDA
• Poles: 2
• Amperage: 110A
• Voltage: 240VAC
• Interrupting Rating: 25kA at 240VAC
• Mounting Type: I-Line Style Plug-In
• Protection Type: Thermal Magnetic
• Functions: LI - Long Time and Instantaneous
• Terminal Connection: Line and Load Lug
• Certifications: UL, CSA, NEMA, NOM, IEC, ANCE, CE, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA221101
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 110
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Plug In Panelboard
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901415558
• GTIN : 00785901415558
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.65
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
