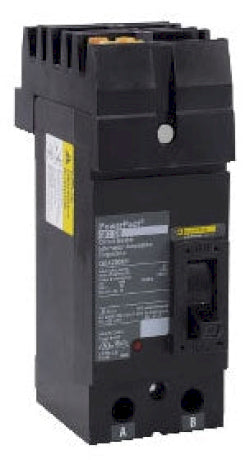

QDA221004 - Square D 100A 240VAC 2 Pole Thermal Magnetic Circuit Breaker I-Line Plug-In

QDA221004

QDA221004 is a Square D 2 Pole thermal magnetic molded case circuit breaker rated for 100 Amps and 240VAC voltage. It features an I-Line style plug-in mounting and is designed for reliable circuit protection.This circuit breaker provides a 25kA interrupting rating at 240V and includes long time and instantaneous trip functions for enhanced protection. It is UL, CSA, IEC, and CE certified, suitable for use in I-Line panelboards with load side lug terminal connections. The breaker supports wire sizes from 4 AWG up to 300 MCM.

Key Specifications
• Amperage: 100A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 25kAIC @ 240V
• Series/Frame: QD
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Certifications: UL, CSA, IEC, CE
• Terminal Connection: Load side lug
• Max Wire Size: 300 MCM
• Min Wire Size: 4 AWG
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA221004
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Plug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : BC

Product Data

• UPC : 785901760313
• GTIN : 00785901760313
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.65
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
