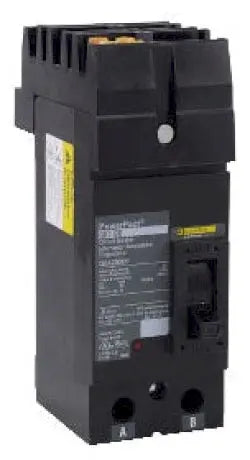

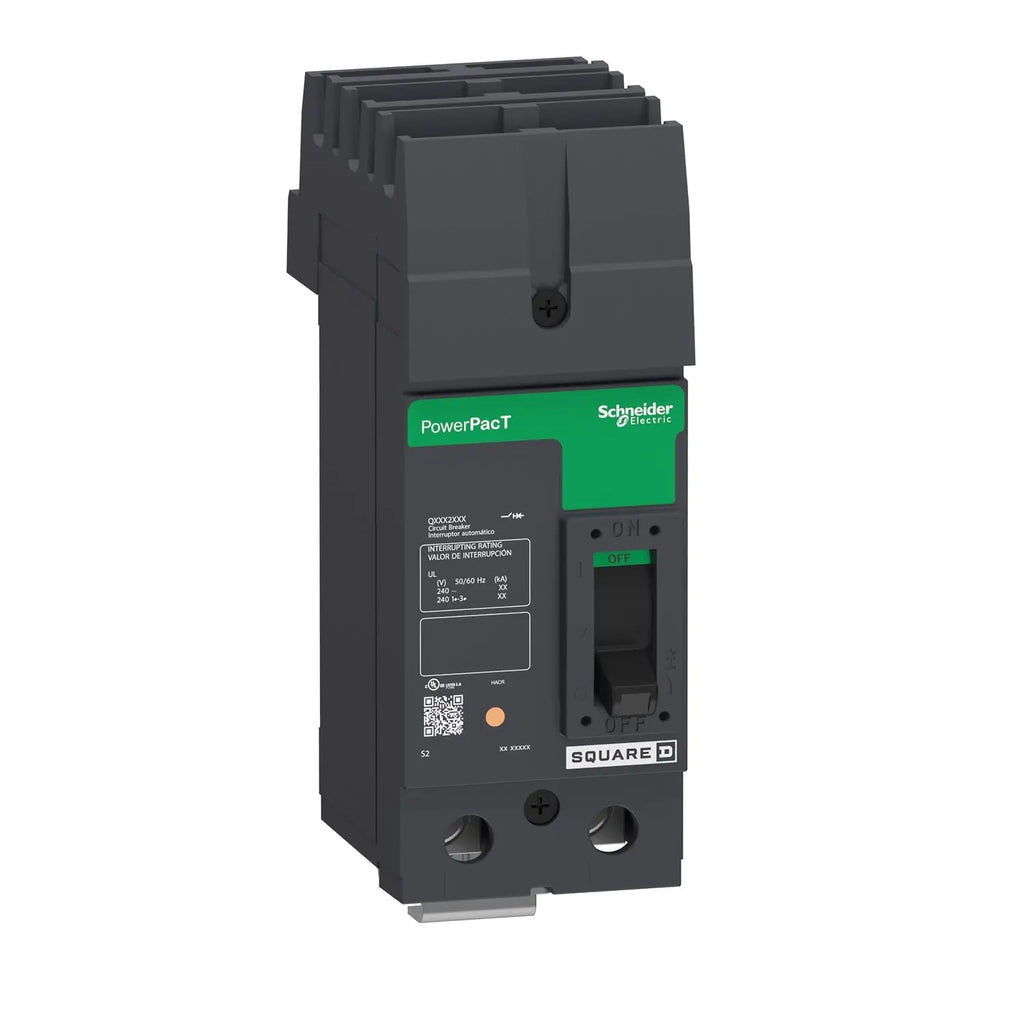

QDA221002 - Square D 100A 2 Pole 240VAC PowerPact Q Molded Case Circuit Breaker

QDA221002

QDA221002 is a Square D 2 pole molded case circuit breaker rated for 100 amps and 240 volts AC, designed for reliable power distribution protection.This PowerPact Q-frame circuit breaker features a thermal-magnetic trip unit with a 1200A magnetic hold current and an interrupting rating of 25kA at 240VAC. It supports lug or bus connected unit mount constructions and complies with UL 489, CSA C22.2 No. 5-02, IEC standards, and RoHS. Ideal for overload and short circuit protection in AC systems.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 240 VAC
• Poles: 2
• Interrupt Rating: 25kA at 240VAC
• Frame/Series: PowerPact Q
• Trip Unit: Thermal-Magnetic, 1200A magnetic hold current
• Mounting Type: Lug or bus connected unit mount
• Certifications: UL 489, CSA C22.2 No. 5-02, IEC Certified, RoHS Compliant
• Application: Overload and short circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA221002
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901701965
• GTIN : 00785901701965
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.652
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
