QDA221001 - Square D 100 Amp 240V 2 Pole I-Line PowerPact Q Circuit Breaker Thermal Magnetic

QDA221001

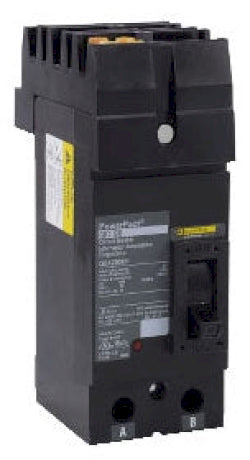

QDA221001 is a 2 pole, 100 amp, 240VAC thermal magnetic molded case circuit breaker from Square D's PowerPact Q series with I-Line plug-in mounting.This circuit breaker features a 25kA interrupting rating at 240VAC, long-time and instantaneous trip functions, and load side lug terminals. It is UL, CSA, NOM, and NEMA certified, designed for 1-phase power distribution with an I-Line style plug-in connection and thermal magnetic protection.

• Manufacturer: Square D
• Series/Frame: PowerPact Q, QDA type
• Amperage: 100 A
• Voltage: 240 VAC
• Poles: 2
• Mounting Type: I-Line plug-in
• Interrupt Rating: 25 kA at 240 VAC
• Trip Unit: Thermal Magnetic with LI (long-time and instantaneous) functions
• Terminal Connection: Load side lug
• Phase: 1
• Certifications: UL, CSA, NOM, NEMA
• Dimensions (HxWxD): 6.47 x 3 x 3.93 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA221001
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901689874
• GTIN : 00785901689874
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.652
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
