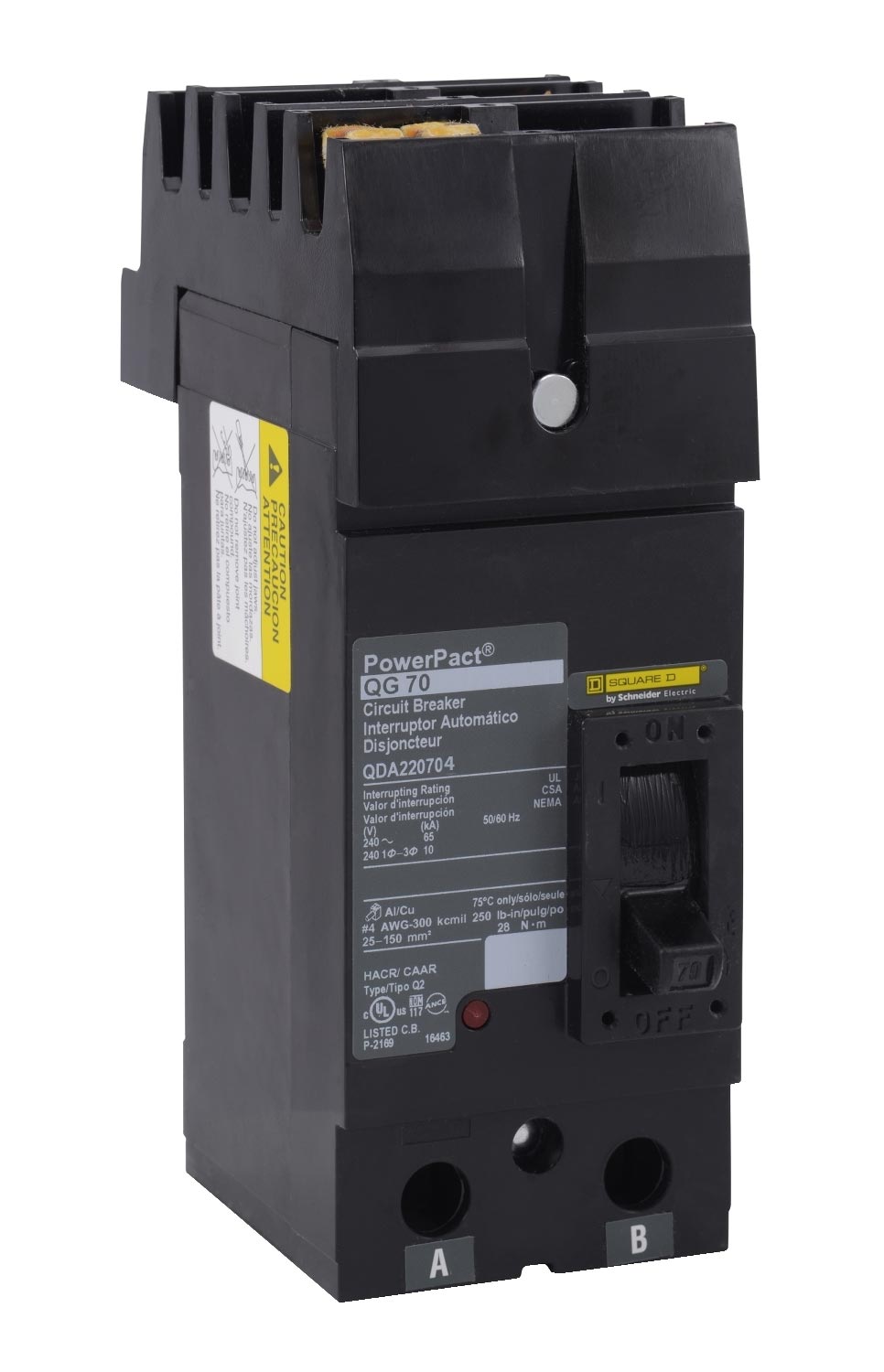

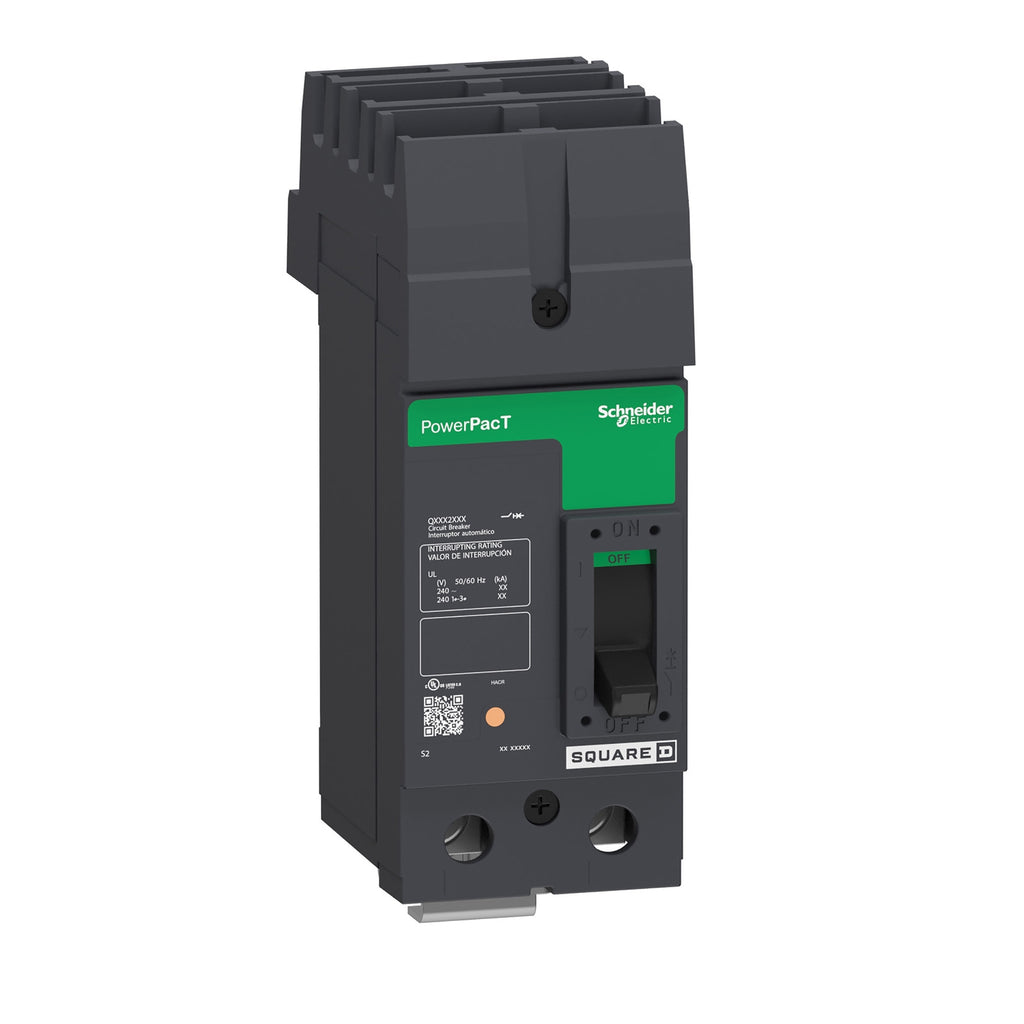

QDA220704 - Square D 70 Amp 240 Volt 2 Pole Thermal Magnetic Circuit Breaker I-Line Plug-In

QDA220704

QDA220704 is a Square D 2 pole thermal magnetic molded case circuit breaker rated for 70 Amps and 240 Volts AC with I-Line plug-in mounting.QDA220704 features a 25kA interrupting rating at 240VAC, long-time and instantaneous trip functions, and load side lug terminals. It is UL, CSA, IEC, and CE certified, designed for use in I-Line panelboards, and complies with RoHS standards.

Key Specifications
• Amperage: 70 Amps
• Voltage: 240 VAC
• Poles: 2
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 25kA at 240 VAC
• Series/Frame: QD Series
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Certifications: UL, CSA, IEC, CE
• Terminal Connection: Load Side Lug
• Max Wire Size: 300 MCM
• Min Wire Size: 4 AWG
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDA220704
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QDA
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901832300
• GTIN : 00785901832300
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.773
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
