QCR2040 - Cutler Hammer 40A 120/240V Two-Pole Thermal Magnetic Circuit Breaker

QCR2040

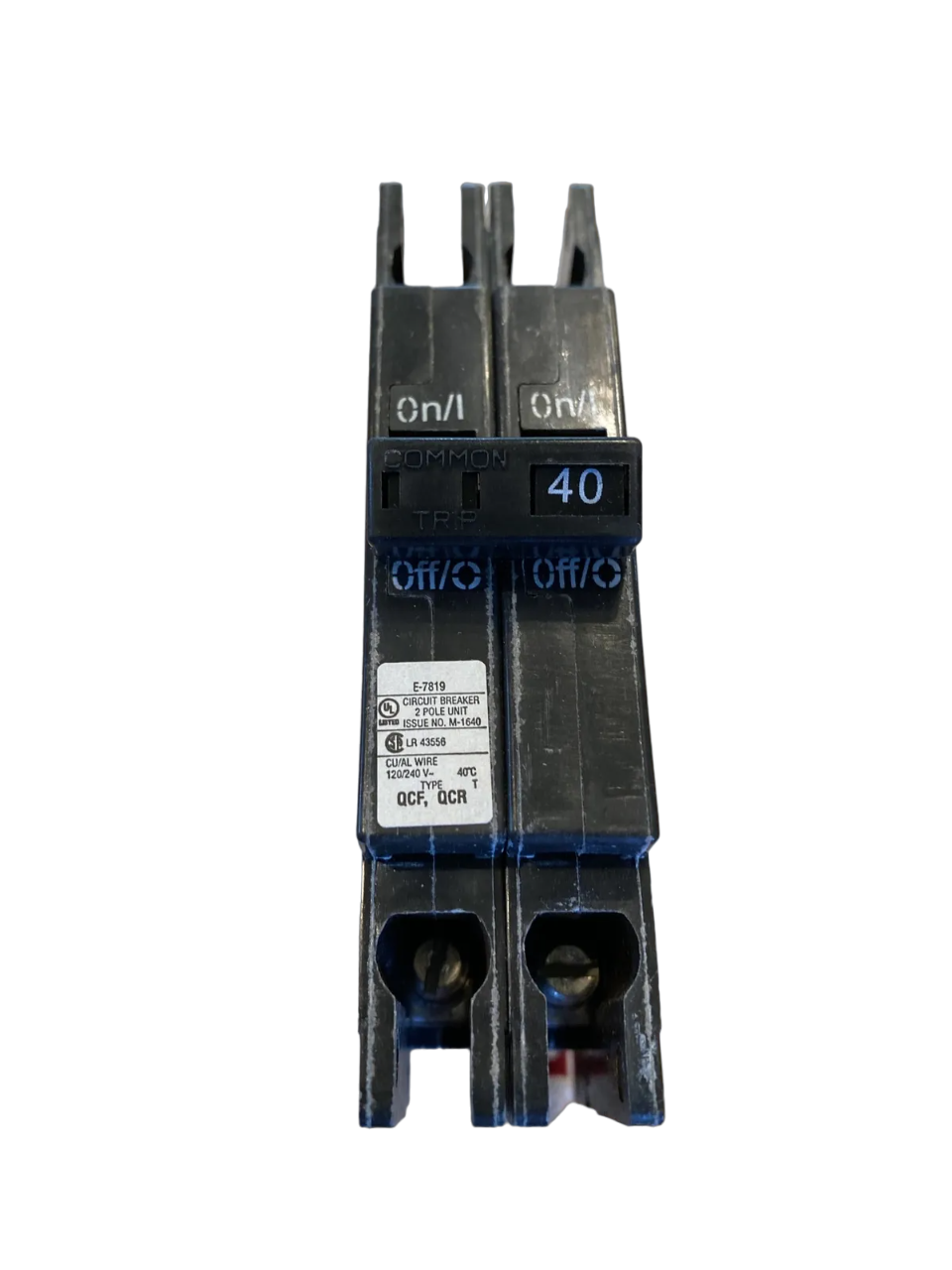

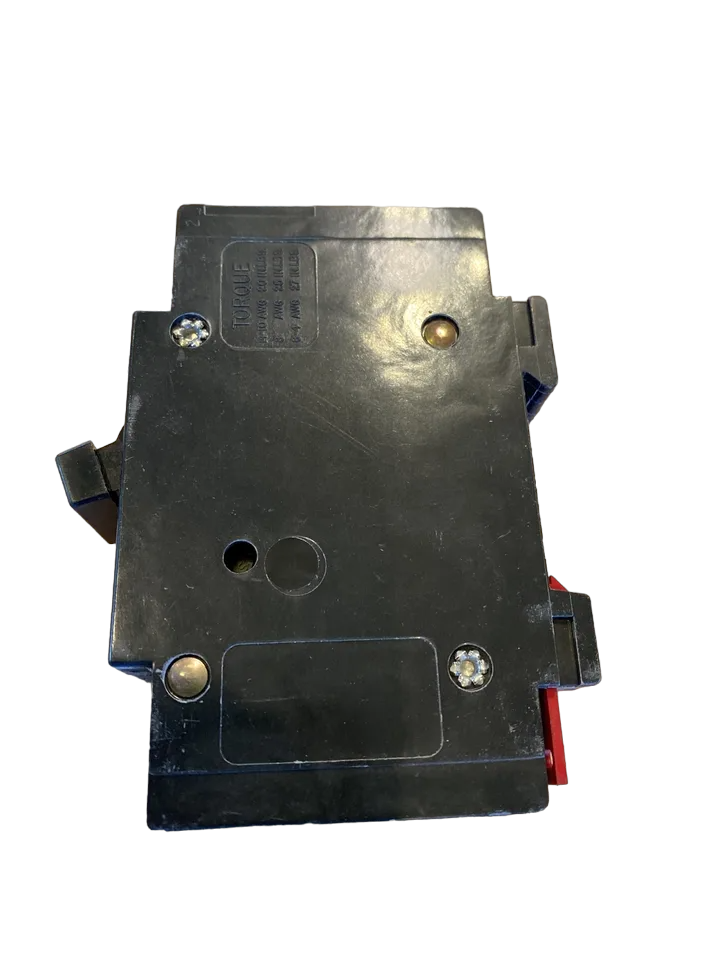

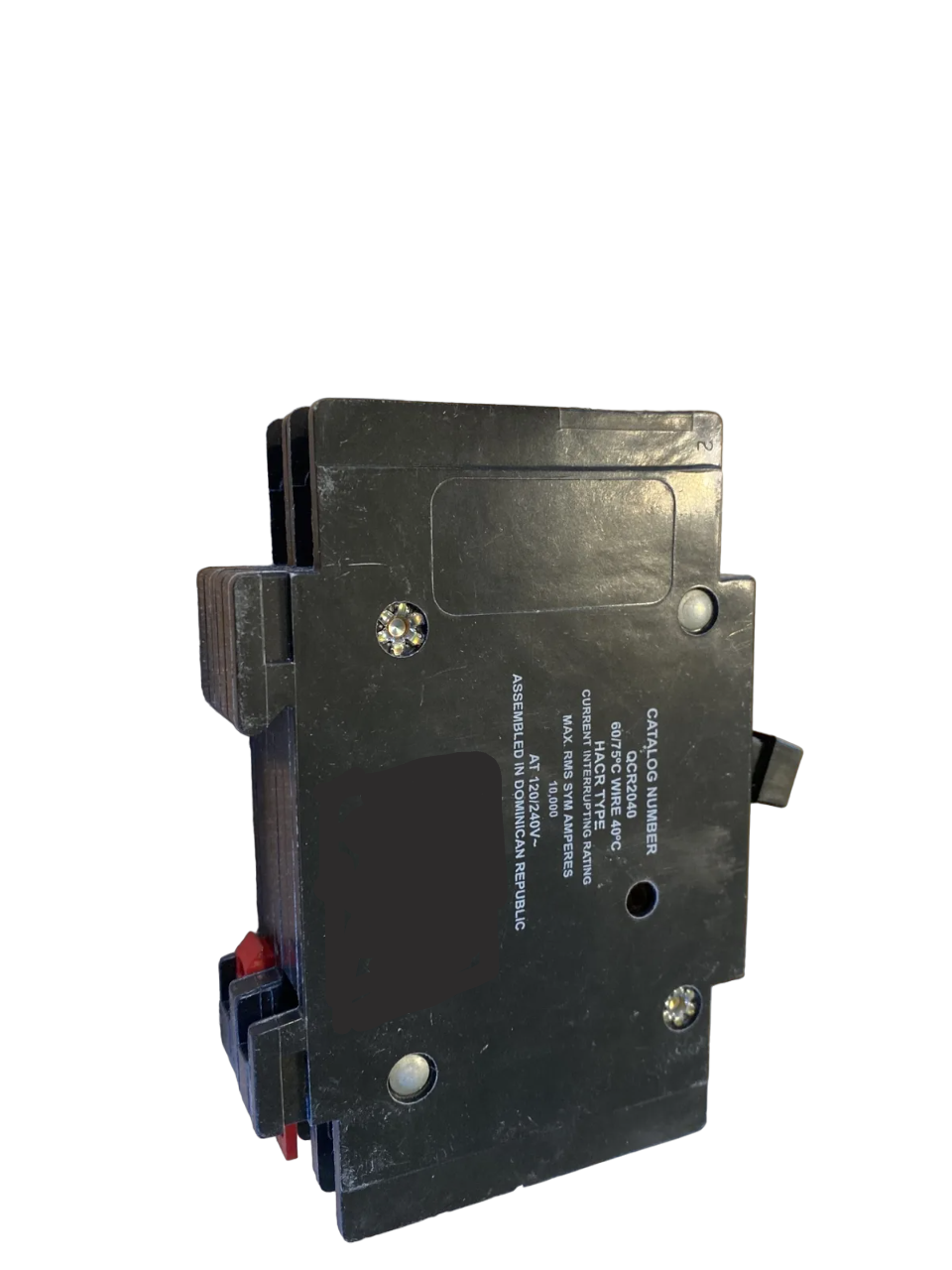

QCR2040 is a Cutler Hammer two-pole thermal magnetic circuit breaker rated for 40 amps and 120/240 volts, designed for industrial applications.This Eaton Quicklag Type QCR circuit breaker features a 10 kA interrupt rating, fixed terminals with cable-in/cable-out connection, and rear mounting. It is HACR rated and certified by UL and CSA, ensuring compliance with industry standards. The breaker has a compact 1/2-inch frame and includes box type lug terminals for secure connections.

• Amperage: 40 A
• Voltage: 120/240 V
• Poles: Two-pole
• Interrupt Rating: 10 kAIC
• Trip Type: Thermal-magnetic (T268)
• Mounting: Rear
• Terminals: Fixed, box type lugs
• Connection: Cable-in/cable-out
• Series/Frame: QCR Quicklag 1/2-inch
• Certifications: UL Listed, CSA Certified
• HACR Rated
• Weight: 0.45 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCR2040
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCR
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786679144381
• GTIN : 00786679144381
• Country of Origin : Dominican Republic
• Dimensions : 4.6 in x 1.2 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 0.45
• Certification : CSA Certified,UL Listed,HACR Rated
• Wire Size : AWG 14 to AWG 4, Aluminum/Copper
