Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QCR1010

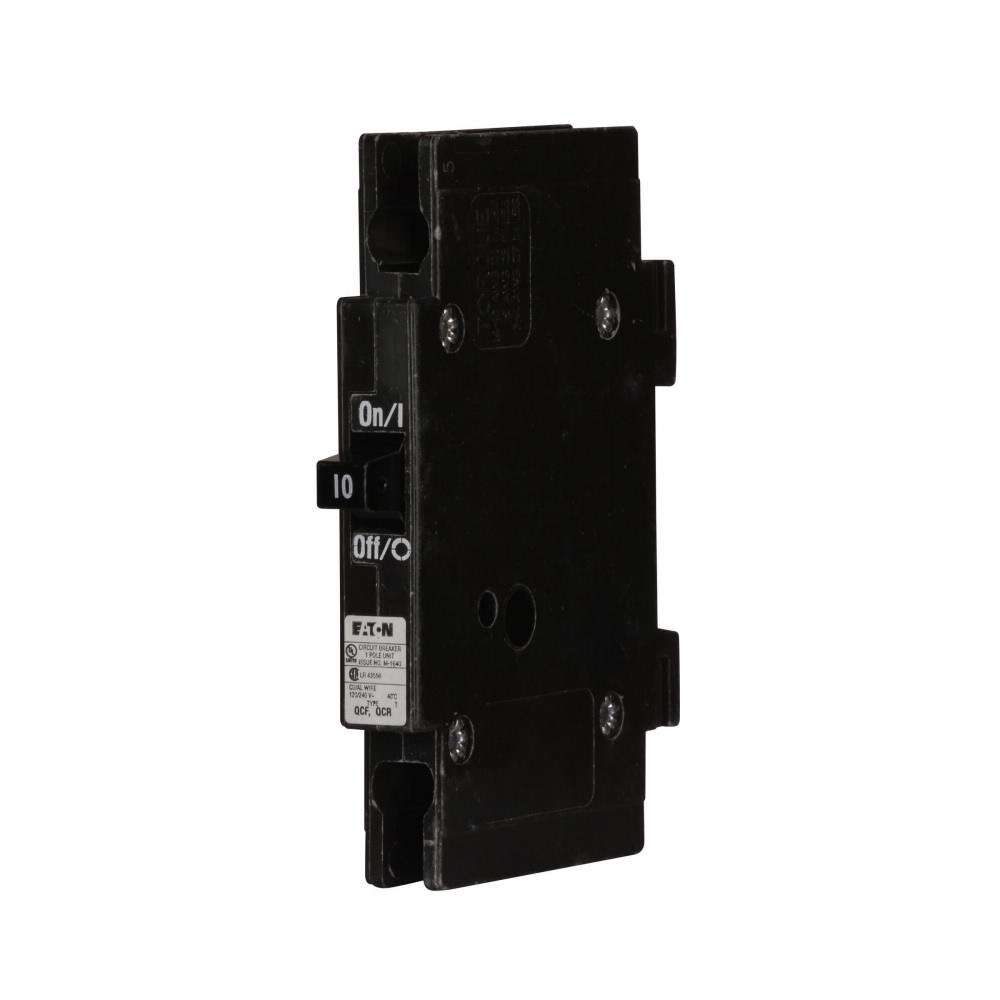

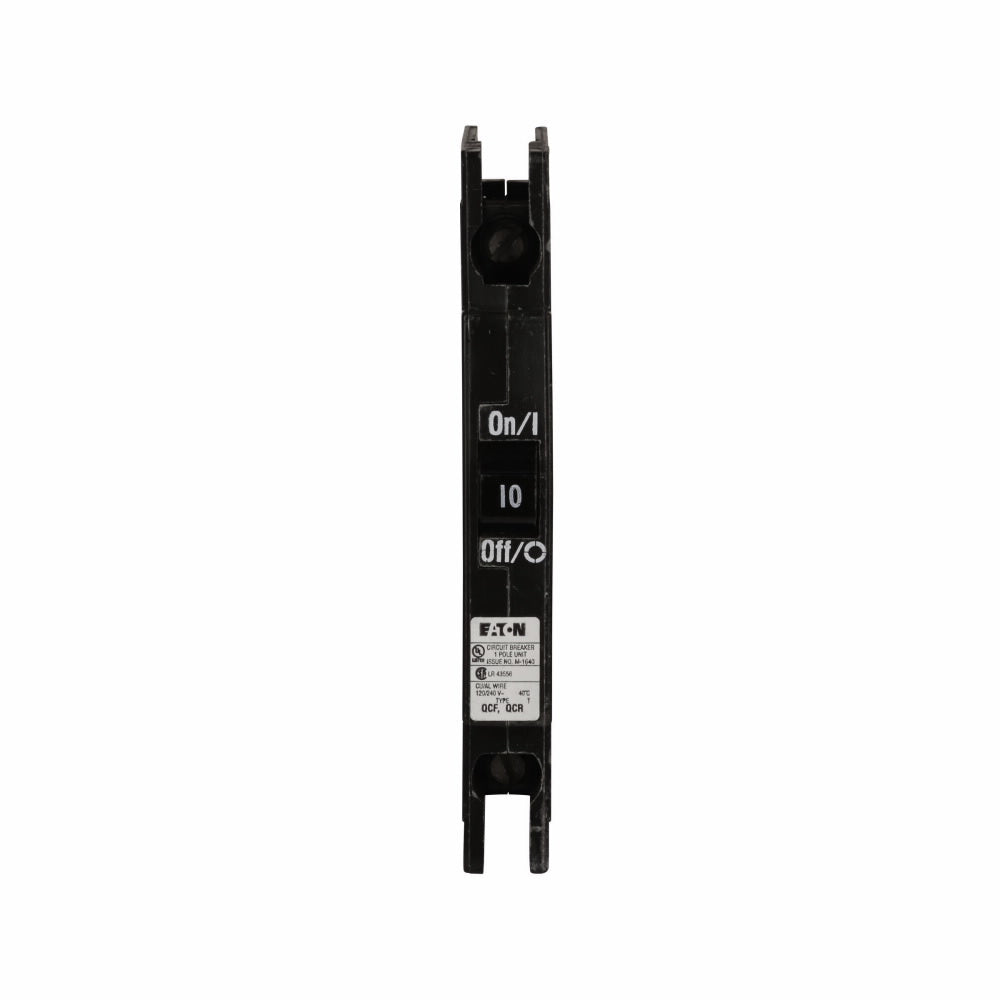

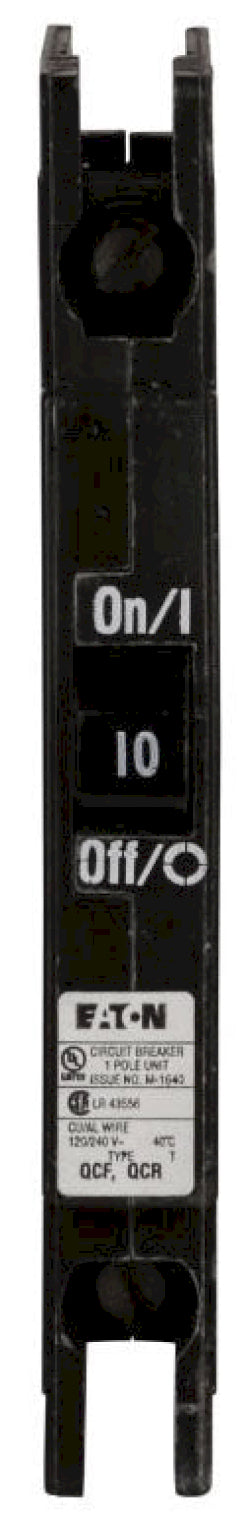

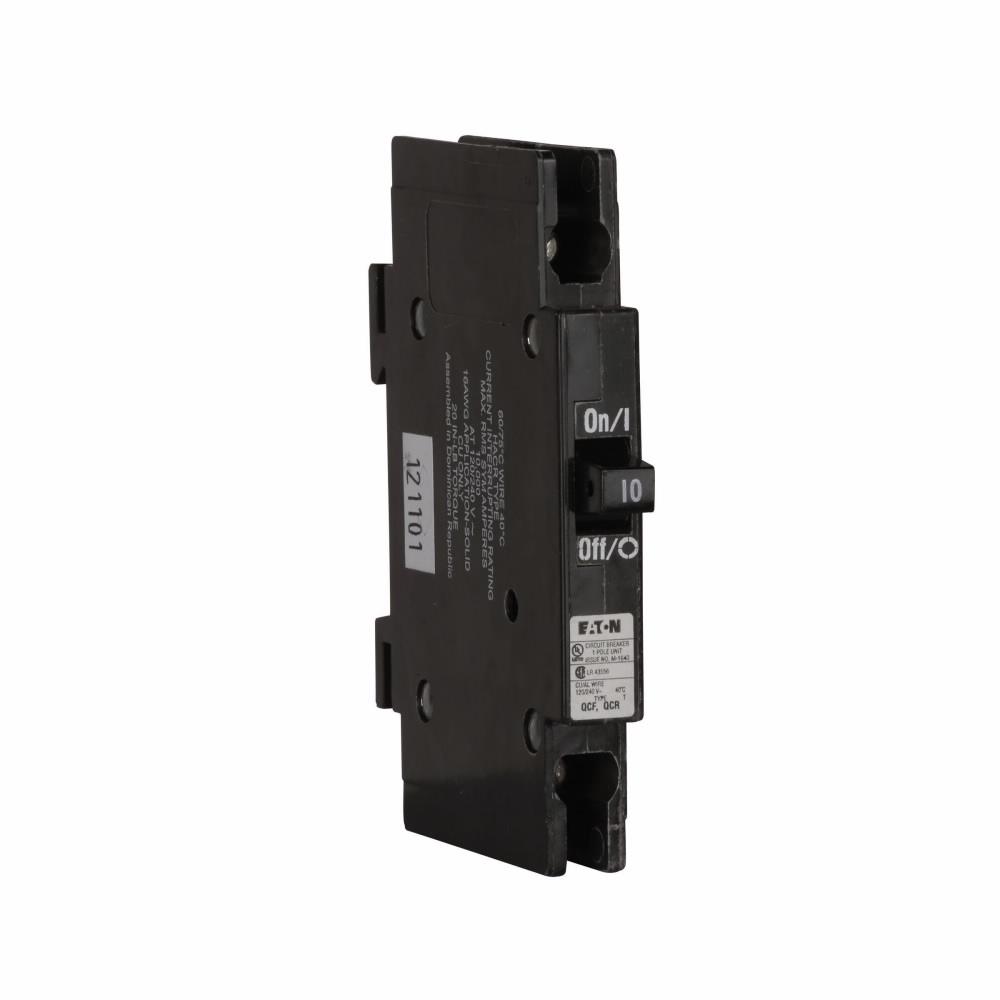

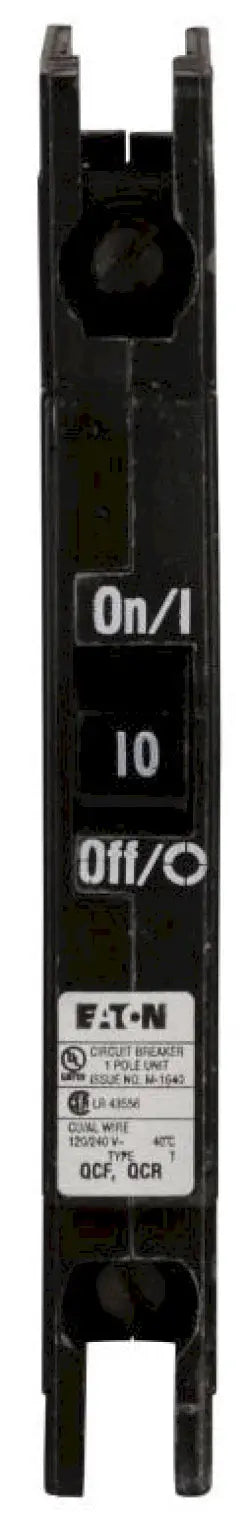

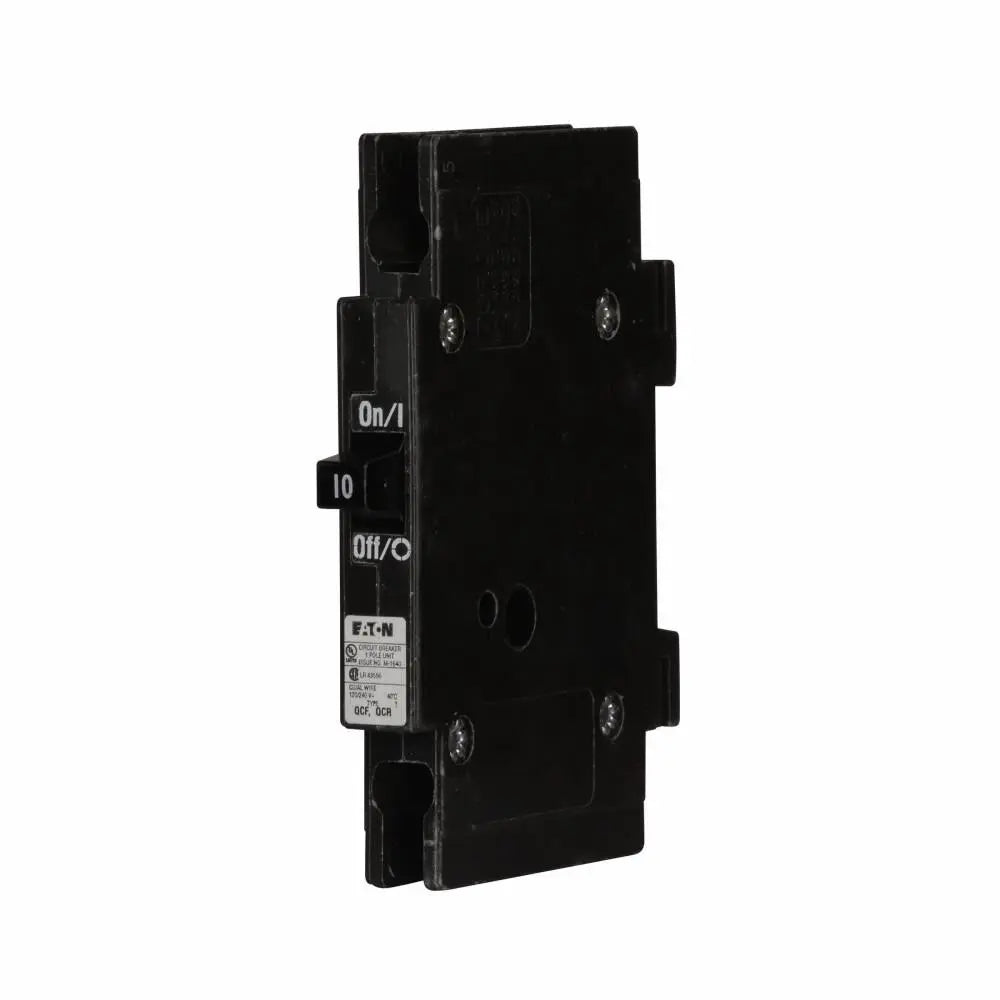

QCR1010 is a Cutler Hammer 10 amp, 120/240 volt, single-pole thermal-magnetic circuit breaker designed for industrial applications.This Eaton Quicklag Type QCR circuit breaker features a 10 kA interrupt rating, cable-in/cable-out connection, and rear mounting method. It is non-interchangeable and HACR rated, with UL listing and CSA certification. The breaker is 1/2-inch wide per pole, providing space-saving installation in industrial panels.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 120/240 V
- Number of Poles: Single-pole
- Interrupt Rating: 10 kAIC
- Trip Type: Thermal-magnetic (T268)
- Mounting Method: Rear
- Connection: Cable-in/cable-out
- Series/Frame: QCR Quicklag
- Width: 1/2 inch per pole
- Certifications: UL Listed, CSA Certified
- HACR Rated
- Non-interchangeable
Specifications
- Part Number: QCR1010
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QCR
- Voltage : 120
- Amperage : 10
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786679052907
- GTIN : 00786679052907
- Country of Origin : Dominican Republic
- Dimensions : 4.6 in x 1.2 in x 3.1 in (Length/Depth x Height x Width)
- Weight : 0.28
- Certification : UL Listed,CSA Certified,HACR Rated
