2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

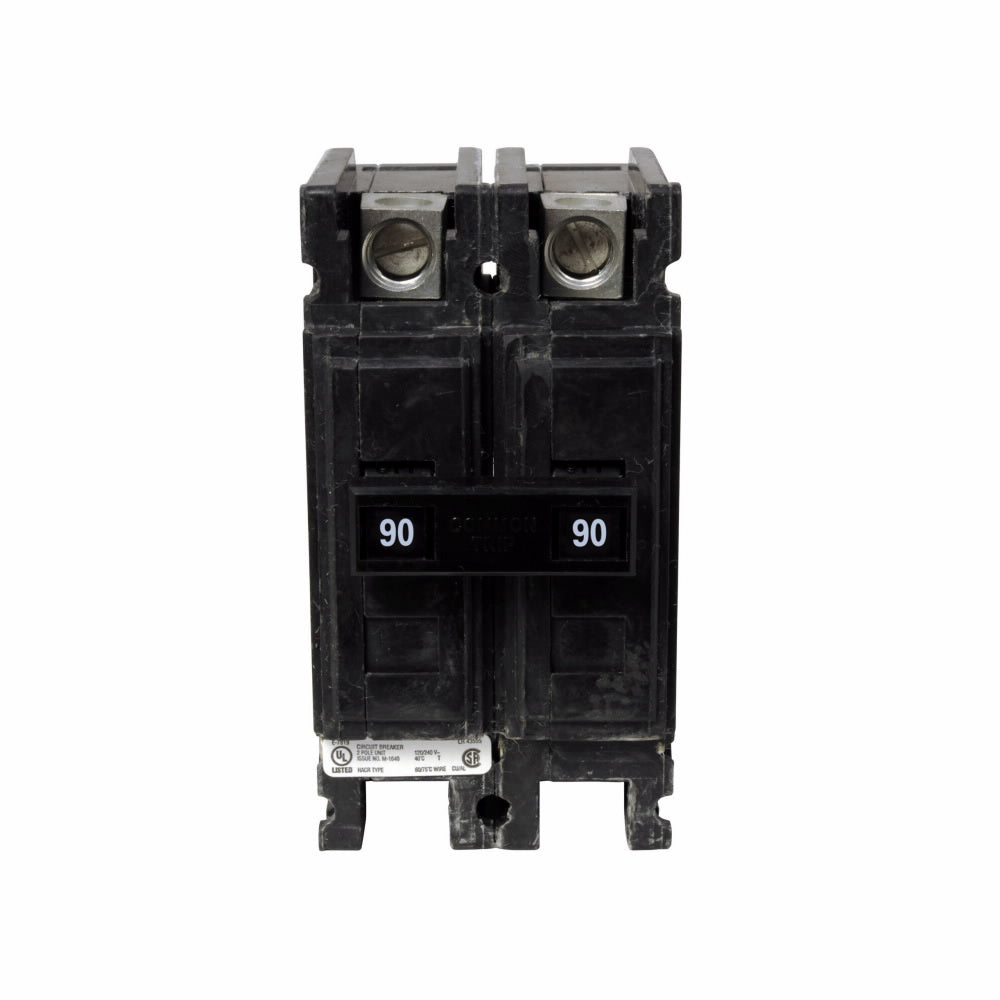

QCHW2090
QCHW2090 is a 2-pole thermal-magnetic circuit breaker manufactured by Cutler Hammer (Eaton) designed for industrial and commercial power distribution applications. This molded case circuit breaker delivers reliable overcurrent protection with a current rating of 90 amperes and operates at 120/240 volts AC. The thermal-magnetic trip mechanism provides fast response to both overload and short-circuit conditions, ensuring equipment and personnel safety. The QCHW series features a compact, fixed-mount design suitable for DIN rail or panel mounting installations. With an interrupt rating of 22 kAIC, this breaker handles significant fault currents while maintaining consistent performance across demanding electrical systems.
- Amperage Rating: 90 A
- Voltage Rating: 120/240 V AC
- Number of Poles: 2
- Interrupt Rating: 22 kAIC
- Trip Type: Thermal-Magnetic
- Series: QCHW (Quicklag Type)
- Mounting: Fixed
- Manufacturer: Cutler Hammer (Eaton)
Specifications
- Part Number: QCHW2090
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QCHW
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679387498
- GTIN : 00786679387498
- Country of Origin : Dominican Republic
- Dimensions : 3.8 in x 2 in x 3.1 in (Length/Depth x Height x Width)
- Weight : 0.8
- Certification : UL Listed,CSA Certified
