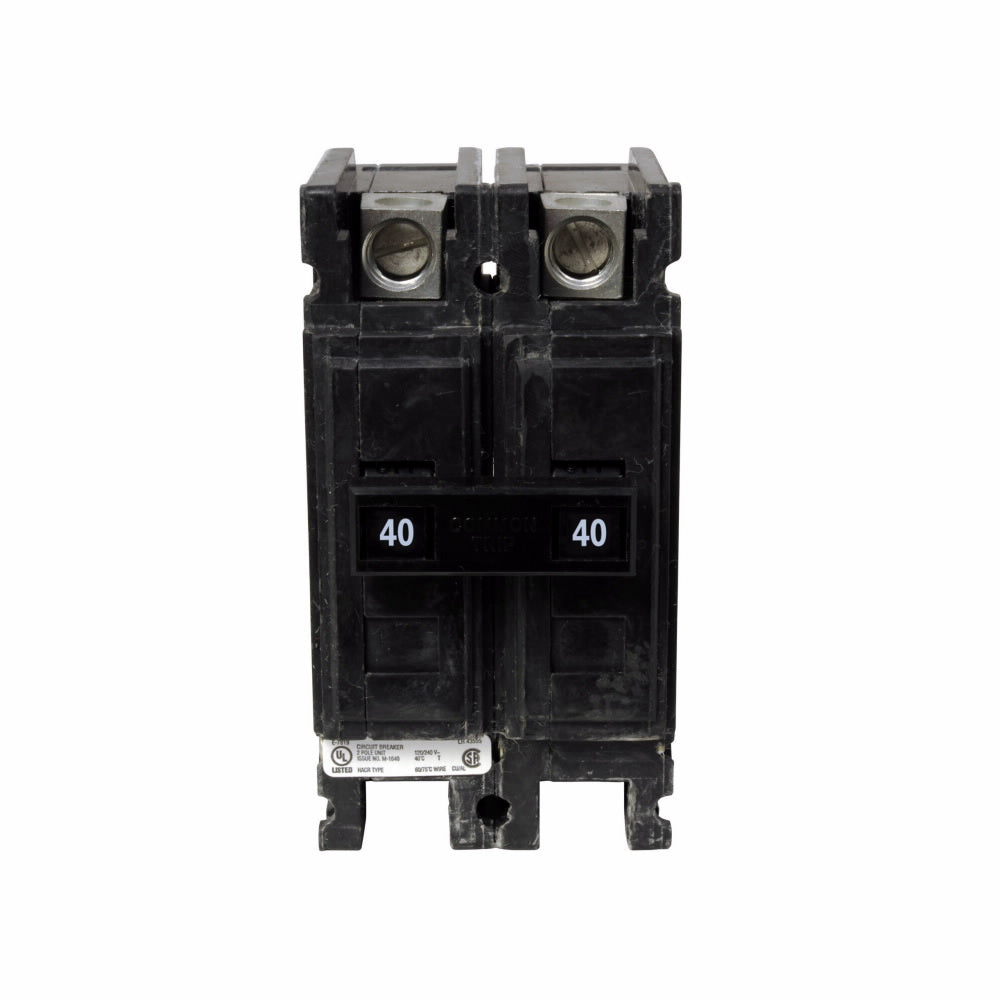

QCHW2040 - Cutler Hammer 40 Amp 240 Volt Two-Pole Thermal Magnetic Circuit Breaker

QCHW2040

QCHW2040 is a Cutler Hammer two-pole thermal magnetic circuit breaker rated for 40 amps and 120/240 volts.This industrial-grade circuit breaker features a 22 kA interrupt rating and cable-in/cable-out connections. It is part of the QCHW series, designed for reliable overcurrent protection with a fixed thermal/magnetic trip unit. The breaker is non-interchangeable and UL Listed and CSA Certified for safety and performance.

• Amperage Rating: 40 Amp
• Voltage Rating: 120/240 VAC
• Number of Poles: Two-Pole
• Interrupt Rating: 22 kAIC
• Trip Type: Thermal Magnetic (T268)
• Connection Type: Cable-in/Cable-out
• Series/Frame: QCHW
• Mounting Type: Panel Mount
• Certifications: UL Listed, CSA Certified
• Non-interchangeable design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCHW2040
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCHW
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679387443
• GTIN : 00786679387443
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.8
• Certification : UL Listed,CSA Certified
• Wire Size : AWG 14 to AWG 10, AWG 14 to AWG 4, Aluminum/Copper
