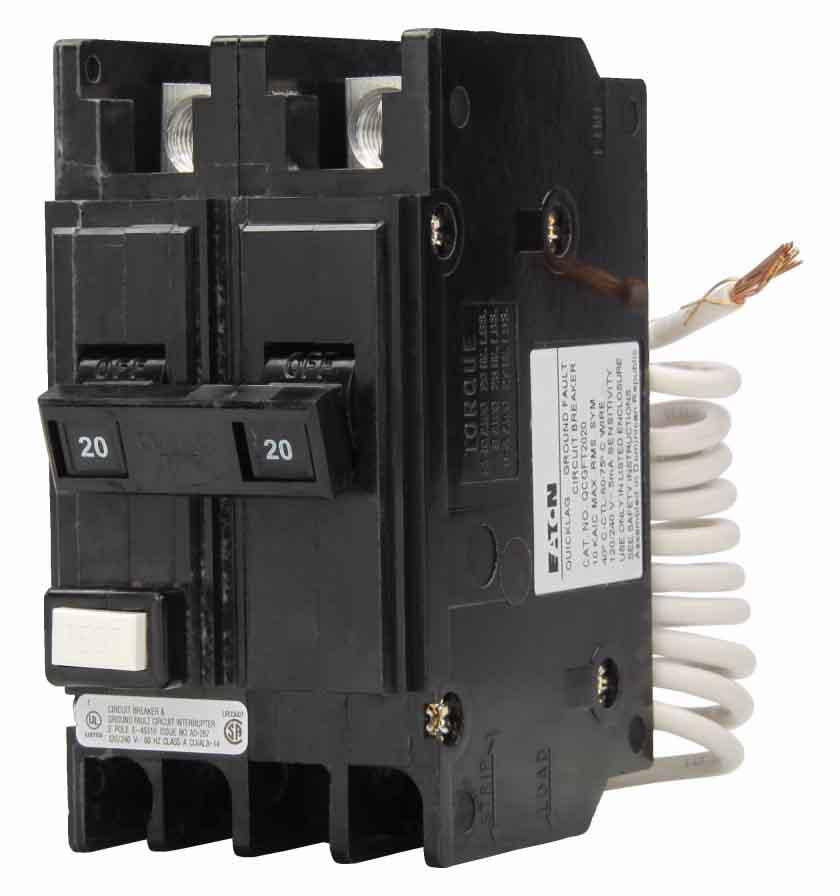

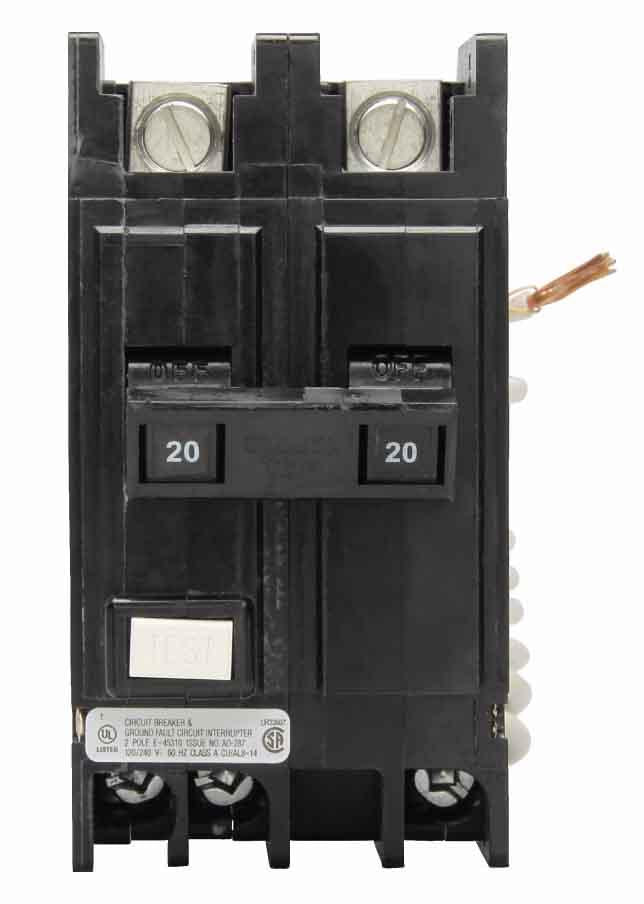

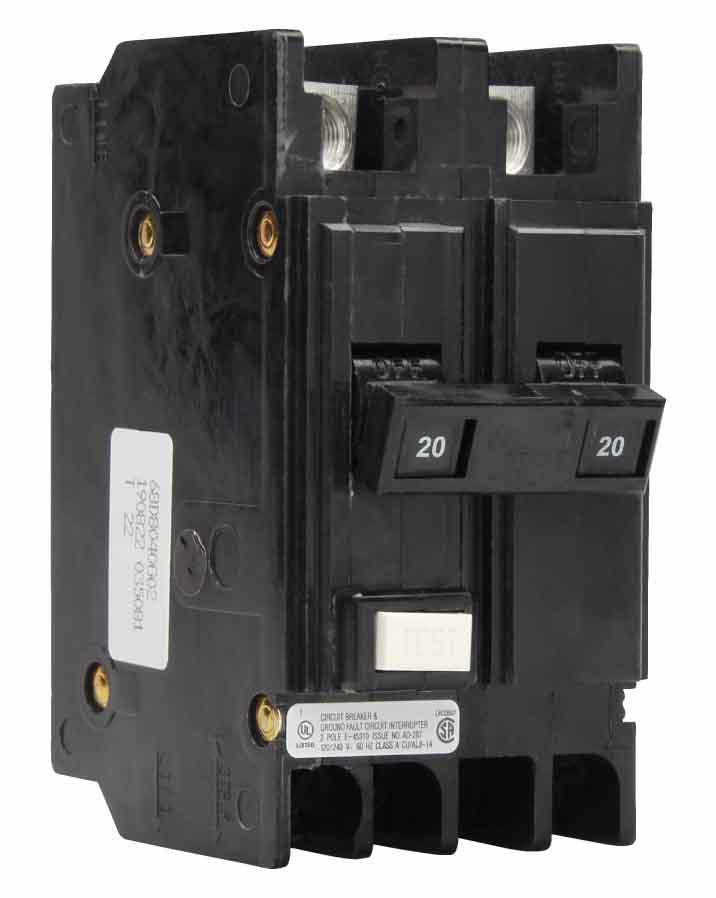

QCGFT2020 - Cutler Hammer 20A 120/240V 2-Pole Ground Fault Circuit Breaker Bolt-On

QCGFT2020

QCGFT2020 is a 20 Amp, 2-pole ground fault circuit breaker from Cutler Hammer designed for 120/240V applications with bolt-on mounting.This Cutler Hammer QCGFT2020 breaker features a 10 kA interrupt rating, common trip with 5 mA ground fault trip sensitivity, and supports #14-10 AWG copper and #12-10 AWG aluminum wiring. It is UL 489 and HACR rated for reliable protection and includes thermal magnetic trip functions.

Key Specifications
• Amperage: 20 A
• Voltage: 120/240 V
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC
• Trip Type: Common trip
• Trip Sensitivity: 5 mA ground fault
• Wire Size: #14-10 AWG Cu, #12-10 AWG Al
• Series/Frame: QB
• Certifications: UL 489, HACR rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCGFT2020
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QC Series
• Type : QCGFT
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676026611
• GTIN : 00786676026611
• Country of Origin : Dominican Republic
• Dimensions : 5.7 in x 3.1 in x 4.4 in (Length/Depth x Height x Width)
• Weight : 0.8
• Certification : UL 943,UL 489
• Wire Size : #14-4 AWG
