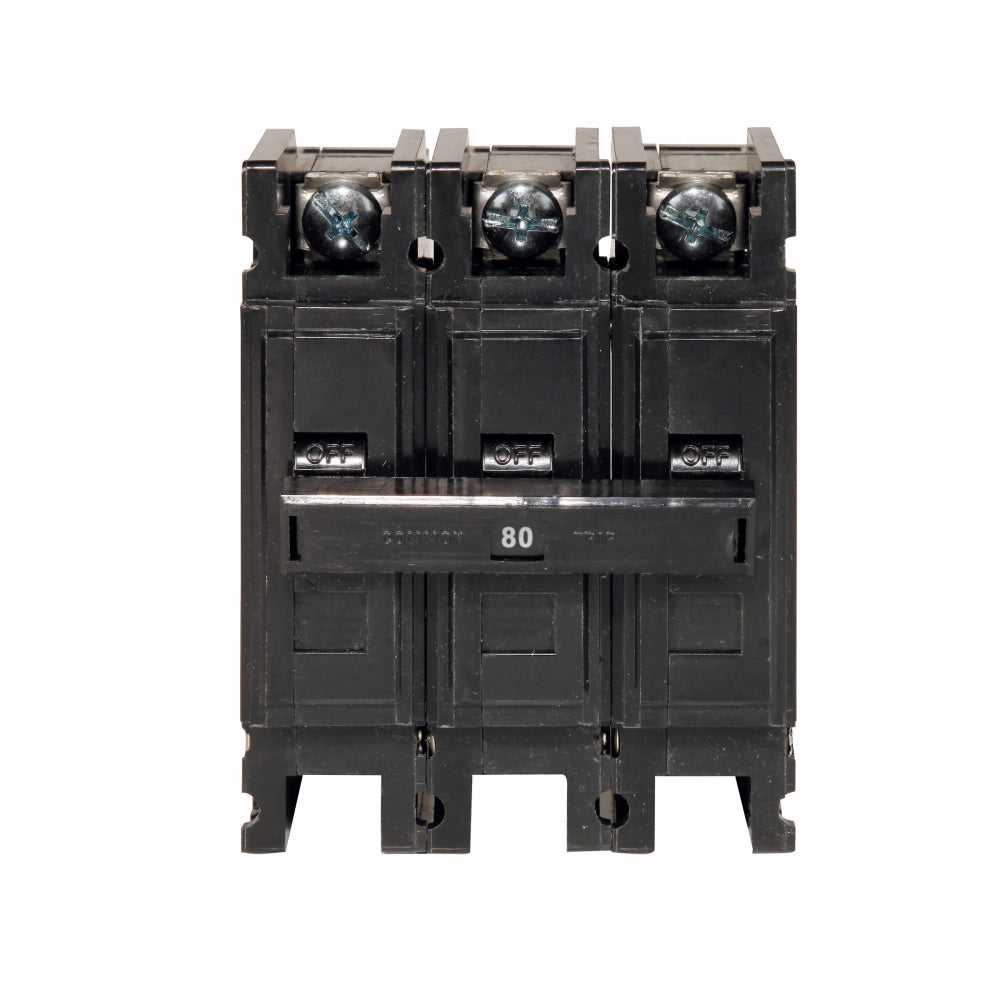

QC3080HT - Eaton 80A 240V 3-Pole Thermal Magnetic Circuit Breaker

QC3080HT

QC3080HT is an Eaton 3-pole thermal magnetic circuit breaker rated for 80 amps and 240 volts. It is designed for industrial and commercial electrical protection applications.QC3080HT features a thermal-magnetic trip unit, 10kA interrupting rating at 240V, and ring or spade lug terminals for cable-in/cable-out connections. This molded case circuit breaker provides reliable overload and short circuit protection with a compact 3-inch cube form factor. It is UL listed and CSA certified for safety and performance.

Key Specifications
• Amperage: 80 A
• Voltage Rating: 240 V AC
• Number of Poles: 3
• Interrupt Rating: 10 kA at 240 V
• Trip Unit: Thermal Magnetic
• Mounting Type: Cable-in/Cable-out with ring or spade lug terminals
• Series/Frame: QC
• Certifications: UL Listed, CSA Certified
• Dimensions: Approx. 3 in x 3 in x 3 in
• Weight: Approx. 1.05 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QC3080HT
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679009840
• GTIN : 00786679009840
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 3 in x 3.1 in (Length/Depth x Height x Width)
• Weight : 1.1
• Certification : UL Listed,CSA Certified
