Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QC3020H

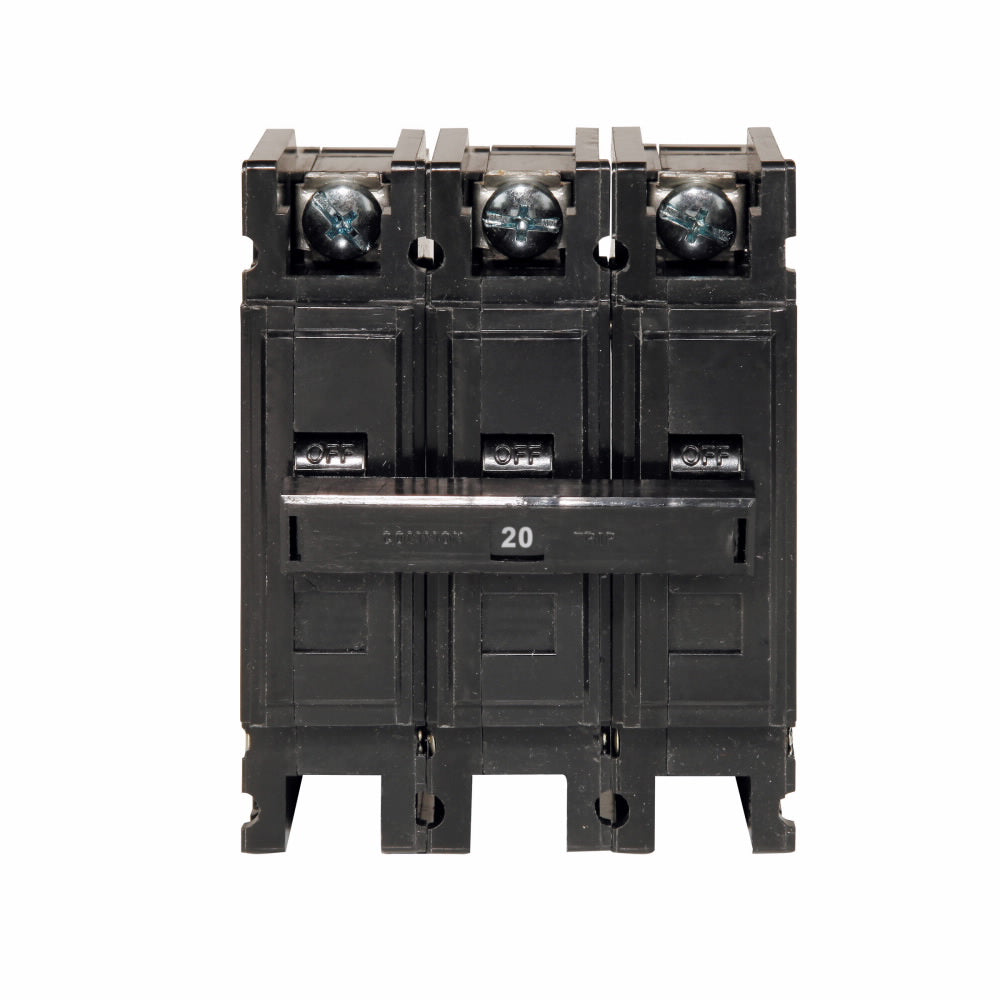

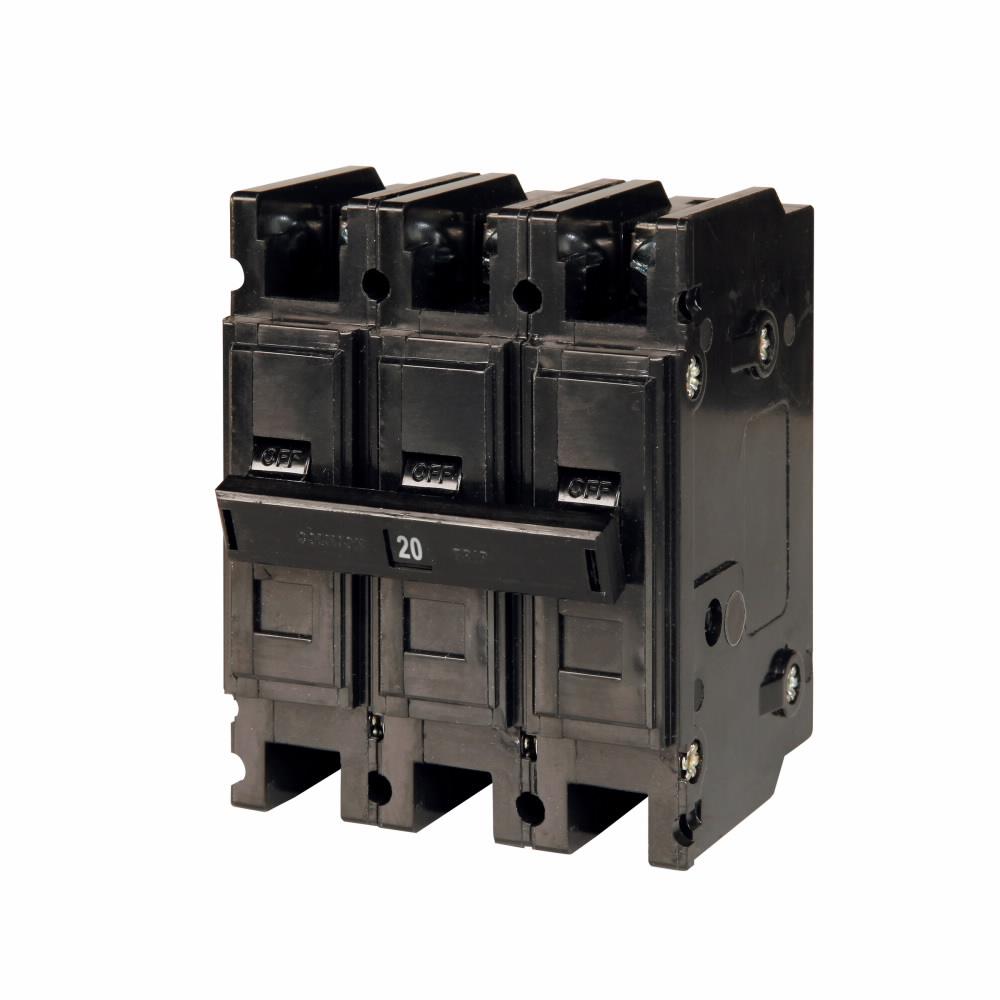

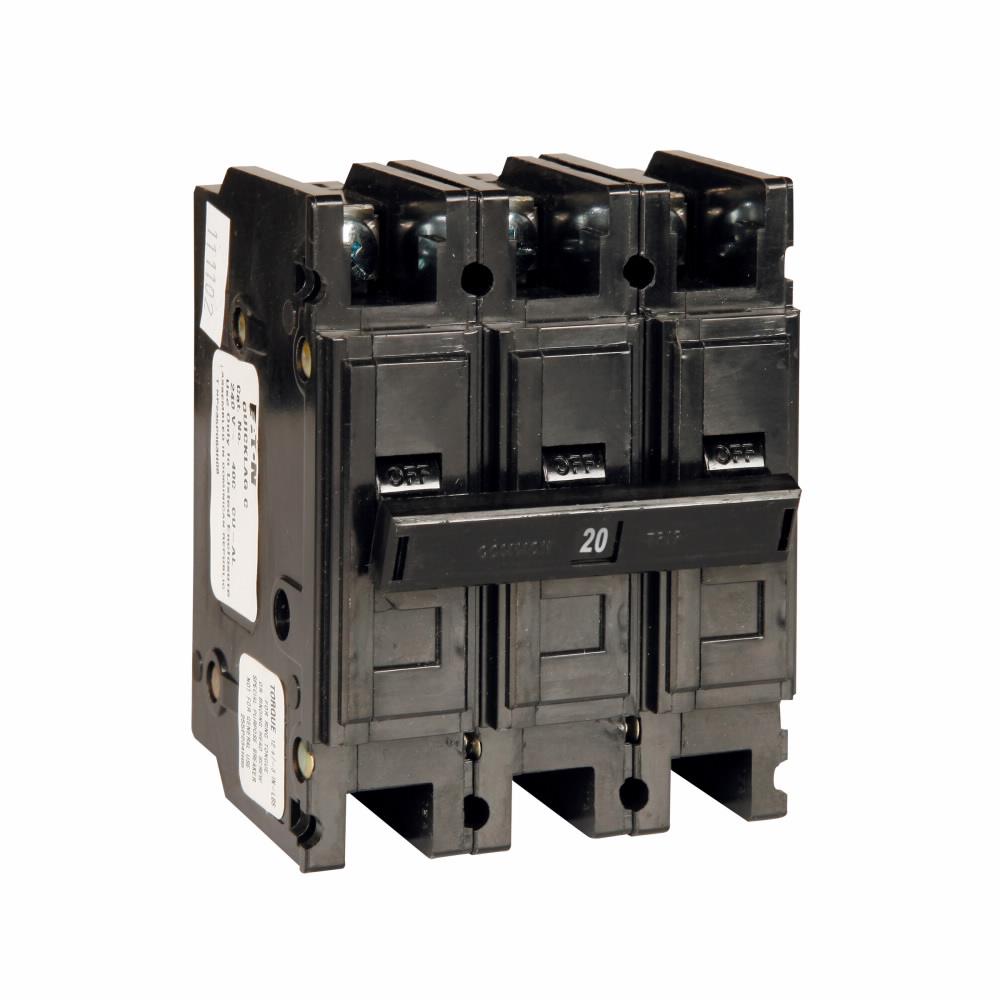

QC3020H is a Cutler Hammer 3-pole thermal magnetic circuit breaker rated for 20 amps and 240 volts, designed for industrial applications.This Eaton Cutler Hammer QC series circuit breaker features a fixed thermal-magnetic trip unit (T268) with a 10 kA interrupt rating, non-interchangeable design, and ring terminal connections. It is UL Listed and CSA Certified, suitable for 3-phase power distribution with a 240 V voltage rating and 20 A amperage. The breaker has a frame rating of 100 amps and provides reliable protection in industrial environments.
- Key Specifications
- Amperage: 20 A
- Voltage: 240 V
- Poles: 3
- Interrupt Rating: 10 kAIC
- Trip Unit: Thermal Magnetic (T268)
- Mounting Type: Feed Thru
- Series/Frame: QC
- Non-interchangeable
- Certifications: UL Listed, CSA Certified
- Connection: Ring Terminals
- Phase: 3
- Weight: 1 lb
Specifications
- Part Number: QC3020H
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QC
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78667924006
- GTIN : 00786679240069
- Country of Origin : Dominican Republic
- Dimensions : 3.8 in x 4.8 in x 2.9 in (Length/Depth x Height x Width)
- Weight : 1
- Certification : CSA Certified,UL Listed
