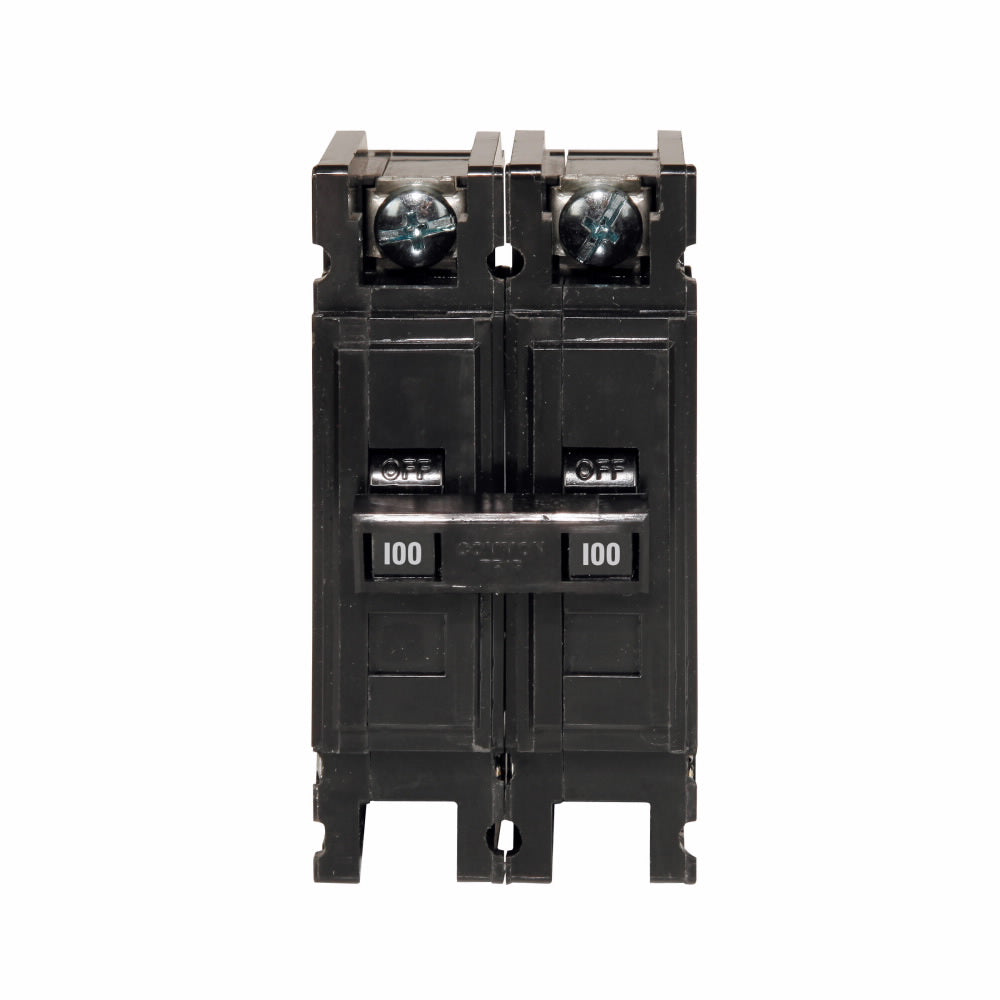

QC2100N - Cutler Hammer 100 Amp 2 Pole 120/240V Thermal Magnetic Circuit Breaker

QC2100N

QC2100N is a Cutler Hammer 2 pole thermal magnetic circuit breaker rated for 100 amps and 120/240 volts AC. It is designed for industrial applications requiring reliable circuit protection.QC2100N features a molded case with a 10kA interrupting rating at 120/240V, feed-thru connection type, and long-time plus instantaneous trip functions. It uses line and load side lug terminal connections and is part of the QC frame series.

• Amperage: 100 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Frame Type: QC
• Interrupt Rating: 10kAIC at 120/240V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Connection Type: Feed-Thru
• Terminal Connection: Line and Load Side Lug
• Dimensions (LxWxH): 3.9 x 2.1 x 4.7 inches
• Non-automatic reset
• Certifications: Industrial circuit breaker standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QC2100N
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QC
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : NA - No Overcurrent Protection
• Protection : Non-Automatic

Product Data

• UPC : 78667930998
• GTIN : 00786679309988
• Country of Origin : Dominican Republic
• Dimensions : 3.7 in x 2.1 in x 3.1 in (Length/Depth x Height x Width)
• Weight : 0.7
• Certification : UL Listed,CSA Certified
