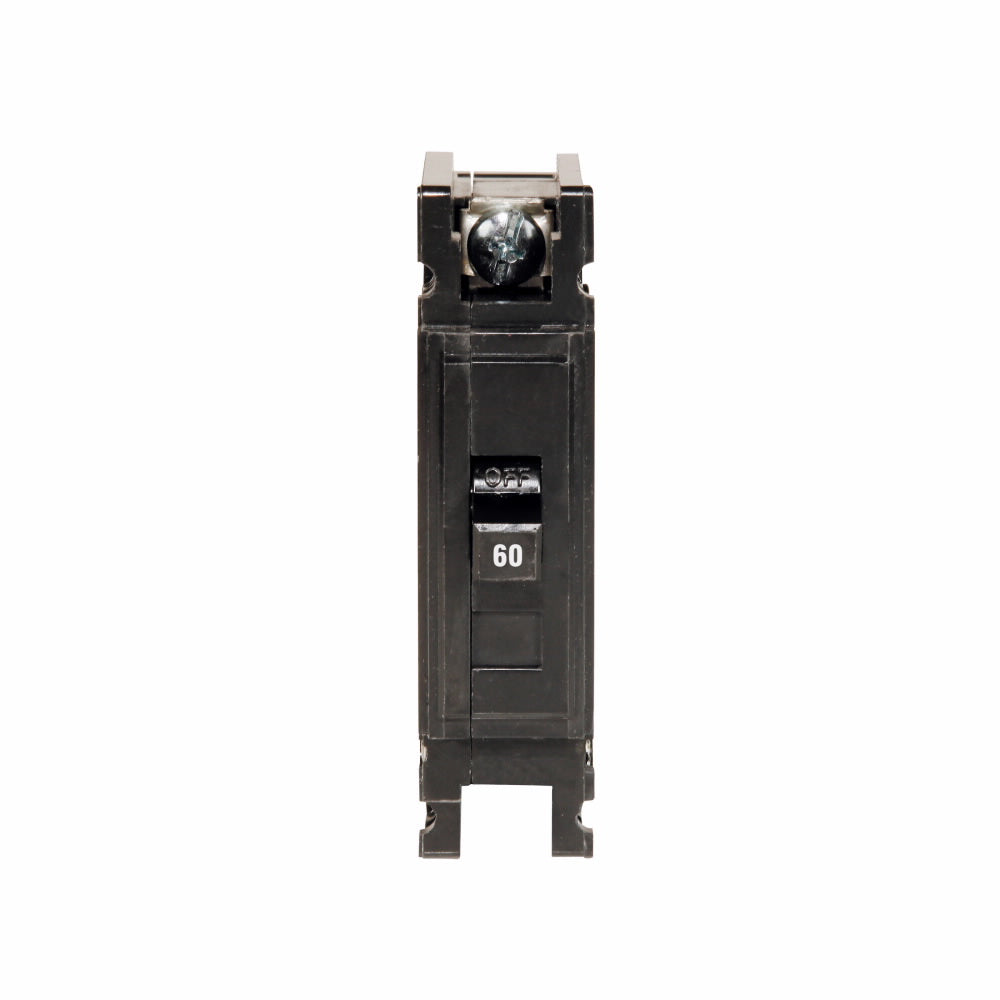

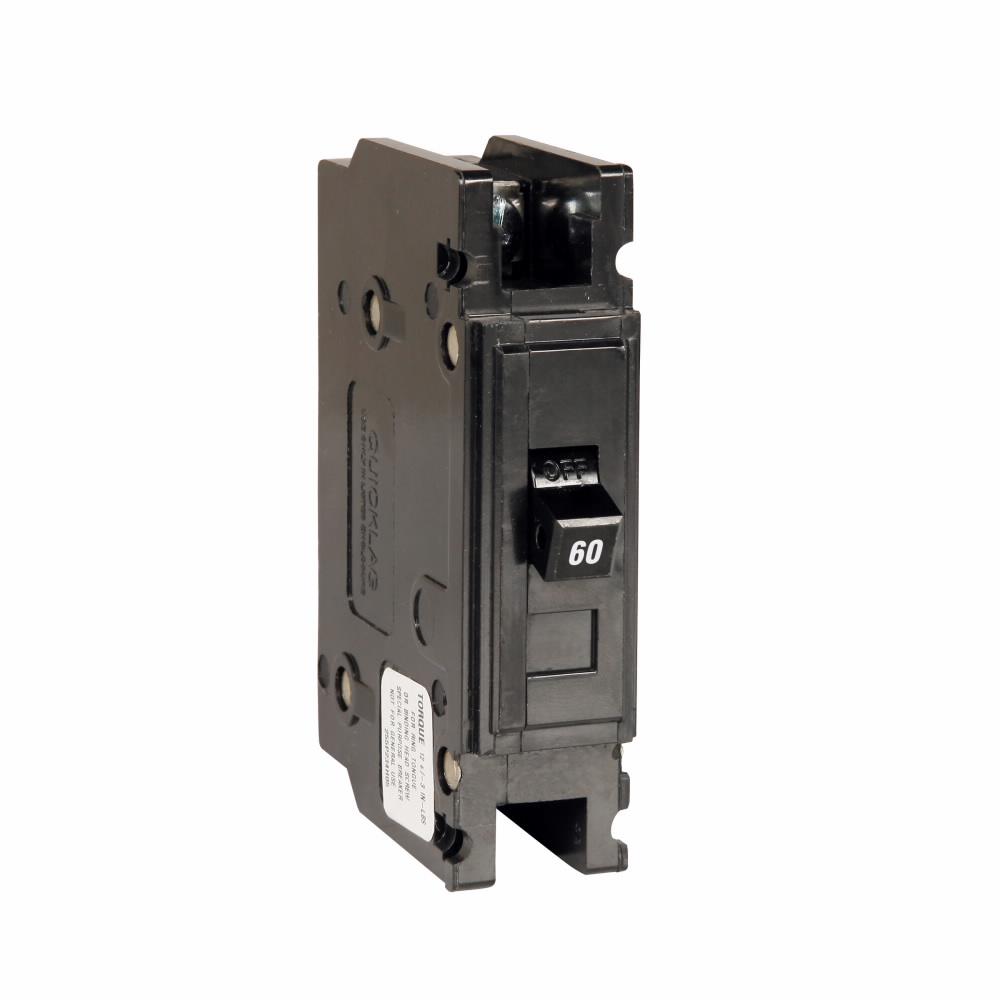

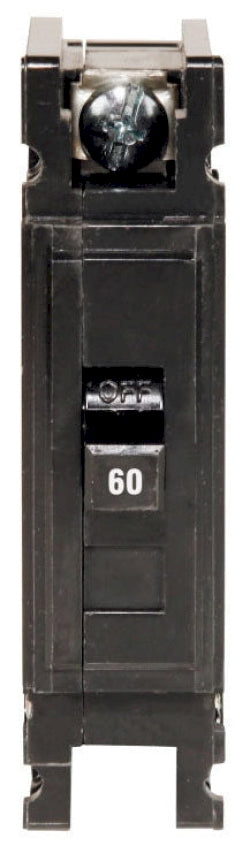

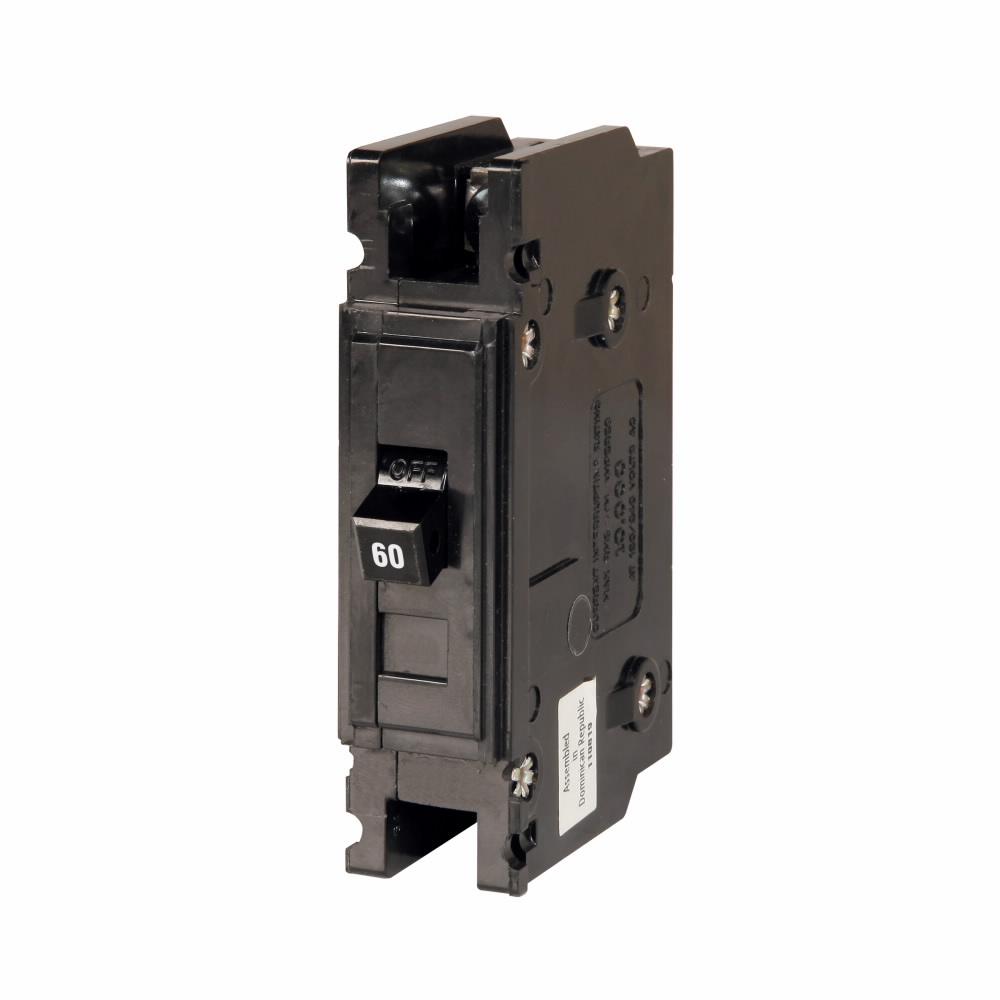

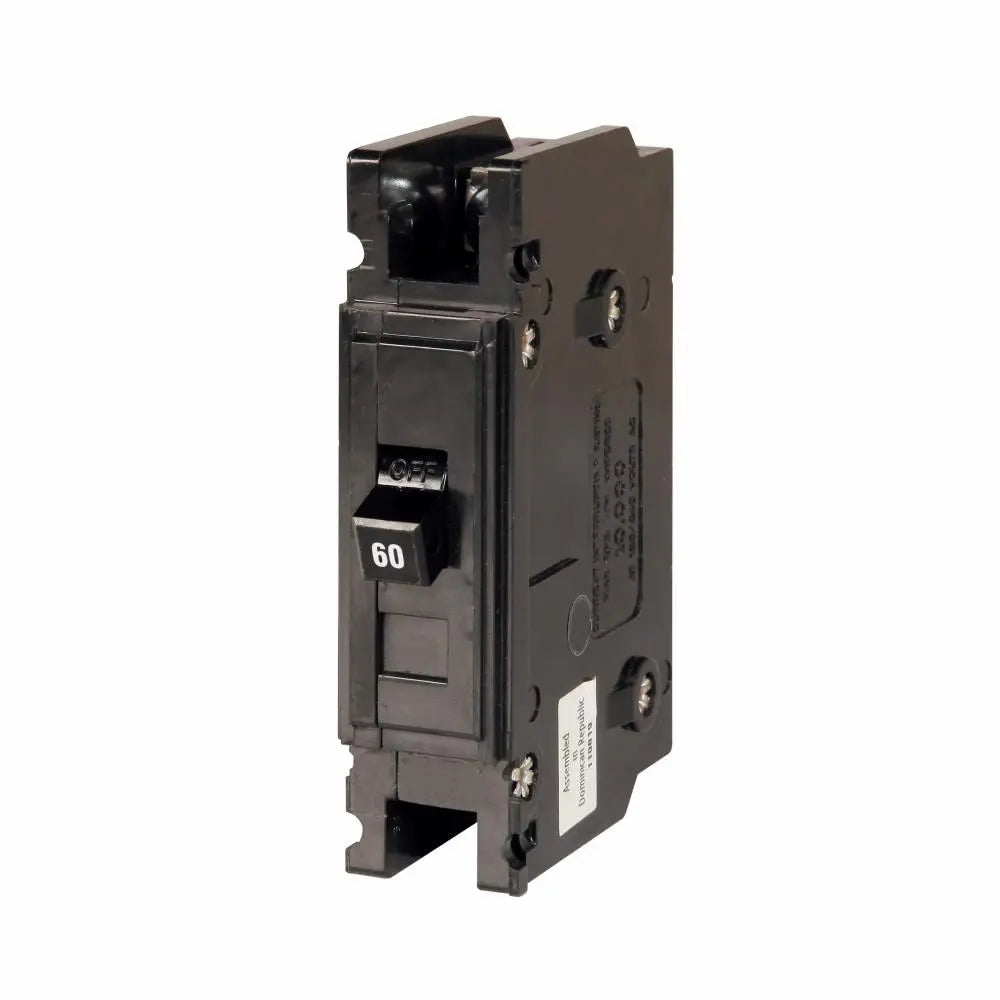

QC1060 - Cutler Hammer 60A 240V 1-Pole QC Series Thermal Magnetic Circuit Breaker, Cable-In/Cable-Out, 10kAIC, Panel Mount, UL/CSA

QC1060

QC1060 is a Cutler Hammer (Eaton) industrial circuit breaker designed for reliable protection in demanding applications.

This single-pole, thermal-magnetic circuit breaker features a 60A current rating, 120/240V voltage rating, and a 10kA interrupting capacity. It is part of the QC (Quicklag) series with cable-in/cable-out connections, fixed trip unit, and panel mounting. The QC1060 is certified to UL and CSA standards, ensuring compliance and safety for commercial and industrial use.

Key Specifications

• Part Number: QC1060
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 60A
• Voltage: 120/240V
• Poles: 1
• Mounting Type: Panel (face, base, or DIN rail)
• Interrupt Rating: 10,000A (10kAIC) at 120/240VAC
• Series/Frame: QC (Quicklag)
• Trip Unit: Fixed thermal-magnetic (T268)
• Connection: Cable-in/cable-out
• Terminal Type: Box terminal
• Certifications: UL Listed, CSA Certified
• Approvals: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QC1060
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QC
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679309124
• GTIN : 00786679309124
• Country of Origin : Dominican Republic
• Dimensions : 3.7 in x 4.8 in x 1.3 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : UL Listed,CSA Certified
