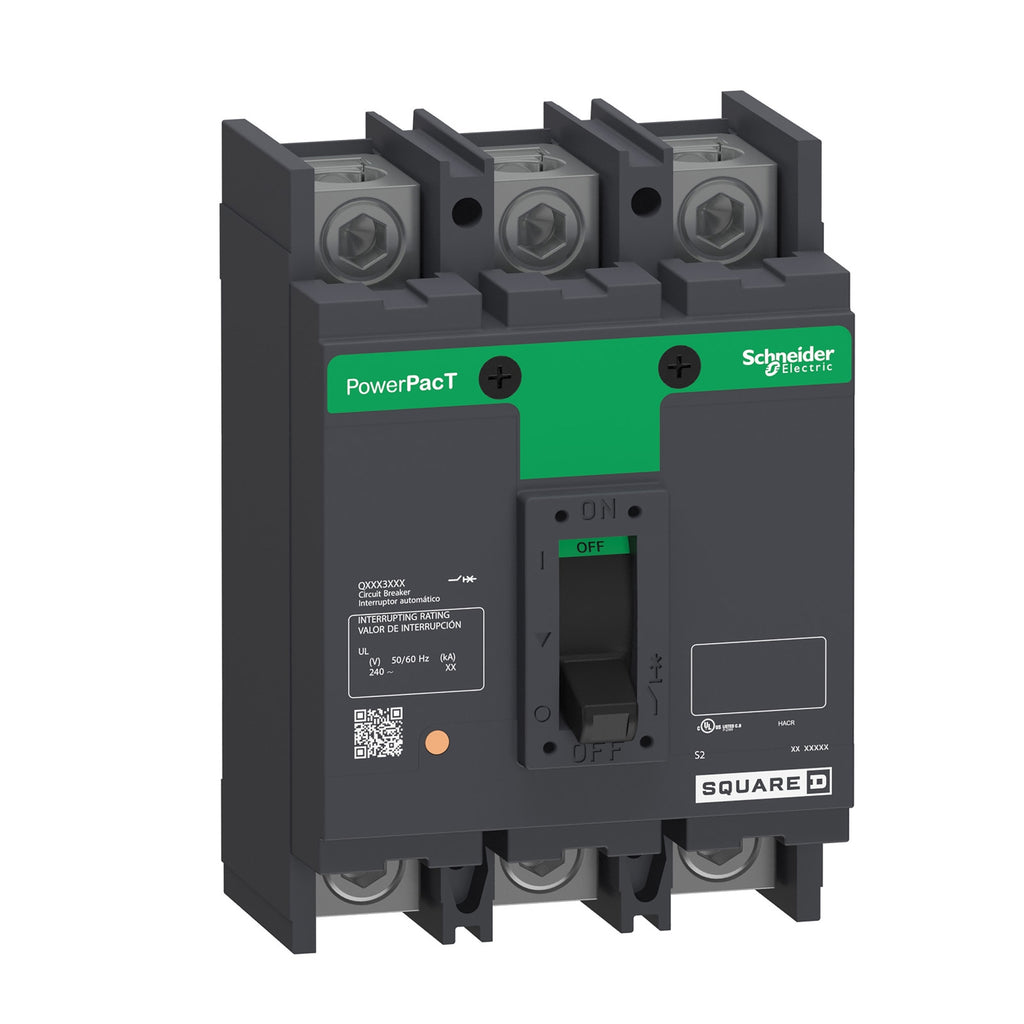

QBP32100TP - Square D PowerPact Q Frame 100A 3-Pole 240V Thermal-Magnetic Circuit Breaker

QBP32100TP

QBP32100TP is a Square D PowerPact Q Frame molded case circuit breaker designed for 3-pole, 100 ampere, 240 volt AC applications with thermal-magnetic trip unit.This circuit breaker features a 10kA interrupt rating at 240VAC, lug connections on the load side, and threaded studs with nuts on the line side. It is part of the PowerPact QBP sub-range and offers fixed thermal-magnetic protection for overload and short circuit. The breaker has a frame rating of 250A and is suitable for individual unit mounting on a plate.

Key Specifications
• Amperage: 100A
• Voltage Rating: 240VAC
• Poles: 3
• Interrupt Rating: 10kA at 240VAC
• Frame: PowerPact Q Frame 250
• Trip Unit: Thermal-Magnetic (fixed)
• Mounting Type: Individual unit mount on plate
• Line Side Connection: Threaded studs with nuts
• Load Side Connection: Lug
• Protection: Overload and short circuit fixed settings
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBP32100TP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Meter-Pak
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901415480
• GTIN : 00785901000000
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.531
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
