Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QBM32225

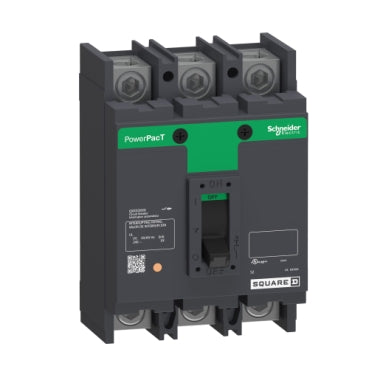

QBM32225 is a Schneider Electric PowerPacT Q-Frame molded case circuit breaker designed for overcurrent protection and switching in 240VAC three-phase systems. This unit-mount breaker delivers reliable thermal-magnetic protection with a 225 Amp continuous rating and standard 80% duty cycle performance. The QBM32225 features lugs on both line and load sides for secure electrical connections and includes an operating handle with manual trip capability for testing and operational control. Key Specifications
- Manufacturer: Schneider Electric
- Amperage: 225 Amps
- Voltage: 240VAC
- Poles: 3-Pole
- Frame Type: Q-Frame
- Mounting: Unit Mount
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 10kA at 240VAC (B Interrupt Code)
- Continuous Current Rating: 80%
- Certifications: UL 489, CSA, ANCE, IEC
- Electrical Connection: Lugs (Line and Load)
- Dimensions: 6.47"H x 4.5"W x 3.93"D
Specifications
- Part Number: QBM32225
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBM
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
