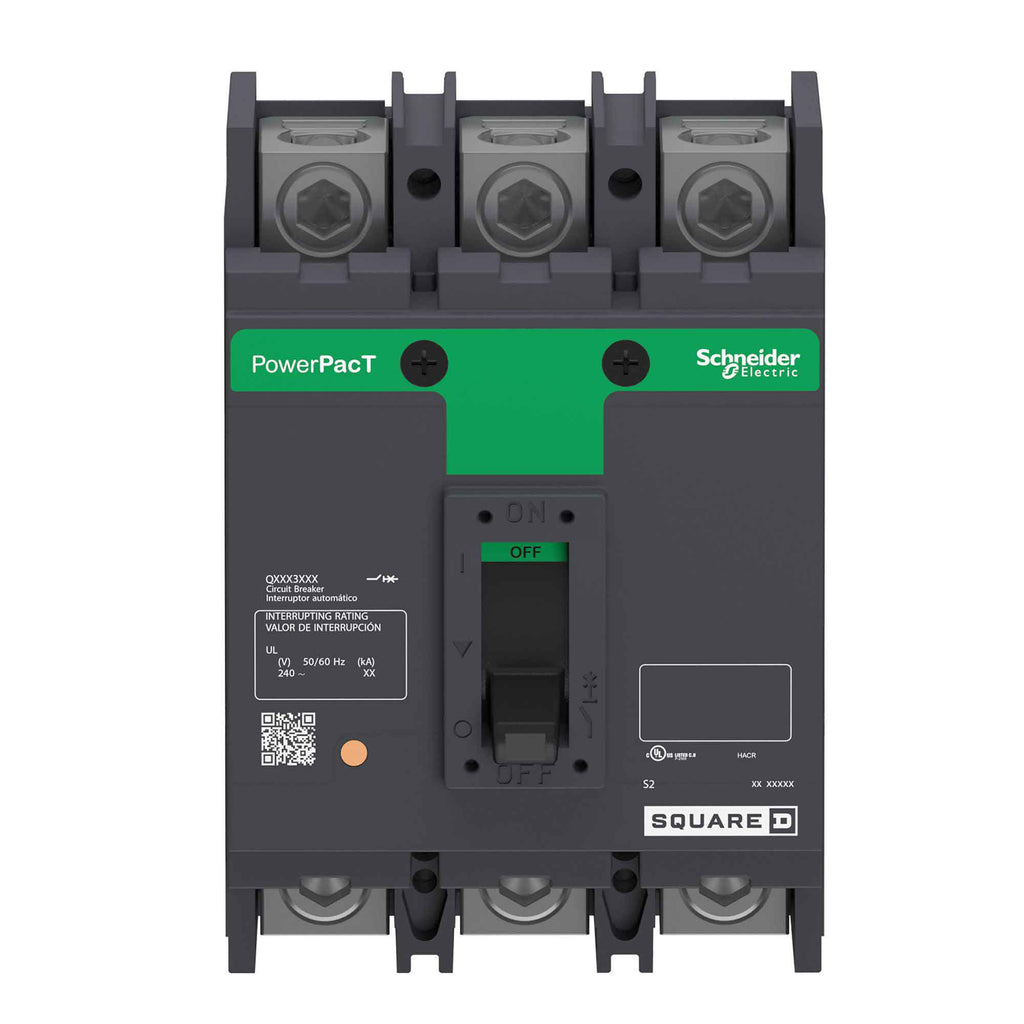

QBM32150TN - Square D 150A 240V 3 Pole Bolt-On Molded Case Circuit Breaker Q Frame

QBM32150TN

QBM32150TN is a Square D 3 pole, 150 amp, 240 volt bolt-on molded case circuit breaker from the Powerpact Q Frame family.This thermal magnetic circuit breaker features long-time and instantaneous trip functions, a 10kA interrupting rating at 240VAC, and is UL, CSA, and CE certified. Designed for unit mounting, it provides reliable protection with a compact size of 3.93 x 4.5 x 6.47 inches and weighs approximately 4.62 pounds.

• Amperage: 150A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA @ 240V
• Frame/Series: Powerpact Q Frame
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: UL, CSA, CE
• Dimensions (HxWxD): 3.93 x 4.5 x 6.47 inches
• Weight: 4.62 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBM32150TN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBM
• Voltage : 240
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901834878
• GTIN : 00785901834878
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.6
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
